Square D™

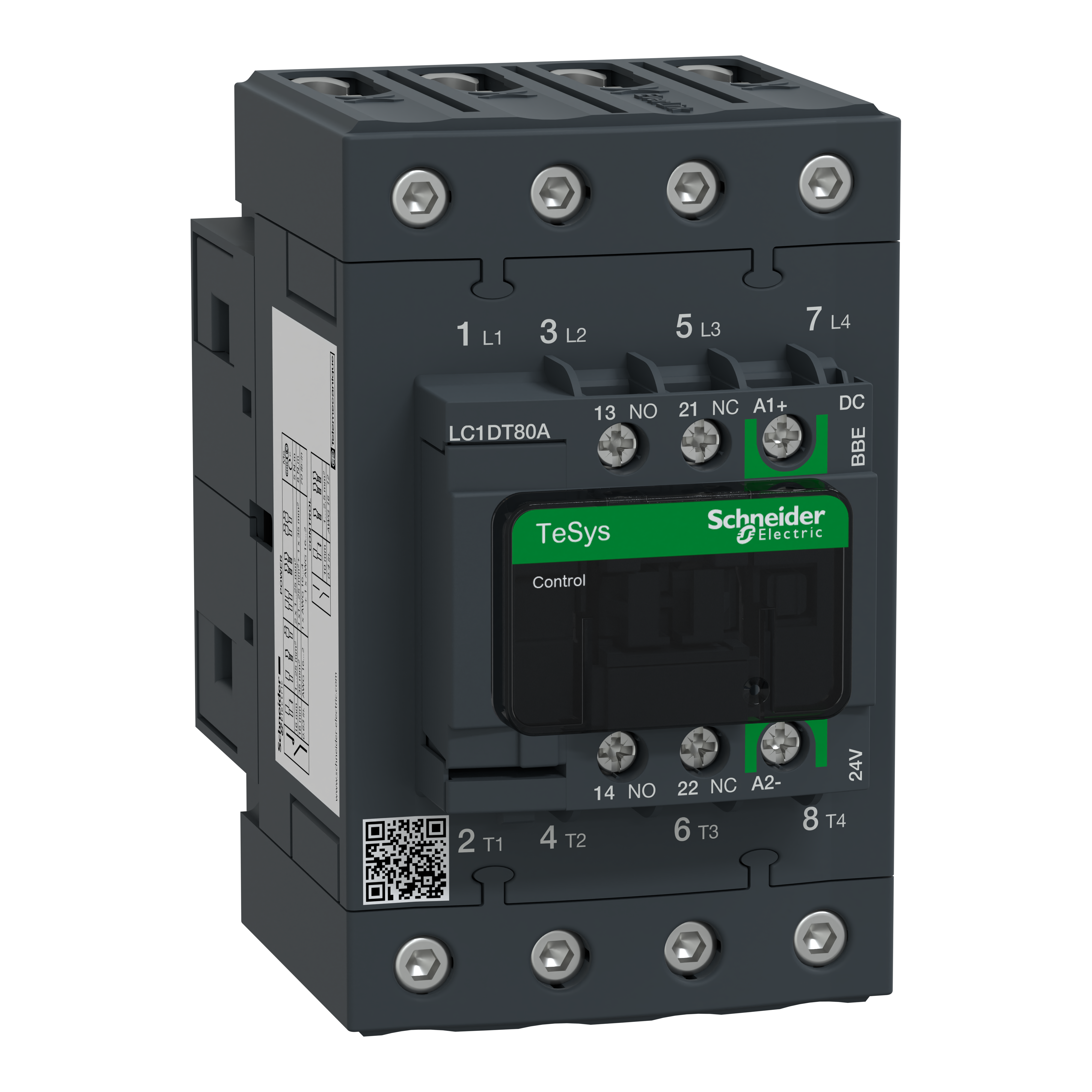

Schneider Electric LC1DT80ABBE LC1 Contactor, 24 v coil, 10 80, 4NO contact, 4 poles
Square D™
Schneider Electric LC1DT80ABBE LC1 Contactor, 24 v coil, 10 80, 4NO contact, 4 poles
SKUPDW~13031362
MFGR #LC1DT80ABBE
Your Cost: $474.50/ea
List: Schneider Electric LC1DT80ABBE, Contactor, LC1, 24 Coil, 10; 80 Maximum Load Current, 4 Pole, 25 to 400 Frequency, 10.2 Wattage, Mechanically Linked/Mirror Contact, 4NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -4 to 60 , 60 to 70 with derating deg C Operating, Plate/Rail Mounting, Gray/Green, 122 mm H x 70 mm W x 120 mm D Dimensions
Schneider Electric LC1DT80ABBE, Contactor, LC1, 24 Coil, 10; 80 Maximum Load Current, 4 Pole, 25 to 400 Frequency, 10.2 Wattage, Mechanically Linked/Mirror Contact, 4NO Contact Configuration, 1 NO + 1 NC Auxiliary Contacts, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -4 to 60 , 60 to 70 with derating deg C Operating, Plate/Rail Mounting, Gray/Green, 122 mm H x 70 mm W x 120 mm D Dimensions
Application Resistive load ARRA Compliant N Buy American Compliant N Catalog Number LC1DT80ABBE Country of Origin US Currency USD EU RoHS Indicator Y Gross Weight per Pack Metric 1.22 Gross Weight UOM Metric kg UNSPSC 39121529 Brand Square D™ Manufacturer Schneider Electric Type CONTACTOR Alternate Catalog Number LC1DT80ABBE Contact Configuration 1 NO + 1 NC;4 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 Harmonization Tariff Schedule Code 8536410045 Item Group 22357 Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=459617558&lang=en-us Mounting Plate;Rail Returnable N Sub Brand LC1D Warranty Description Contractual Warranty:18 months
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Application | Resistive load |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1DT80ABBE |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight per Pack Metric | 1.22 |
| Gross Weight UOM Metric | kg |
| UNSPSC | 39121529 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Type | CONTACTOR |
| Alternate Catalog Number | LC1DT80ABBE |
| Contact Configuration | 1 NO + 1 NC;4 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Harmonization Tariff Schedule Code | 8536410045 |
| Item Group | 22357 |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=459617558&lang=en-us |
| Mounting | Plate;Rail |
| Returnable | N |
| Sub Brand | LC1D |
| Warranty Description | Contractual Warranty:18 months |
