Schneider Electric

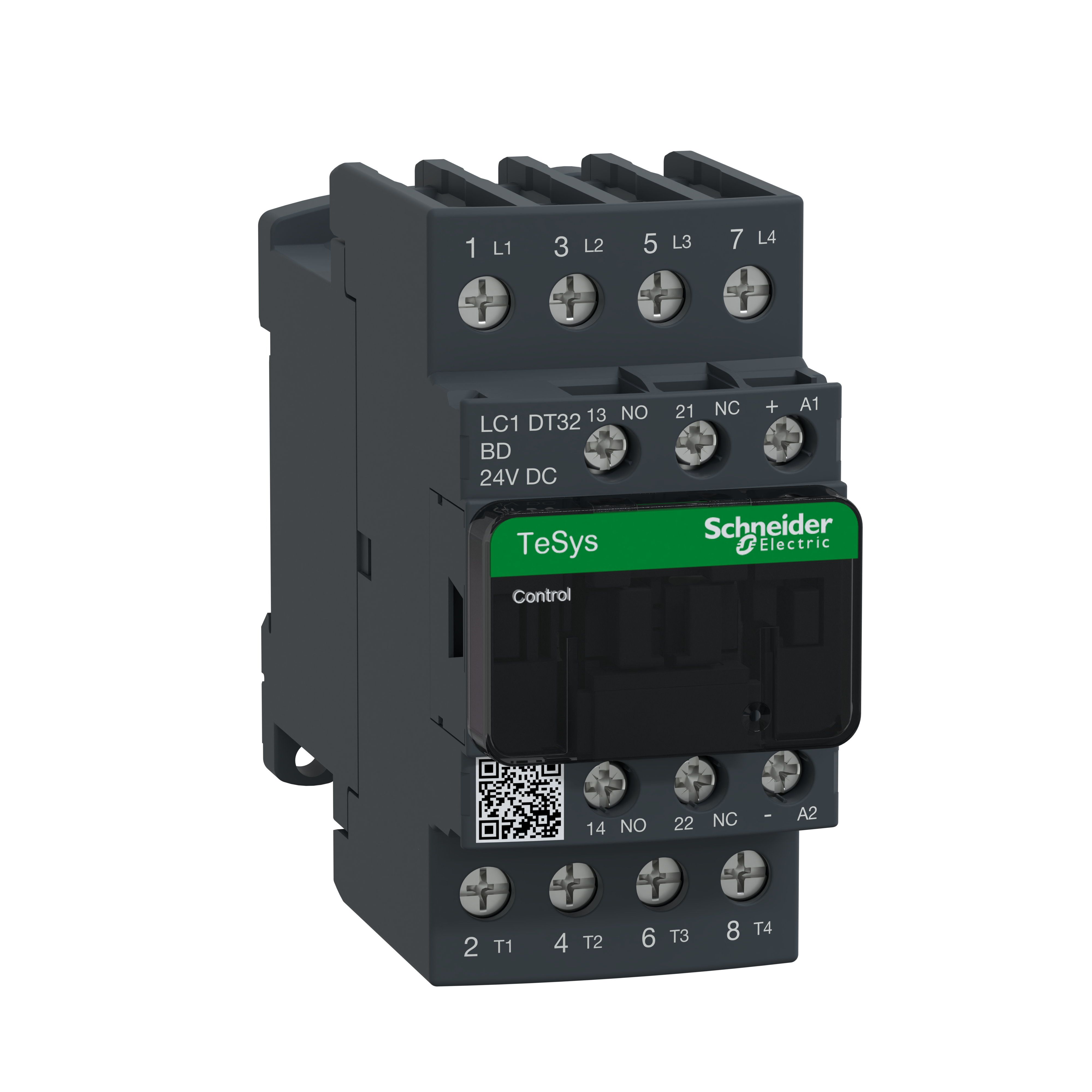

Schneider Electric LC1DT32BD CONTACTOR 600VAC 32AM
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric LC1DT32BD CONTACTOR 600VAC 32AM
SKU248907
MFGR #LC1DT32BD
Your Cost: $195.07/ea
Schneider Electric LC1DT32BD CONTACTOR 600VAC 32AMP IEC + OPTIONS,24 V DC,32 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4 NO,4P,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC1DT32BD CONTACTOR 600VAC 32AMP IEC + OPTIONS,24 V DC,32 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4 NO,4P,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC1DT32BD Application Resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1DT32BD Coil Power Rating 5.4-5.4 W 20 A°C Coil Voltage 24 VDC Contact Configuration 4NO Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-32 A 60 A°C POWER CIRCUIT Country of Origin US Currency USD Dimensions 91 mm H x 45 mm W x 107 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 25 to 400 Hz Gross Volume Per Pack 45.41 Gross Volume per Pack Metric 744.13 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.3900 lb Gross Weight per Pack Metric 630.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536410045 Height 5.7000 in Height [Metric] 5.5000 cm Item Group 22355 Length 11.9000 in Length [Metric] 12.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620474&lang=en-us Maximum Load Current 32 A Mounting RAIL-PLATE Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 4 Operating Cycles 3600 Cycles/hr Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 107 MM,45 MM,91 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GOST-LROS (LLOYDS REGISTER OF SHIPPING)-CSA-UL-DNV-RINA-GL-CCC-BV,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TESYS D Terminal Type Screw/Clamp Type Non-Reversing UNSPSC 39121529 UPC 11 78590150324 UPC 12 785901503248 Warranty Description Contractual Warranty:18 months Wattage 2.5 W AC-1 Width 9.6000 in Width [Metric] 9.5000 cm Resistive load BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor simplify your maintenance services with 90% less references needed TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR All contactors include built-in auxiliary contacts All screw connections have IP20 finger safe terminals with both North American and international terminal markings Designed for perfect integration in control systems Can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1DT32BD |
| Application | Resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1DT32BD |
| Coil Power Rating | 5.4-5.4 W 20 A°C |
| Coil Voltage | 24 VDC |
| Contact Configuration | 4NO |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-32 A 60 A°C POWER CIRCUIT |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 91 mm H x 45 mm W x 107 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 25 to 400 Hz |
| Gross Volume Per Pack | 45.41 |
| Gross Volume per Pack Metric | 744.13 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.3900 lb |
| Gross Weight per Pack Metric | 630.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536410045 |
| Height | 5.7000 in |
| Height [Metric] | 5.5000 cm |
| Item Group | 22355 |
| Length | 11.9000 in |
| Length [Metric] | 12.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620474&lang=en-us |
| Maximum Load Current | 32 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 4 |
| Operating Cycles | 3600 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 107 MM,45 MM,91 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GOST-LROS (LLOYDS REGISTER OF SHIPPING)-CSA-UL-DNV-RINA-GL-CCC-BV,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS D |
| Terminal Type | Screw/Clamp |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 78590150324 |
| UPC 12 | 785901503248 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 2.5 W AC-1 |
| Width | 9.6000 in |
| Width [Metric] | 9.5000 cm |
| Resistive load |
| BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger safe terminals with both North American and international terminal markings |
| Designed for perfect integration in control systems |
| Can be used to create motor starters for any type of application |
