Schneider Electric

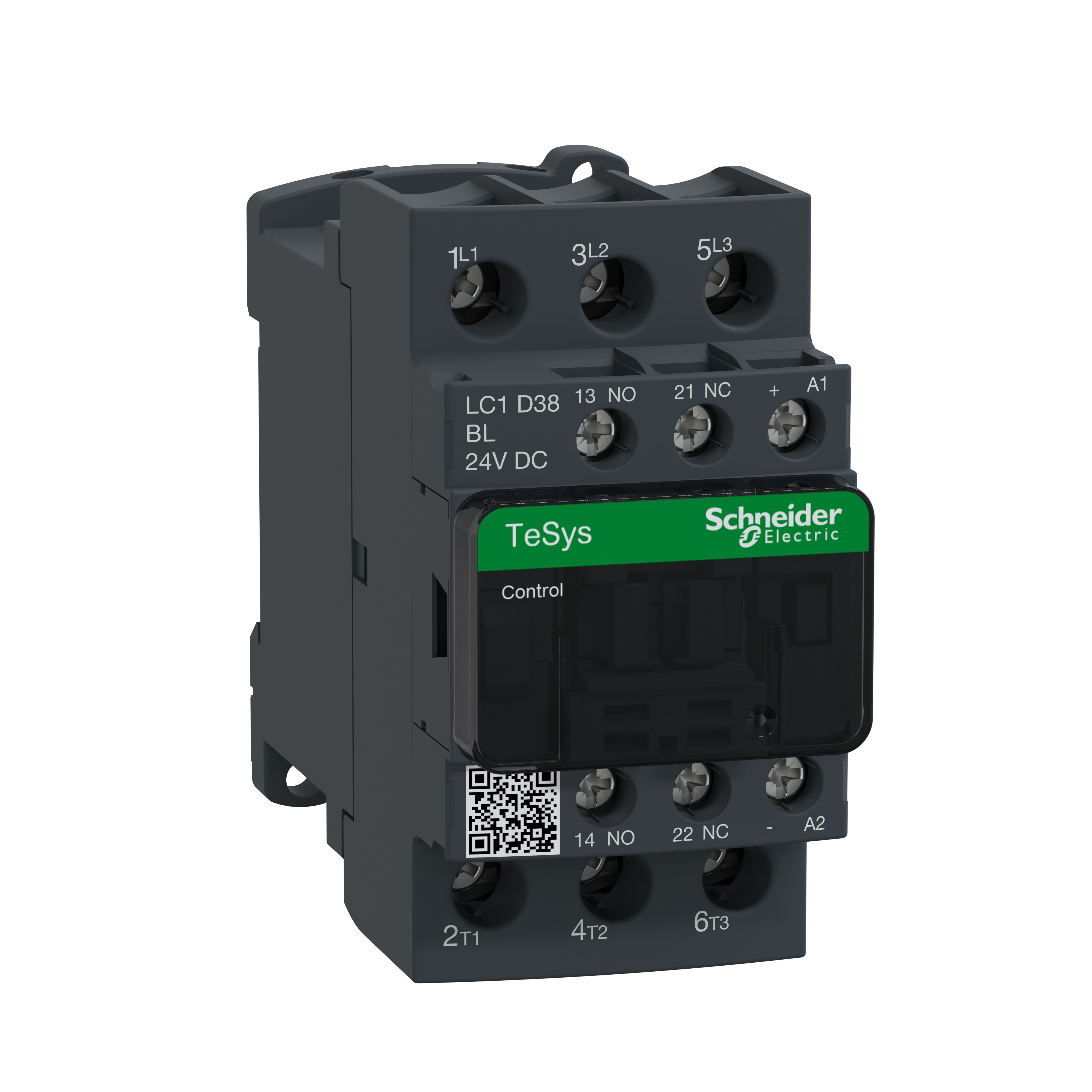

Schneider Electric LC1D38BL CONTACTOR 575VAC 38AMP
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric LC1D38BL CONTACTOR 575VAC 38AMP
SKU365938
MFGR #LC1D38BL
Call For Price
List: Schneider Electric LC1D38BL CONTACTOR 575VAC 38AMP IEC +OPTIONS,24 V DC,3 NO,3P,50 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,plate-rail
Schneider Electric LC1D38BL CONTACTOR 575VAC 38AMP IEC +OPTIONS,24 V DC,3 NO,3P,50 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,plate-rail
Alternate Catalog Number LC1D38BL Application Motor control;resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D38BL Coil Power Rating 25 hp at 600 VAC Coil Voltage 24 VDC Contact Configuration 3NO Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-50 A 60 A°C POWER CIRCUIT Country of Origin SG Currency USD Dimensions 85 mm H x 45 mm W x 101 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 25 to 400 Hz Gross Volume Per Pack 31.68 Gross Volume per Pack Metric 519.14 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.9000 lb Gross Weight per Pack Metric 588.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.5000 in Height [Metric] 5.0000 cm Item Group 22354 Length 12.0000 in Length [Metric] 11.2000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1471903&lang=en-us Maximum Load Current 38/50 A Mounting RAIL-PLATE Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 3600 Cycles/hr Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 101 MM,45 MM,85 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GOST-UL-LROS (LLOYDS REGISTER OF SHIPPING)-CCC-DNV-GL-CSA-RINA-BV,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TESYS D Substitute Product Catalog Number LAD9ET1S Terminal Type Screw/Clamp Type Non-Reversing UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Wattage 5 W AC-1-3 W AC-3 W;W Width 9.5000 in Width [Metric] 9.2000 cm Motor control;resistive load 10 HP 230/240 V AC 50/60 HZ 3 PHASE-10 HP 200/208 V AC 50/60 HZ 3 PHASE-5 HP 240 V AC 50/60 HZ 1 PHASE-20 HP 480 V AC 50/60 HZ 3 PHASE-25 HP 600 V AC 50/60 HZ 3 PHASE,BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor simplify your maintenance services with 90% less references needed TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR All contactors include built-in auxiliary contacts All screw connections have IP20 finger safe terminals with both North American and international terminal markings Designed for perfect integration in control systems Can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D38BL |
| Application | Motor control;resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D38BL |
| Coil Power Rating | 25 hp at 600 VAC |
| Coil Voltage | 24 VDC |
| Contact Configuration | 3NO |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-50 A 60 A°C POWER CIRCUIT |
| Country of Origin | SG |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 101 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 25 to 400 Hz |
| Gross Volume Per Pack | 31.68 |
| Gross Volume per Pack Metric | 519.14 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.9000 lb |
| Gross Weight per Pack Metric | 588.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.5000 in |
| Height [Metric] | 5.0000 cm |
| Item Group | 22354 |
| Length | 12.0000 in |
| Length [Metric] | 11.2000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1471903&lang=en-us |
| Maximum Load Current | 38/50 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 3600 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 101 MM,45 MM,85 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GOST-UL-LROS (LLOYDS REGISTER OF SHIPPING)-CCC-DNV-GL-CSA-RINA-BV,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS D |
| Substitute Product Catalog Number | LAD9ET1S |
| Terminal Type | Screw/Clamp |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 5 W AC-1-3 W AC-3 W;W |
| Width | 9.5000 in |
| Width [Metric] | 9.2000 cm |
| Motor control;resistive load |
| 10 HP 230/240 V AC 50/60 HZ 3 PHASE-10 HP 200/208 V AC 50/60 HZ 3 PHASE-5 HP 240 V AC 50/60 HZ 1 PHASE-20 HP 480 V AC 50/60 HZ 3 PHASE-25 HP 600 V AC 50/60 HZ 3 PHASE,BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger safe terminals with both North American and international terminal markings |
| Designed for perfect integration in control systems |
| Can be used to create motor starters for any type of application |
