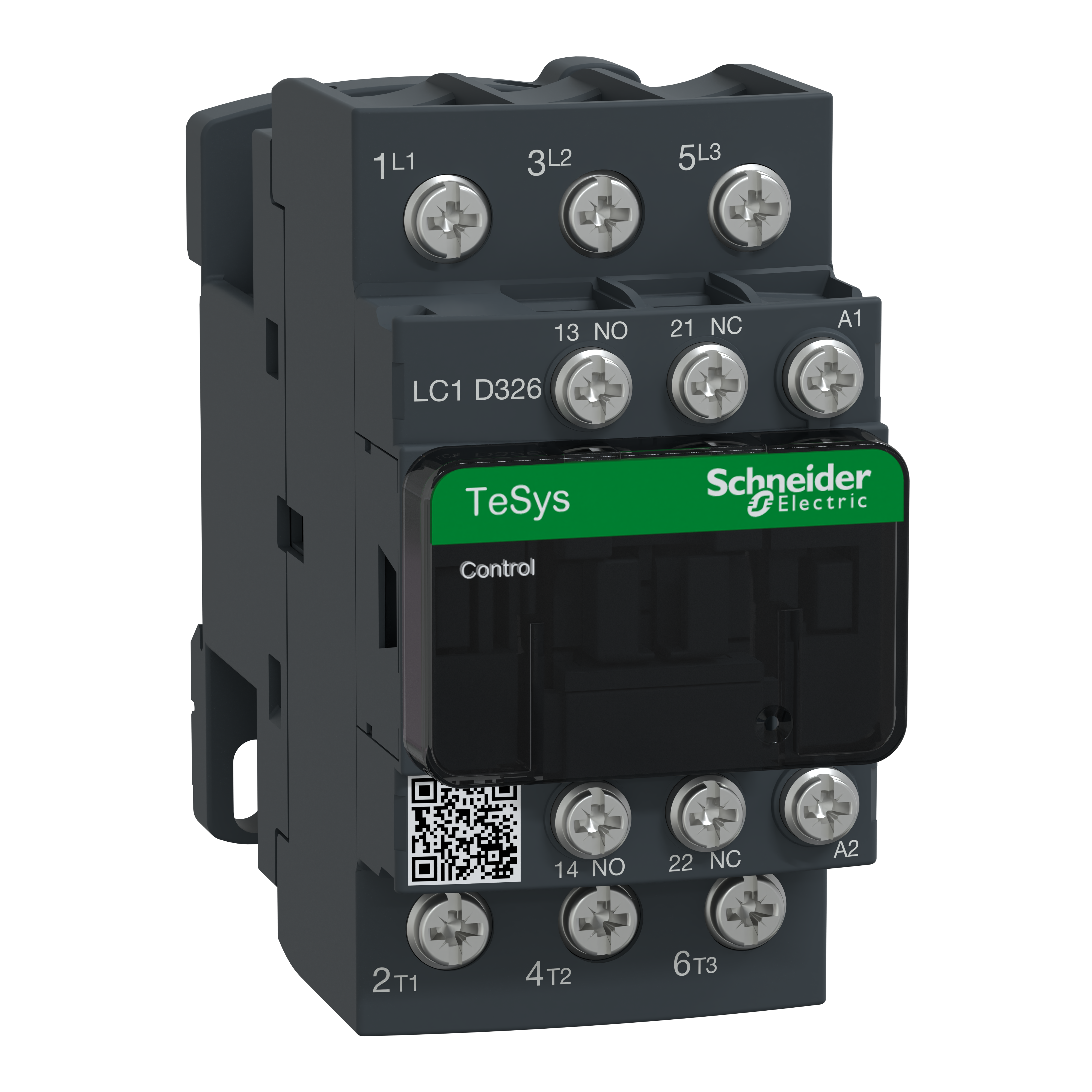

Schneider Electric LC1D326G7 CONTACTOR 600VAC 32AM
Custom_Product_Images_Illustration
Schneider Electric LC1D326G7 CONTACTOR 600VAC 32AM
SKU718386
MFGR #LC1D326G7
Call For Price
List: Schneider Electric LC1D326G7 CONTACTOR 600VAC 32AMP IEC +OPTIONS,120 V AC 50/60 Hz,3 NO,3P,50 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,motor control-resistive load,Ring Tongue,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC1D326G7 CONTACTOR 600VAC 32AMP IEC +OPTIONS,120 V AC 50/60 Hz,3 NO,3P,50 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,LC1D,contactor,LC1D,motor control-resistive load,Ring Tongue,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC1D326G7 Application Motor control;resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D326G7 Coil Power Rating 30 hp at 575/600 VAC Coil Voltage 120 VAC Connection CONTROL CIRCUIT LUGS-RING TERMINALS 8 MM) -POWER CIRCUIT LUGS-RING TERMINALS 10 MM) Contact Configuration 3NO Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-50 A 60 A°C POWER CIRCUIT Country of Origin ID Currency USD Dimensions 85 mm H x 45 mm W x 92 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 31.61 Gross Volume per Pack Metric 517.99 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.2200 lb Gross Weight per Pack Metric 370.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.5000 CM Height [Metric] 10.9000 cm Item Group 22354 Length 11.8000 CM Length [Metric] 5.4000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=616132&lang=en-us Maximum Load Current 32/50 A Mounting PLATE-RAIL Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 3600 Cycles/hr Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 45 MM,85 MM,92 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GL-BV-CCC-DNV-RINA-LROS (LLOYDS REGISTER OF SHIPPING)-GOST-CSA-UL,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TeSys D Substitute Product Catalog Number LAD6K10F Terminal Type Lugs Ring Tongue Type Non-Reversing UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Wattage 2 W AC-3-5 W AC-1 W;W Width 10.0000 CM Width [Metric] 9.0000 cm Motor control;resistive load Without built-in suppressor module High making and breaking capacity 1NO and 1NC integrated auxiliary contact Up to 30 million mechanical operation cycles Electrical cycles up to 3600 cycles per hour at ambient temperature No derating up to 3000 m altitude Safe and long lasting power connection with EverLink and spring terminals Suitable for safety applications thanks to mechanically linked contacts and mirror contacts Identification of safety chain with red cover and auxiliary contact Recognized high performance and quality solutions Outstanding breaking/making capacity up to 20 in PLC direct connection Certified type 1 and 2 coordination tables TeSys™ D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mA These contactors can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D326G7 |
| Application | Motor control;resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D326G7 |
| Coil Power Rating | 30 hp at 575/600 VAC |
| Coil Voltage | 120 VAC |
| Connection | CONTROL CIRCUIT LUGS-RING TERMINALS 8 MM) -POWER CIRCUIT LUGS-RING TERMINALS 10 MM) |
| Contact Configuration | 3NO |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-50 A 60 A°C POWER CIRCUIT |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 92 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 31.61 |
| Gross Volume per Pack Metric | 517.99 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.2200 lb |
| Gross Weight per Pack Metric | 370.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.5000 CM |
| Height [Metric] | 10.9000 cm |
| Item Group | 22354 |
| Length | 11.8000 CM |
| Length [Metric] | 5.4000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=616132&lang=en-us |
| Maximum Load Current | 32/50 A |
| Mounting | PLATE-RAIL |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 3600 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 45 MM,85 MM,92 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GL-BV-CCC-DNV-RINA-LROS (LLOYDS REGISTER OF SHIPPING)-GOST-CSA-UL,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | LAD6K10F |
| Terminal Type | Lugs Ring Tongue |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 2 W AC-3-5 W AC-1 W;W |
| Width | 10.0000 CM |
| Width [Metric] | 9.0000 cm |
| Motor control;resistive load |
| Without built-in suppressor module |
| High making and breaking capacity |
| 1NO and 1NC integrated auxiliary contact |
| Up to 30 million mechanical operation cycles |
| Electrical cycles up to 3600 cycles per hour at ambient temperature |
| No derating up to 3000 m altitude |
| Safe and long lasting power connection with EverLink and spring terminals |
| Suitable for safety applications thanks to mechanically linked contacts and mirror contacts |
| Identification of safety chain with red cover and auxiliary contact |
| Recognized high performance and quality solutions |
| Outstanding breaking/making capacity up to 20 in |
| PLC direct connection |
| Certified type 1 and 2 coordination tables |
| TeSys™ D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mA |
| These contactors can be used to create motor starters for any type of application |
