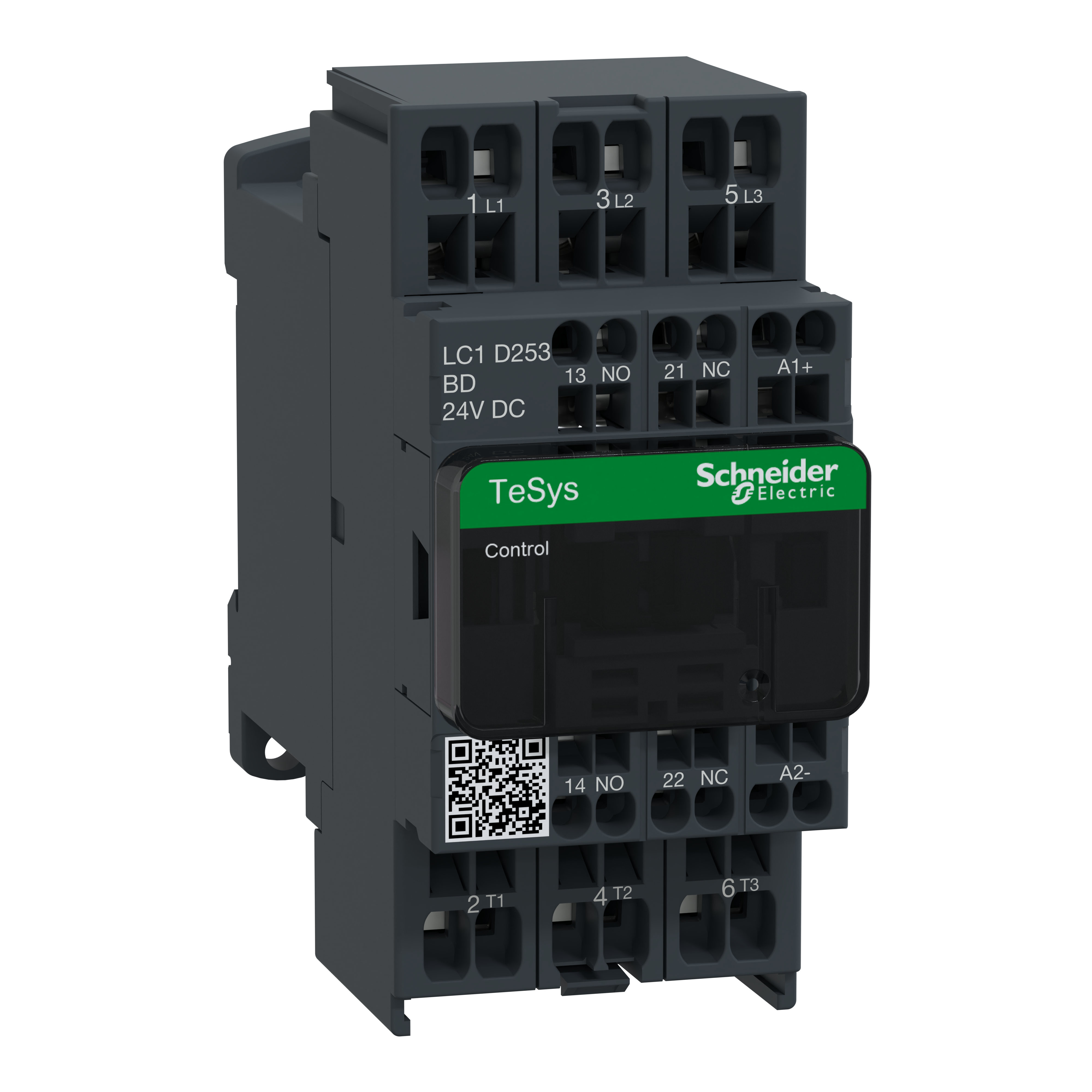

Schneider Electric LC1D253BD CONTACTOR 600VAC 25AM
Custom_Product_Images_Illustration
Schneider Electric LC1D253BD CONTACTOR 600VAC 25AM
SKU751050
MFGR #LC1D253BD
Call For Price
List: Schneider Electric LC1D253BD CONTACTOR 600VAC 25AMP IEC +OPTIONS,24 V DC,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,3 NO,3P,LC1D,contactor,LC1D,resistive load-motor control,Spring Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC1D253BD CONTACTOR 600VAC 25AMP IEC +OPTIONS,24 V DC,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,3 NO,3P,LC1D,contactor,LC1D,resistive load-motor control,Spring Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC1D253BD Application Resistive load;motor control ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D253BD Coil Power Rating 20 hp at 575/600 VAC Coil Voltage 24 VDC Contact Configuration 3NO Contact Rating 25 A 60 A°C POWER CIRCUIT-10 A 60 A°C SIGNALLING CIRCUIT Country of Origin ID Currency USD Dimensions 99 mm H x 45 mm W x 101 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 25 to 400 Hz Gross Volume Per Pack 48.58 Gross Volume per Pack Metric 796.08 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 6.0100 lb Gross Weight per Pack Metric 596.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.4000 CM Height [Metric] 5.4000 cm Item Group 22355 Length 12.2000 CM Length [Metric] 12.4000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=615006&lang=en-us Maximum Load Current 25/40 A Mounting RAIL-PLATE Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 3600 Cycles/hr Operating Temperature -5 to 60 Returnable N Series TeSys™ D LC1D Size 101 MM,45 MM,99 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,LROS (LLOYDS REGISTER OF SHIPPING)-RINA-GOST-BV-CSA-UL-GL-CCC-DNV,V1 UL 94 Stock Status NONSTOCK Sub Brand TESYS D Substitute Product Catalog Number LAD9V2 Terminal Type Spring Type Non-Reversing UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Wattage 3.2 W AC-1-1.25 W AC-3 . W;. W Width 11.0000 CM Width [Metric] 11.0000 cm Resistive load;motor control Built-in bidirectional peak limiting diode suppressor Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor simplify your maintenance services with 90% less references needed TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR All contactors include built-in auxiliary contacts All screw connections have IP20 finger safe terminals with both North American and international terminal markings Designed for perfect integration in control systems Can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D253BD |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D253BD |
| Coil Power Rating | 20 hp at 575/600 VAC |
| Coil Voltage | 24 VDC |
| Contact Configuration | 3NO |
| Contact Rating | 25 A 60 A°C POWER CIRCUIT-10 A 60 A°C SIGNALLING CIRCUIT |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 99 mm H x 45 mm W x 101 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 25 to 400 Hz |
| Gross Volume Per Pack | 48.58 |
| Gross Volume per Pack Metric | 796.08 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 6.0100 lb |
| Gross Weight per Pack Metric | 596.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.4000 CM |
| Height [Metric] | 5.4000 cm |
| Item Group | 22355 |
| Length | 12.2000 CM |
| Length [Metric] | 12.4000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=615006&lang=en-us |
| Maximum Load Current | 25/40 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 3600 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | N |
| Series | TeSys™ D LC1D |
| Size | 101 MM,45 MM,99 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,LROS (LLOYDS REGISTER OF SHIPPING)-RINA-GOST-BV-CSA-UL-GL-CCC-DNV,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS D |
| Substitute Product Catalog Number | LAD9V2 |
| Terminal Type | Spring |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 3.2 W AC-1-1.25 W AC-3 . W;. W |
| Width | 11.0000 CM |
| Width [Metric] | 11.0000 cm |
| Resistive load;motor control |
| Built-in bidirectional peak limiting diode suppressor |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger safe terminals with both North American and international terminal markings |
| Designed for perfect integration in control systems |
| Can be used to create motor starters for any type of application |
