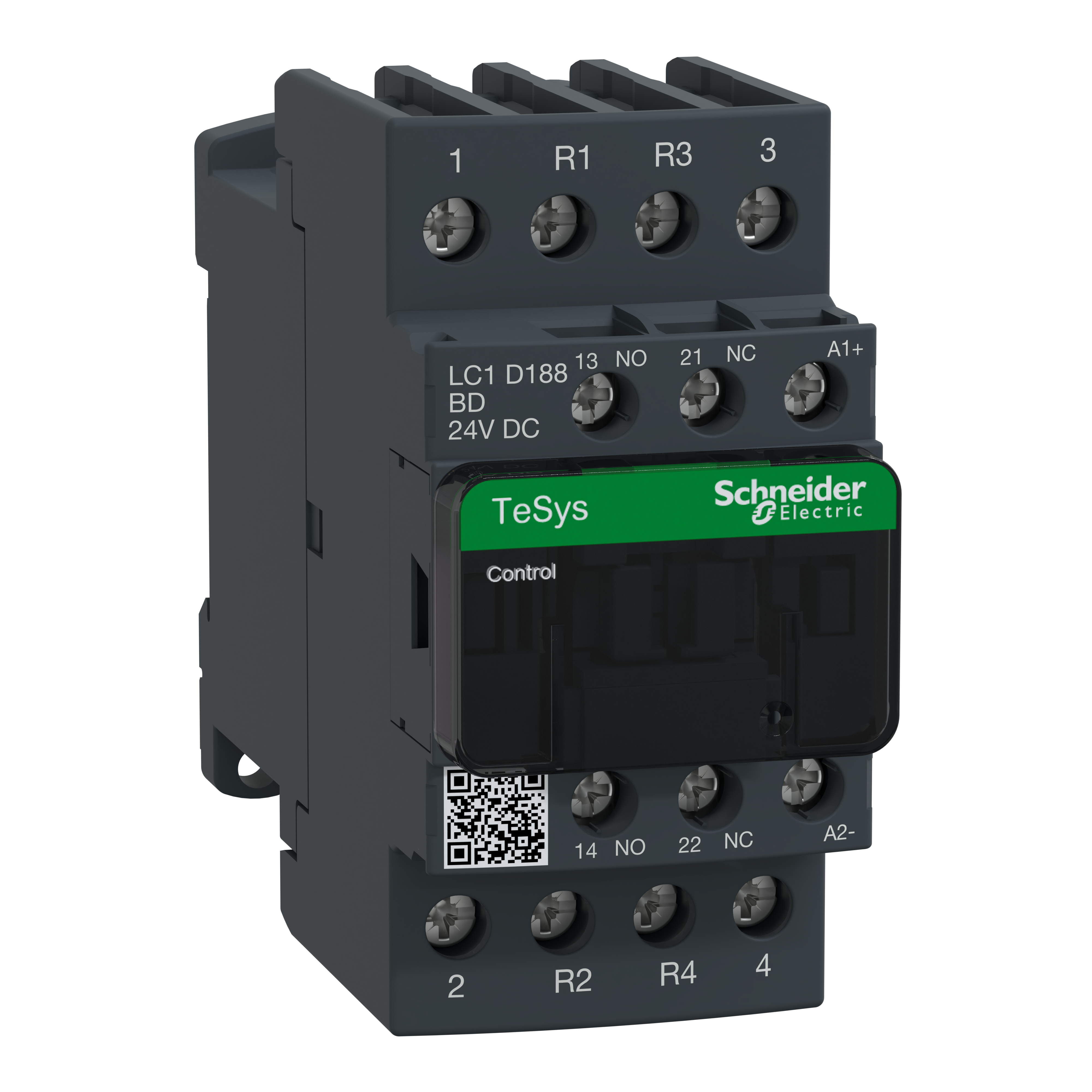

Schneider Electric LC1D188BD CONTACTOR 600VAC 18AM
Custom_Product_Images_Illustration
Schneider Electric LC1D188BD CONTACTOR 600VAC 18AM
SKU521618
MFGR #LC1D188BD
Price Not Available
List: Schneider Electric LC1D188BD CONTACTOR 600VAC 18AMP IEC +OPTIONS,2 NO + 2 NC,24 V DC,32 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4P,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC1D188BD CONTACTOR 600VAC 18AMP IEC +OPTIONS,2 NO + 2 NC,24 V DC,32 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4P,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC1D188BD Application Resistive load ARRA Compliant N Buy American Compliant N Catalog Number LC1D188BD Coil Power Rating 5.4-5.4 W 20 A°C Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-32 A 60 A°C POWER CIRCUIT Country of Origin ID Currency USD Dimensions 91 mm H x 45 mm W x 107 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 25 to 400 Hz Gross Volume Per Pack 39.29 Gross Volume per Pack Metric 643.84 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 6.2700 lb Gross Weight per Pack Metric 627.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.8000 CM Height [Metric] 5.8000 cm Item Group 22355 Length 12.0000 CM Length [Metric] 12.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=614742&lang=en-us Mounting PLATE-RAIL Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 4 Operating Cycles 3600 Cycles/hr Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 107 MM,45 MM,91 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GL-CSA-CCC-RINA-GOST-UL-DNV-BV-LROS (LLOYDS REGISTER OF SHIPPING),IP20 FRONT FACE IEC 60529,V1 UL 94 Sub Brand TeSys D Terminal Type Screw/Clamp UNSPSC 39121529 Warranty Description Contractual Warranty:18 months Wattage 2.5 W AC-1 . W Width 10.0000 CM Width [Metric] 9.5000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Coil Voltage 24 VDC Contact Configuration 2NO-2NC Maximum Load Current 32 A Type Non-Reversing Resistive load WITH INTEGRAL SUPPRESSION DEVICE Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor simplify your maintenance services with 90% less references needed TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR All contactors include built-in auxiliary contacts All screw connections have IP20 finger safe terminals with both North American and international terminal markings Designed for perfect integration in control systems Can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D188BD |
| Application | Resistive load |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1D188BD |
| Coil Power Rating | 5.4-5.4 W 20 A°C |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-32 A 60 A°C POWER CIRCUIT |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 91 mm H x 45 mm W x 107 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 25 to 400 Hz |
| Gross Volume Per Pack | 39.29 |
| Gross Volume per Pack Metric | 643.84 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 6.2700 lb |
| Gross Weight per Pack Metric | 627.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.8000 CM |
| Height [Metric] | 5.8000 cm |
| Item Group | 22355 |
| Length | 12.0000 CM |
| Length [Metric] | 12.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=614742&lang=en-us |
| Mounting | PLATE-RAIL |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 4 |
| Operating Cycles | 3600 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 107 MM,45 MM,91 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GL-CSA-CCC-RINA-GOST-UL-DNV-BV-LROS (LLOYDS REGISTER OF SHIPPING),IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Sub Brand | TeSys D |
| Terminal Type | Screw/Clamp |
| UNSPSC | 39121529 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 2.5 W AC-1 . W |
| Width | 10.0000 CM |
| Width [Metric] | 9.5000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Coil Voltage | 24 VDC |
| Contact Configuration | 2NO-2NC |
| Maximum Load Current | 32 A |
| Type | Non-Reversing |
| Resistive load |
| WITH INTEGRAL SUPPRESSION DEVICE |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger safe terminals with both North American and international terminal markings |
| Designed for perfect integration in control systems |
| Can be used to create motor starters for any type of application |
