Schneider Electric

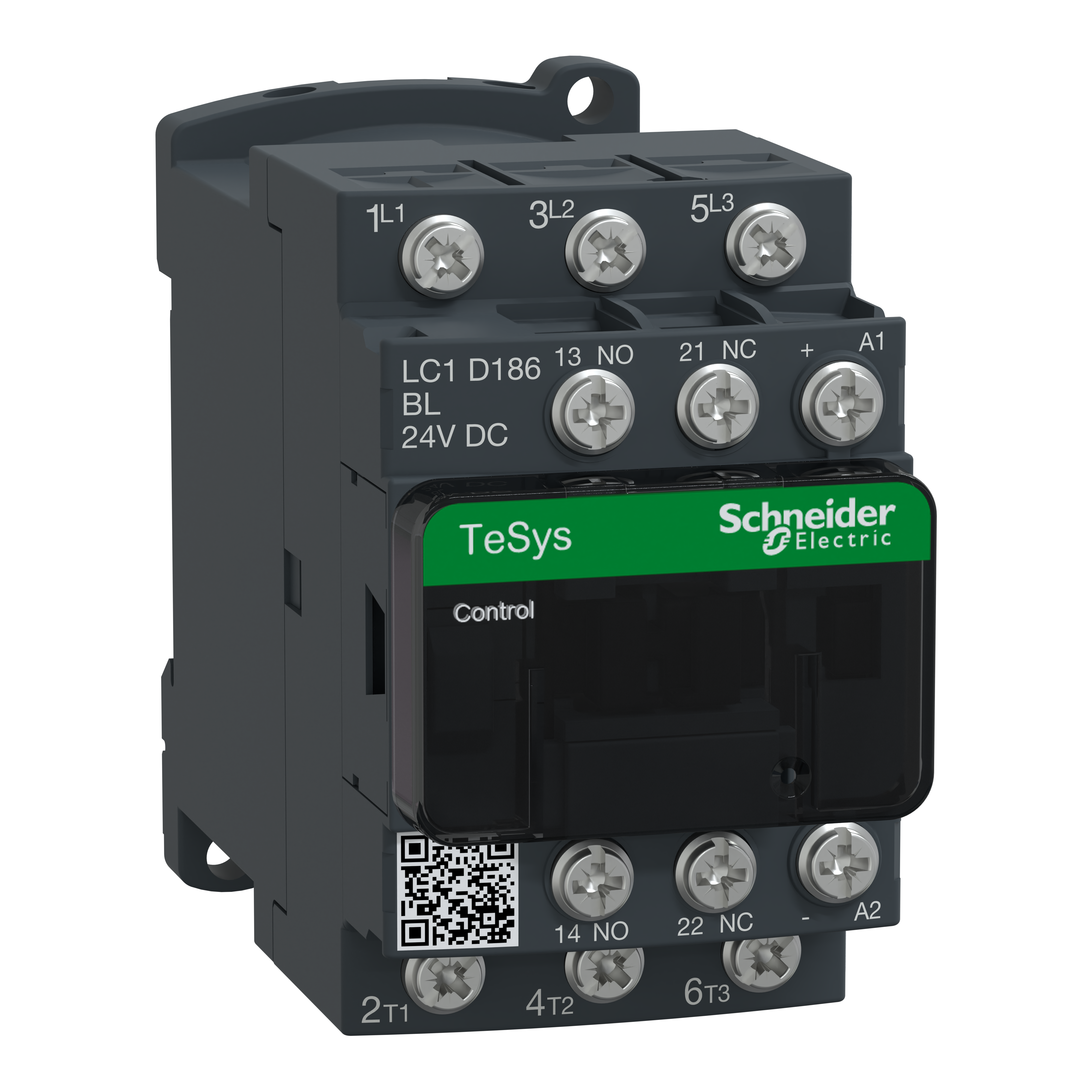

Schneider Electric LC1D186BL CONTACTOR 600VAC 18AM
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric LC1D186BL CONTACTOR 600VAC 18AM
SKU290153
MFGR #LC1D186BL
Your Cost: $195.76/ea
Schneider Electric LC1D186BL CONTACTOR 600VAC 18AMP IEC +OPTIONS,24 V DC,3 NO,32 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,3P,LC1D,contactor,LC1D,resistive load-motor control,Ring Tongue,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC1D186BL CONTACTOR 600VAC 18AMP IEC +OPTIONS,24 V DC,3 NO,32 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,3P,LC1D,contactor,LC1D,resistive load-motor control,Ring Tongue,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC1D186BL Application Motor control;resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D186BL Coil Power Rating 15 hp at 575/600 VAC Coil Voltage 24 VDC Connection CONTROL CIRCUIT LUGS-RING TERMINALS 8 MM) -POWER CIRCUIT LUGS-RING TERMINALS 8 MM) Contact Configuration 3NO Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-32 A 60 A°C POWER CIRCUIT Country of Origin ID Currency USD Dimensions 77 mm H x 45 mm W x 95 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 25 to 400 Hz Gross Volume Per Pack 35.74 Gross Volume per Pack Metric 585.67 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.2000 lb Gross Weight per Pack Metric 545.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.5000 in Height [Metric] 5.5000 cm Item Group 22354 Length 12.0000 in Length [Metric] 12.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=614418&lang=en-us Maximum Load Current 18/32 A Mounting RAIL-PLATE Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 3600 Cycles/hr Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 45 MM,77 MM,95 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,LROS (LLOYDS REGISTER OF SHIPPING)-GOST-DNV-RINA-GL-UL-BV-CSA-CCC,V1 UL 94 Stock Status NONSTOCK Sub Brand TESYS D Substitute Product Catalog Number GV2G445 Terminal Type Lugs Ring Tongue Type Non-Reversing UNSPSC 39121529 UPC 11 78590156118 UPC 12 785901561187 Warranty Description Contractual Warranty:18 months Wattage 2.5 W AC-1-0.8 W AC-3 Width 9.5000 in Width [Metric] 9.5000 cm Motor control;resistive load Built-in bidirectional peak limiting diode suppressor Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor simplify your maintenance services with 90% less references needed TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR All contactors include built-in auxiliary contacts All screw connections have IP20 finger safe terminals with both North American and international terminal markings Designed for perfect integration in control systems Can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D186BL |
| Application | Motor control;resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D186BL |
| Coil Power Rating | 15 hp at 575/600 VAC |
| Coil Voltage | 24 VDC |
| Connection | CONTROL CIRCUIT LUGS-RING TERMINALS 8 MM) -POWER CIRCUIT LUGS-RING TERMINALS 8 MM) |
| Contact Configuration | 3NO |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-32 A 60 A°C POWER CIRCUIT |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 77 mm H x 45 mm W x 95 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 25 to 400 Hz |
| Gross Volume Per Pack | 35.74 |
| Gross Volume per Pack Metric | 585.67 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.2000 lb |
| Gross Weight per Pack Metric | 545.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.5000 in |
| Height [Metric] | 5.5000 cm |
| Item Group | 22354 |
| Length | 12.0000 in |
| Length [Metric] | 12.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=614418&lang=en-us |
| Maximum Load Current | 18/32 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 3600 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 45 MM,77 MM,95 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,LROS (LLOYDS REGISTER OF SHIPPING)-GOST-DNV-RINA-GL-UL-BV-CSA-CCC,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS D |
| Substitute Product Catalog Number | GV2G445 |
| Terminal Type | Lugs Ring Tongue |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 78590156118 |
| UPC 12 | 785901561187 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 2.5 W AC-1-0.8 W AC-3 |
| Width | 9.5000 in |
| Width [Metric] | 9.5000 cm |
| Motor control;resistive load |
| Built-in bidirectional peak limiting diode suppressor |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger safe terminals with both North American and international terminal markings |
| Designed for perfect integration in control systems |
| Can be used to create motor starters for any type of application |
