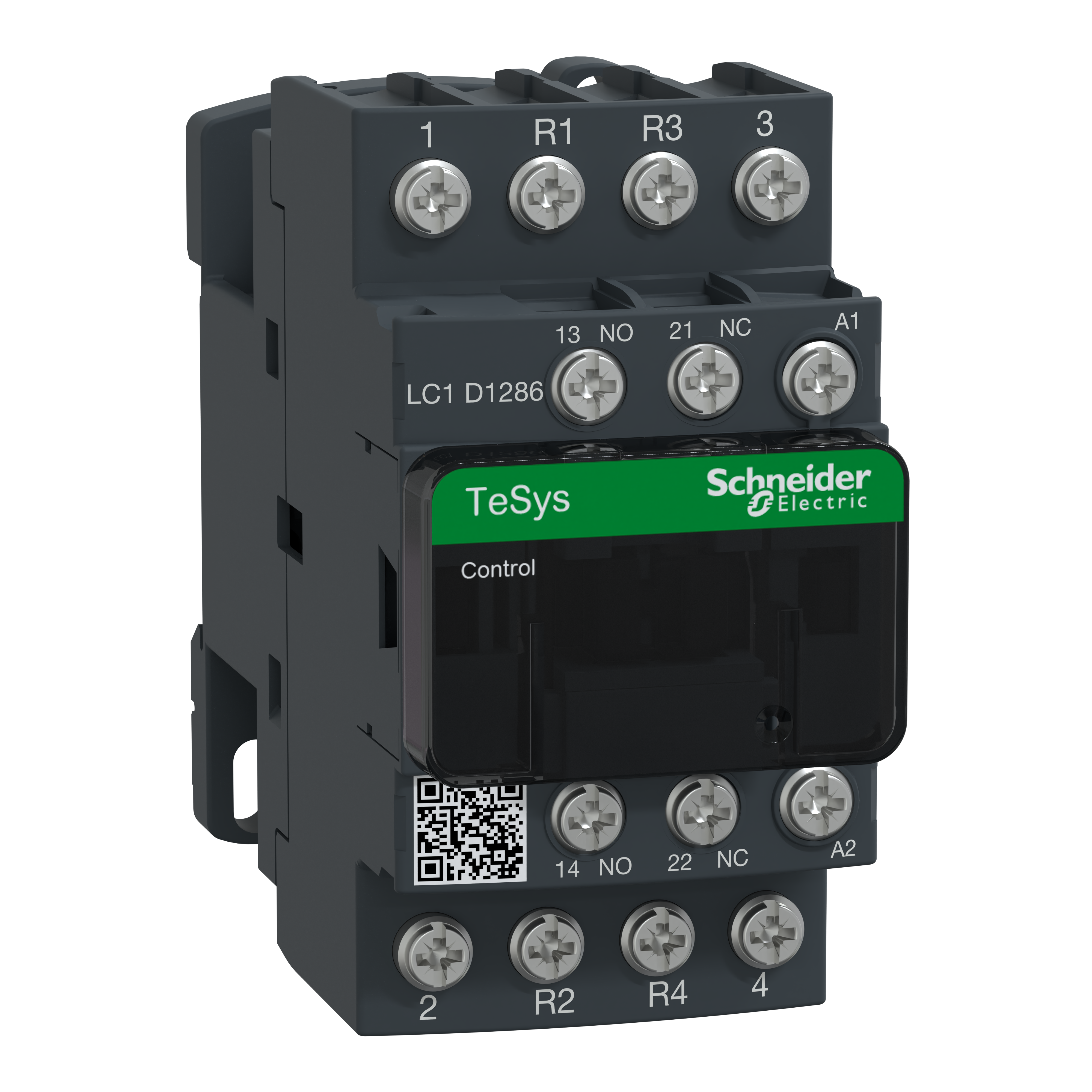

Schneider Electric LC1D1286G7 CONTACTOR 600VAC 12A
Custom_Product_Images_Illustration
Schneider Electric LC1D1286G7 CONTACTOR 600VAC 12A
SKU499618
MFGR #LC1D1286G7
Your Cost: $166.51/ea
Schneider Electric LC1D1286G7 CONTACTOR 600VAC 12AMP IEC +OPTIONS,120 V AC 50/60 Hz,2 NO + 2 NC,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4P,LC1D,contactor,LC1D,resistive load,Ring Tongue,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC1D1286G7 CONTACTOR 600VAC 12AMP IEC +OPTIONS,120 V AC 50/60 Hz,2 NO + 2 NC,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,4P,LC1D,contactor,LC1D,resistive load,Ring Tongue,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC1D1286G7 Application Resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D1286G7 Coil Power Rating 7.5-7.5 VA 60 HZ 0.3 20 A°C)-7-7 VA 50 HZ 0.3 20 A°C) Coil Voltage 120 VAC Connection CONTROL CIRCUIT LUGS-RING TERMINALS 8 MM) -POWER CIRCUIT LUGS-RING TERMINALS 8 MM) Contact Configuration 2NO-2NC Contact Rating 25 A 60 A°C POWER CIRCUIT-10 A 60 A°C SIGNALLING CIRCUIT Country of Origin SG Currency USD Dimensions 85 mm H x 45 mm W x 92 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 34.96 Gross Volume per Pack Metric 572.89 Gross Weight Per Pack 0.7800 lb Gross Weight per Pack Metric 355.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.3000 in Height [Metric] 5.3000 cm Item Group 22354 Length 11.3000 in Length [Metric] 11.3000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=613366&lang=en-us Maximum Load Current 25 A Mounting PLATE-RAIL Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 4 Operating Cycles 3600 Cycles/hr Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 45 MM,85 MM,92 MM Standard 850 A°C IEC 60695-2-1,BV-CSA-GOST-CCC-GL-DNV-LROS (LLOYDS REGISTER OF SHIPPING)-UL-RINA,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TESYS D Terminal Type Lugs Ring Tongue Type Non-Reversing UNSPSC 39121529 UPC 11 78590161171 UPC 12 785901611714 Warranty Description Contractual Warranty:18 months Wattage 1.56 W AC-1 . W Width 9.3000 in Width [Metric] 9.3000 cm Resistive load WITHOUT BUILT-IN SUPPRESSOR MODULE Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor simplify your maintenance services with 90% less references needed TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR All contactors include built-in auxiliary contacts All screw connections have IP20 finger safe terminals with both North American and international terminal markings Designed for perfect integration in control systems Can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D1286G7 |
| Application | Resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D1286G7 |
| Coil Power Rating | 7.5-7.5 VA 60 HZ 0.3 20 A°C)-7-7 VA 50 HZ 0.3 20 A°C) |
| Coil Voltage | 120 VAC |
| Connection | CONTROL CIRCUIT LUGS-RING TERMINALS 8 MM) -POWER CIRCUIT LUGS-RING TERMINALS 8 MM) |
| Contact Configuration | 2NO-2NC |
| Contact Rating | 25 A 60 A°C POWER CIRCUIT-10 A 60 A°C SIGNALLING CIRCUIT |
| Country of Origin | SG |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 92 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 34.96 |
| Gross Volume per Pack Metric | 572.89 |
| Gross Weight Per Pack | 0.7800 lb |
| Gross Weight per Pack Metric | 355.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.3000 in |
| Height [Metric] | 5.3000 cm |
| Item Group | 22354 |
| Length | 11.3000 in |
| Length [Metric] | 11.3000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=613366&lang=en-us |
| Maximum Load Current | 25 A |
| Mounting | PLATE-RAIL |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 4 |
| Operating Cycles | 3600 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 45 MM,85 MM,92 MM |
| Standard | 850 A°C IEC 60695-2-1,BV-CSA-GOST-CCC-GL-DNV-LROS (LLOYDS REGISTER OF SHIPPING)-UL-RINA,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS D |
| Terminal Type | Lugs Ring Tongue |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 78590161171 |
| UPC 12 | 785901611714 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1.56 W AC-1 . W |
| Width | 9.3000 in |
| Width [Metric] | 9.3000 cm |
| Resistive load |
| WITHOUT BUILT-IN SUPPRESSOR MODULE |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger safe terminals with both North American and international terminal markings |
| Designed for perfect integration in control systems |
| Can be used to create motor starters for any type of application |
