Schneider Electric

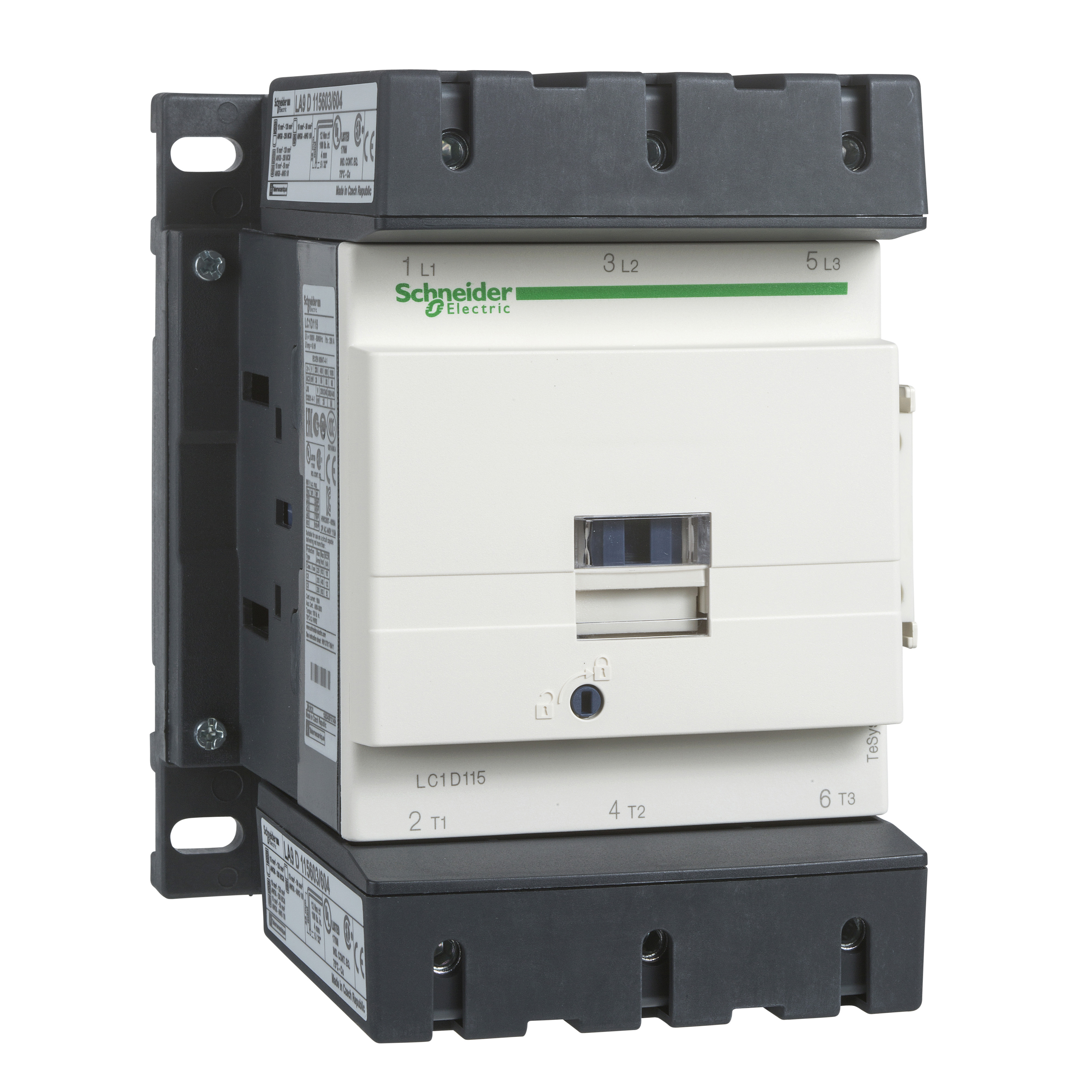

Schneider Electric LC1D115T6 CONTACTOR 600VAC 115A
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric LC1D115T6 CONTACTOR 600VAC 115A
SKU510325
MFGR #LC1D115T6
Your Cost: $630.97/ea
Schneider Electric LC1D115T6 CONTACTOR 600VAC 115AMP IEC +OPTIONS,200 A at <= 60 deg.C for power circuit,3 NO,3P,480 V AC 60 Hz,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC1D115T6 CONTACTOR 600VAC 115AMP IEC +OPTIONS,200 A at <= 60 deg.C for power circuit,3 NO,3P,480 V AC 60 Hz,LC1D,contactor,LC1D,resistive load-motor control,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC1D115T6 Application Motor control;resistive load ARRA Compliant N Buy American Compliant N Catalog Number LC1D115T6 Coil Power Rating 100 hp at 575/600 VAC Contact Rating 200 A 60 A°C POWER CIRCUIT Country of Origin CZ Currency USD Dimensions 158 mm H x 120 mm W x 136 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 25 to 400 Hz Gross Volume Per Pack 405.90 Gross Volume per Pack Metric 6651.48 Gross Weight Per Pack 5.3400 lb Gross Weight per Pack Metric 2.42 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 16.8000 in Height [Metric] 16.8000 cm Item Group 22359 Length 18.5000 in Length [Metric] 18.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=612744&lang=en-us Mounting RAIL-PLATE Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 2400 Cycles/hr Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 120 MM,136 MM,158 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,CSA-GOST-CCC-UL-RINA-BV-LROS (LLOYDS REGISTER OF SHIPPING)-DNV-GL,IP20 FRONT FACE IEC 60529,V1 UL 94 Sub Brand TeSys D Terminal Type Screw/Clamp UNSPSC 39121529 UPC 11 78590163648 UPC 12 785901636489 Warranty Description Contractual Warranty:18 months Wattage 24 W AC-1-7.9 W AC-3 . W;W Width 20.8000 in Width [Metric] 20.8000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Coil Voltage 480 VAC Contact Configuration 3NO Maximum Load Current 115/200 A Type Non-Reversing Motor control;resistive load 30 HP 200/208 V AC 50/60 HZ 3 PHASE-40 HP 230/240 V AC 50/60 HZ 3 PHASE-75 HP 460/480 V AC 50/60 HZ 3 PHASE-100 HP 575/600 V AC 50/60 HZ 3 PHASE,WITHOUT BUILT-IN SUPPRESSOR MODULE Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor simplify your maintenance services with 90% less references needed TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR All contactors include built-in auxiliary contacts All screw connections have IP20 finger safe terminals with both North American and international terminal markings Designed for perfect integration in control systems Can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D115T6 |
| Application | Motor control;resistive load |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1D115T6 |
| Coil Power Rating | 100 hp at 575/600 VAC |
| Contact Rating | 200 A 60 A°C POWER CIRCUIT |
| Country of Origin | CZ |
| Currency | USD |
| Dimensions | 158 mm H x 120 mm W x 136 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 25 to 400 Hz |
| Gross Volume Per Pack | 405.90 |
| Gross Volume per Pack Metric | 6651.48 |
| Gross Weight Per Pack | 5.3400 lb |
| Gross Weight per Pack Metric | 2.42 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 16.8000 in |
| Height [Metric] | 16.8000 cm |
| Item Group | 22359 |
| Length | 18.5000 in |
| Length [Metric] | 18.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=612744&lang=en-us |
| Mounting | RAIL-PLATE |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 2400 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 120 MM,136 MM,158 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,CSA-GOST-CCC-UL-RINA-BV-LROS (LLOYDS REGISTER OF SHIPPING)-DNV-GL,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Sub Brand | TeSys D |
| Terminal Type | Screw/Clamp |
| UNSPSC | 39121529 |
| UPC 11 | 78590163648 |
| UPC 12 | 785901636489 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 24 W AC-1-7.9 W AC-3 . W;W |
| Width | 20.8000 in |
| Width [Metric] | 20.8000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Coil Voltage | 480 VAC |
| Contact Configuration | 3NO |
| Maximum Load Current | 115/200 A |
| Type | Non-Reversing |
| Motor control;resistive load |
| 30 HP 200/208 V AC 50/60 HZ 3 PHASE-40 HP 230/240 V AC 50/60 HZ 3 PHASE-75 HP 460/480 V AC 50/60 HZ 3 PHASE-100 HP 575/600 V AC 50/60 HZ 3 PHASE,WITHOUT BUILT-IN SUPPRESSOR MODULE |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger safe terminals with both North American and international terminal markings |
| Designed for perfect integration in control systems |
| Can be used to create motor starters for any type of application |
