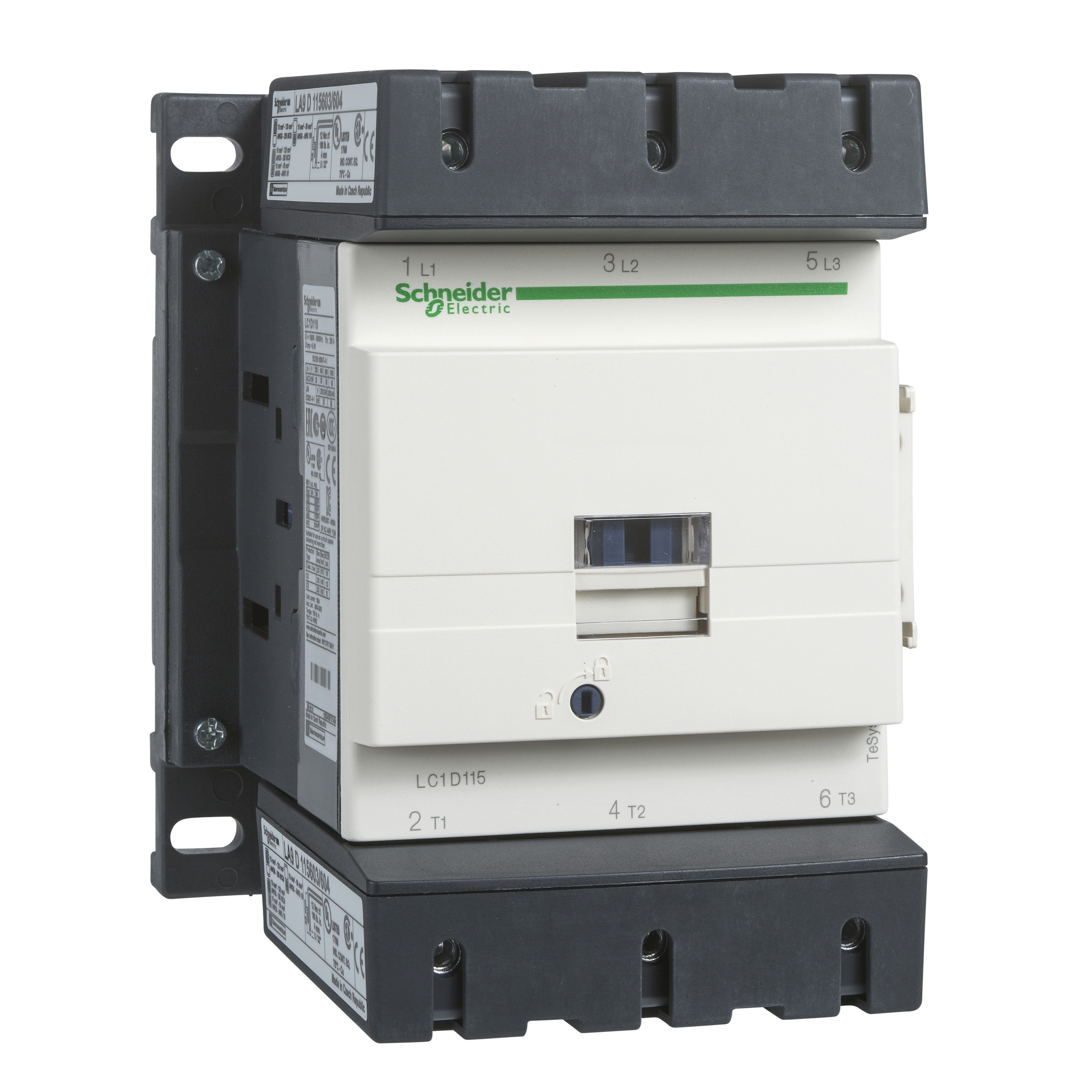

Schneider Electric LC1D115M7 CONTACTOR 600VAC 115A
Custom_Product_Images_Illustration
Schneider Electric LC1D115M7 CONTACTOR 600VAC 115A
SKU328228
MFGR #LC1D115M7
Your Cost: $630.97/ea
Schneider Electric LC1D115M7 CONTACTOR 600VAC 115AMP IEC +OPTIONS,200 A at <= 60 deg.C for power circuit,220 V AC 50/60 Hz,3 NO,3P,LC1D,contactor,LC1D,motor control-resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC1D115M7 CONTACTOR 600VAC 115AMP IEC +OPTIONS,200 A at <= 60 deg.C for power circuit,220 V AC 50/60 Hz,3 NO,3P,LC1D,contactor,LC1D,motor control-resistive load,Screw Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC1D115M7 Application Motor control;resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D115M7 Coil Power Rating 100 hp at 575/600 VAC Coil Voltage 220 VAC Contact Configuration 3NO Contact Rating 200 A 60 A°C POWER CIRCUIT Country of Origin FR Currency USD Dimensions 158 mm H x 120 mm W x 136 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 429.53 Gross Volume per Pack Metric 7038.71 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.4500 lb Gross Weight per Pack Metric 2.47 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 19.0000 in Height [Metric] 19.0000 cm Item Group 22359 Length 20.5000 in Length [Metric] 21.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=612710&lang=en-us Maximum Load Current 115/200 A Mounting RAIL-PLATE Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 2400 Cycles/hr Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 120 MM,136 MM,158 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,RINA-CSA-CCC-BV-LROS (LLOYDS REGISTER OF SHIPPING)-GL-GOST-DNV-UL,V1 UL 94 Stock Status NONSTOCK Sub Brand TeSys D Substitute Product Catalog Number LA9D11502 Terminal Type Screw/Clamp Type Non-Reversing UNSPSC 39121529 UPC 11 78590169688 UPC 12 785901696889 Warranty Description Contractual Warranty:18 months Wattage 24 W AC-1-7.9 W AC-3 Width 16.8000 in Width [Metric] 17.5000 cm Motor control;resistive load 30 HP 200/208 V AC 50/60 HZ 3 PHASE-40 HP 230/240 V AC 50/60 HZ 3 PHASE-75 HP 460/480 V AC 50/60 HZ 3 PHASE-100 HP 575/600 V AC 50/60 HZ 3 PHASE,BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil TeSys™ D green contactor simplify your maintenance services with 90% less references needed TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR All contactors include built-in auxiliary contacts All screw connections have IP20 finger safe terminals with both North American and international terminal markings Designed for perfect integration in control systems Can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D115M7 |
| Application | Motor control;resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D115M7 |
| Coil Power Rating | 100 hp at 575/600 VAC |
| Coil Voltage | 220 VAC |
| Contact Configuration | 3NO |
| Contact Rating | 200 A 60 A°C POWER CIRCUIT |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 158 mm H x 120 mm W x 136 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 429.53 |
| Gross Volume per Pack Metric | 7038.71 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.4500 lb |
| Gross Weight per Pack Metric | 2.47 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 19.0000 in |
| Height [Metric] | 19.0000 cm |
| Item Group | 22359 |
| Length | 20.5000 in |
| Length [Metric] | 21.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=612710&lang=en-us |
| Maximum Load Current | 115/200 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 2400 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 120 MM,136 MM,158 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,RINA-CSA-CCC-BV-LROS (LLOYDS REGISTER OF SHIPPING)-GL-GOST-DNV-UL,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | LA9D11502 |
| Terminal Type | Screw/Clamp |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 78590169688 |
| UPC 12 | 785901696889 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 24 W AC-1-7.9 W AC-3 |
| Width | 16.8000 in |
| Width [Metric] | 17.5000 cm |
| Motor control;resistive load |
| 30 HP 200/208 V AC 50/60 HZ 3 PHASE-40 HP 230/240 V AC 50/60 HZ 3 PHASE-75 HP 460/480 V AC 50/60 HZ 3 PHASE-100 HP 575/600 V AC 50/60 HZ 3 PHASE,BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger safe terminals with both North American and international terminal markings |
| Designed for perfect integration in control systems |
| Can be used to create motor starters for any type of application |
