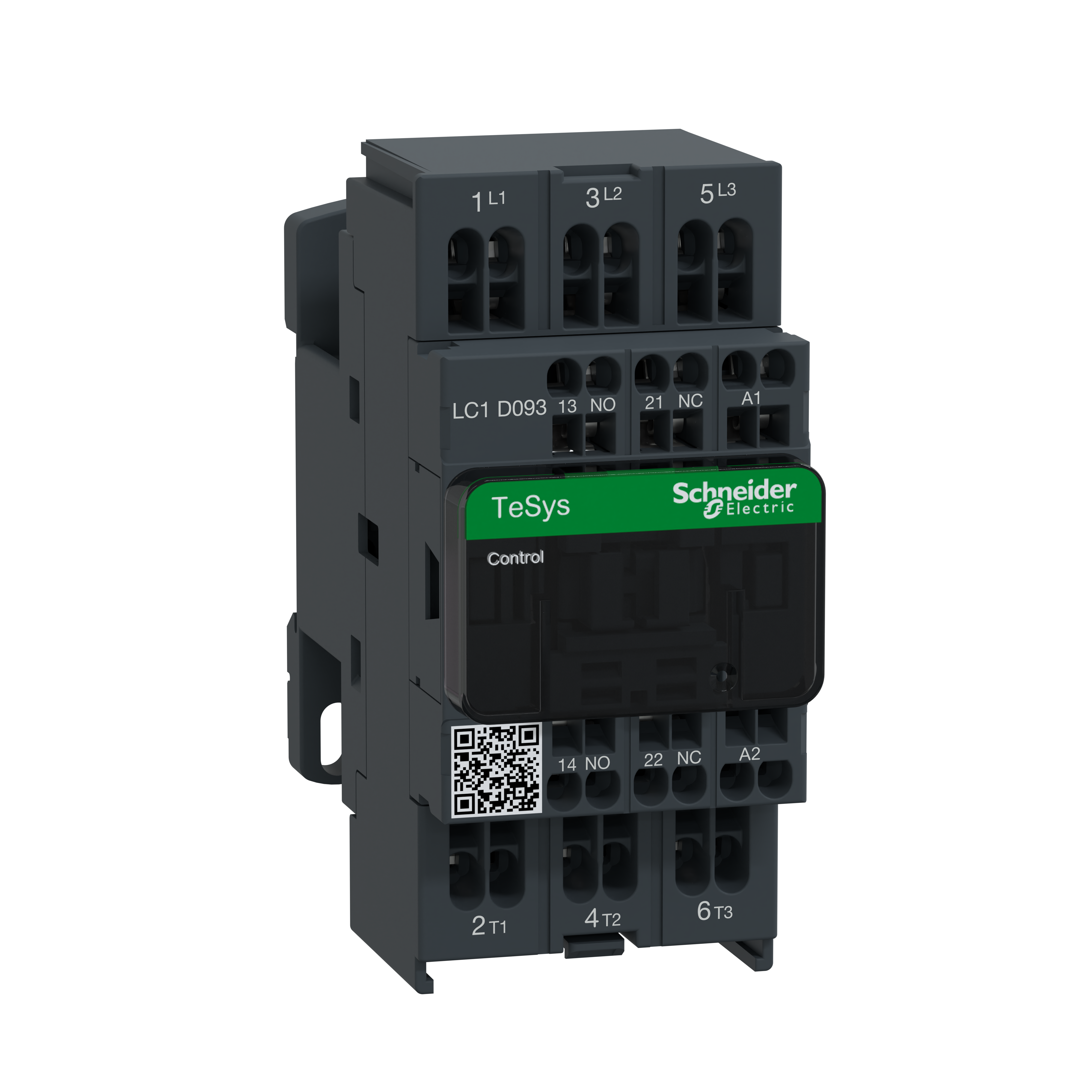

Schneider Electric LC1D093G7 CONTACTOR 600VAC 9AMP
Custom_Product_Images_Illustration
Schneider Electric LC1D093G7 CONTACTOR 600VAC 9AMP
SKU97023
MFGR #LC1D093G7
Your Cost: $113.43/ea
Schneider Electric LC1D093G7 CONTACTOR 600VAC 9AMP IEC +OPTIONS,120 V AC 50/60 Hz,16 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,3 NO,3P,LC1D,contactor,LC1D,motor control-resistive load,Spring Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Schneider Electric LC1D093G7 CONTACTOR 600VAC 9AMP IEC +OPTIONS,120 V AC 50/60 Hz,16 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,3 NO,3P,LC1D,contactor,LC1D,motor control-resistive load,Spring Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
Alternate Catalog Number LC1D093G7 Application Motor control;resistive load ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number LC1D093G7 Coil Power Rating 7-1/2 hp at 575/600 VAC Coil Voltage 120 VAC Contact Configuration 3NO Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-16 A 60 A°C POWER CIRCUIT Contact Type Non-Reversing Country of Origin US Currency USD Dimensions 80 mm H x 45 mm W x 86 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 43.34 Gross Volume per Pack Metric 710.21 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.7300 lb Gross Weight per Pack Metric 330.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536490065 Height 5.8000 in Height [Metric] 11.4000 cm Item Group 22354 Length 12.2000 in Length [Metric] 5.4000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=611194&lang=en-us Maximum Load Current 9/25 A Mounting RAIL-PLATE Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 3600 Cycles/hr Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 45 MM,80 MM,86 MM Standard 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GOST-DNV-UL-GL-BV-CCC-CSA-LROS (LLOYDS REGISTER OF SHIPPING)-RINA,IP20 FRONT FACE IEC 60529,V1 UL 94 Stock Status NONSTOCK Sub Brand TeSys D Substitute Product Catalog Number LADN223 Terminal Type Spring Type Non-Reversing UNSPSC 39121529 UPC 11 78590119724 UPC 12 785901197249 Warranty Description Contractual Warranty:18 months Wattage 1.56/1 to 0.2 Width 11.3000 in Width [Metric] 10.5000 cm Motor control;resistive load Without built-in suppressor module AC, DC, low consumption DC control circuit TeSys™ D contactors have been designed for perfect integration in control systems They can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D093G7 |
| Application | Motor control;resistive load |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | LC1D093G7 |
| Coil Power Rating | 7-1/2 hp at 575/600 VAC |
| Coil Voltage | 120 VAC |
| Contact Configuration | 3NO |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-16 A 60 A°C POWER CIRCUIT |
| Contact Type | Non-Reversing |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 80 mm H x 45 mm W x 86 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 43.34 |
| Gross Volume per Pack Metric | 710.21 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.7300 lb |
| Gross Weight per Pack Metric | 330.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.8000 in |
| Height [Metric] | 11.4000 cm |
| Item Group | 22354 |
| Length | 12.2000 in |
| Length [Metric] | 5.4000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=611194&lang=en-us |
| Maximum Load Current | 9/25 A |
| Mounting | RAIL-PLATE |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 3600 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 45 MM,80 MM,86 MM |
| Standard | 850 A°C IEC 60695-2-1,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,GOST-DNV-UL-GL-BV-CCC-CSA-LROS (LLOYDS REGISTER OF SHIPPING)-RINA,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Stock Status | NONSTOCK |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | LADN223 |
| Terminal Type | Spring |
| Type | Non-Reversing |
| UNSPSC | 39121529 |
| UPC 11 | 78590119724 |
| UPC 12 | 785901197249 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1.56/1 to 0.2 |
| Width | 11.3000 in |
| Width [Metric] | 10.5000 cm |
| Motor control;resistive load |
| Without built-in suppressor module |
| AC, DC, low consumption DC control circuit |
| TeSys™ D contactors have been designed for perfect integration in control systems |
| They can be used to create motor starters for any type of application |
