Schneider Electric

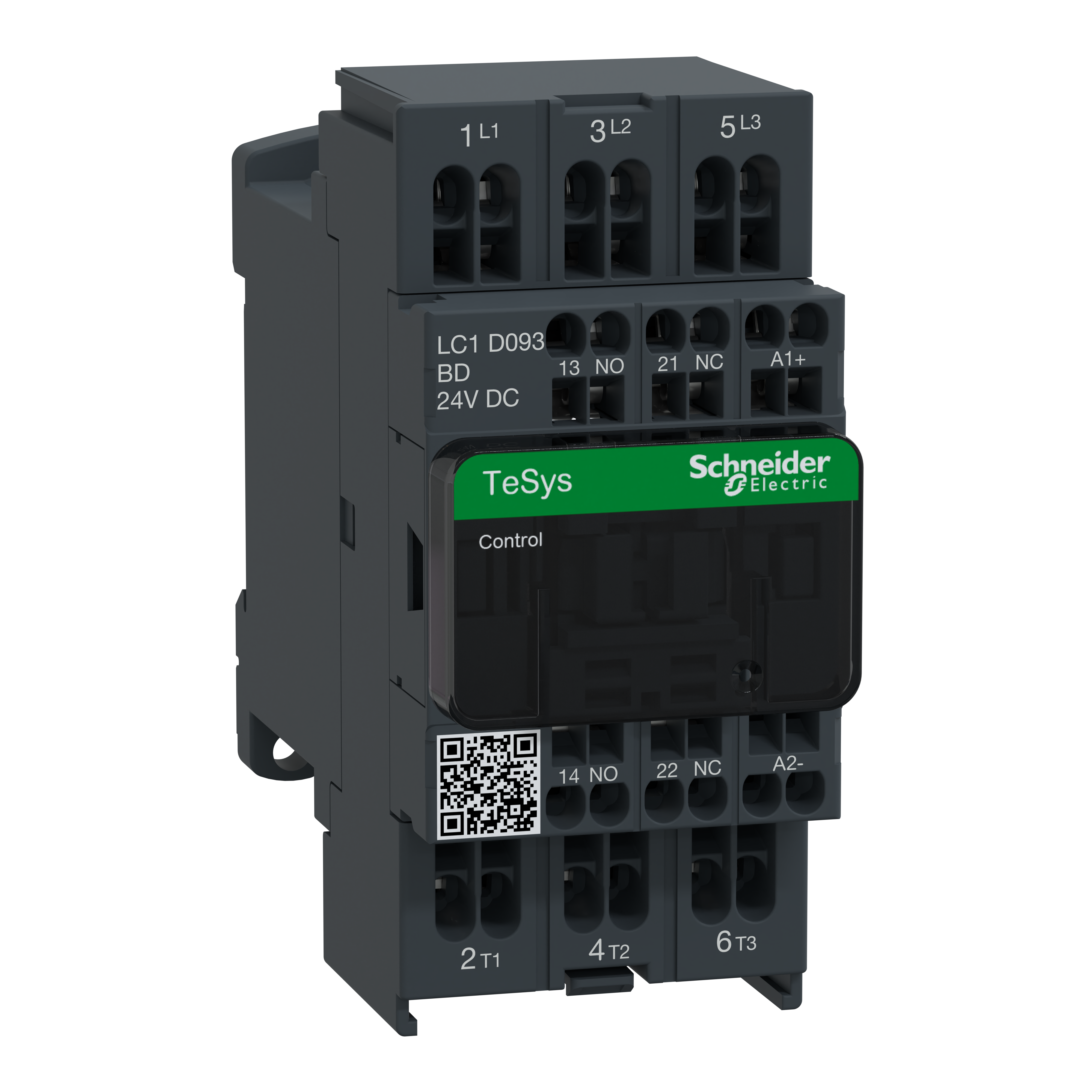

Schneider Electric LC1D093BD CONTACTOR 600VAC 9AMP
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric LC1D093BD CONTACTOR 600VAC 9AMP
SKU413835
MFGR #LC1D093BD
Your Cost: $119.67/ea
Schneider Electric LC1D093BD CONTACTOR 600VAC 9AMP IEC +OPTIONS,16 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,24 V DC,3 NO,3P,LC1D,contactor,LC1D,resistive load-motor control,Spring Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Schneider Electric LC1D093BD CONTACTOR 600VAC 9AMP IEC +OPTIONS,16 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,24 V DC,3 NO,3P,LC1D,contactor,LC1D,resistive load-motor control,Spring Clamp,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,plate-rail
Alternate Catalog Number LC1D093BD Application Resistive load;motor control ARRA Compliant N Buy American Compliant N Catalog Number LC1D093BD Coil Power Rating 7-1/2 hp at 575/600 VAC Contact Rating 10 A 60 A°C SIGNALLING CIRCUIT-16 A 60 A°C POWER CIRCUIT Country of Origin ID Currency USD Dimensions 80 mm H x 45 mm W x 95 mm D Enclosure Type Open EU RoHS Indicator Y Frequency Rating 25 to 400 Hz Gross Volume Per Pack 44.46 Gross Volume per Pack Metric 728.57 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.2000 lb Gross Weight per Pack Metric 544.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536410045 Height 5.5000 in Height [Metric] 5.5000 cm Item Group 22355 Length 12.2000 in Length [Metric] 12.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=611168&lang=en-us Mounting PLATE-RAIL Mounting Type Plate/Rail Number of Auxiliary Contacts 1NO-1NC Number Of Poles 3 Operating Cycles 3600 Cycles/hr Operating Temperature -5 to 60 Returnable Y Series TeSys™ D LC1D Size 45 MM,80 MM,95 MM Standard 850 A°C IEC 60695-2-1,CCC-GL-BV-LROS (LLOYDS REGISTER OF SHIPPING)-CSA-RINA-DNV-UL-GOST,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 Sub Brand TeSys D Substitute Product Catalog Number LAD4DDL Terminal Type Spring UNSPSC 39121529 UPC 11 78590119761 UPC 12 785901197614 Warranty Description Contractual Warranty:18 months Wattage 1.56 W AC-1-0.2 W AC-3 Width 10.5000 in Width [Metric] 10.5000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Coil Voltage 24 VDC Contact Configuration 3NO Maximum Load Current 9/25 A Type Non-Reversing Resistive load;motor control Built-in bidirectional peak limiting diode suppressor AC, DC, low consumption DC control circuit TeSys™ D contactors have been designed for perfect integration in control systems They can be used to create motor starters for any type of application
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | LC1D093BD |
| Application | Resistive load;motor control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LC1D093BD |
| Coil Power Rating | 7-1/2 hp at 575/600 VAC |
| Contact Rating | 10 A 60 A°C SIGNALLING CIRCUIT-16 A 60 A°C POWER CIRCUIT |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 80 mm H x 45 mm W x 95 mm D |
| Enclosure Type | Open |
| EU RoHS Indicator | Y |
| Frequency Rating | 25 to 400 Hz |
| Gross Volume Per Pack | 44.46 |
| Gross Volume per Pack Metric | 728.57 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.2000 lb |
| Gross Weight per Pack Metric | 544.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536410045 |
| Height | 5.5000 in |
| Height [Metric] | 5.5000 cm |
| Item Group | 22355 |
| Length | 12.2000 in |
| Length [Metric] | 12.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=611168&lang=en-us |
| Mounting | PLATE-RAIL |
| Mounting Type | Plate/Rail |
| Number of Auxiliary Contacts | 1NO-1NC |
| Number Of Poles | 3 |
| Operating Cycles | 3600 Cycles/hr |
| Operating Temperature | -5 to 60 |
| Returnable | Y |
| Series | TeSys™ D LC1D |
| Size | 45 MM,80 MM,95 MM |
| Standard | 850 A°C IEC 60695-2-1,CCC-GL-BV-LROS (LLOYDS REGISTER OF SHIPPING)-CSA-RINA-DNV-UL-GOST,CSA C22.2 NO 14-EN 60947-4-1-EN 60947-5-1-IEC 60947-4-1-IEC 60947-5-1-UL 508,IP20 FRONT FACE IEC 60529,V1 UL 94 |
| Sub Brand | TeSys D |
| Substitute Product Catalog Number | LAD4DDL |
| Terminal Type | Spring |
| UNSPSC | 39121529 |
| UPC 11 | 78590119761 |
| UPC 12 | 785901197614 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1.56 W AC-1-0.2 W AC-3 |
| Width | 10.5000 in |
| Width [Metric] | 10.5000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Coil Voltage | 24 VDC |
| Contact Configuration | 3NO |
| Maximum Load Current | 9/25 A |
| Type | Non-Reversing |
| Resistive load;motor control |
| Built-in bidirectional peak limiting diode suppressor |
| AC, DC, low consumption DC control circuit |
| TeSys™ D contactors have been designed for perfect integration in control systems |
| They can be used to create motor starters for any type of application |
