Square D™

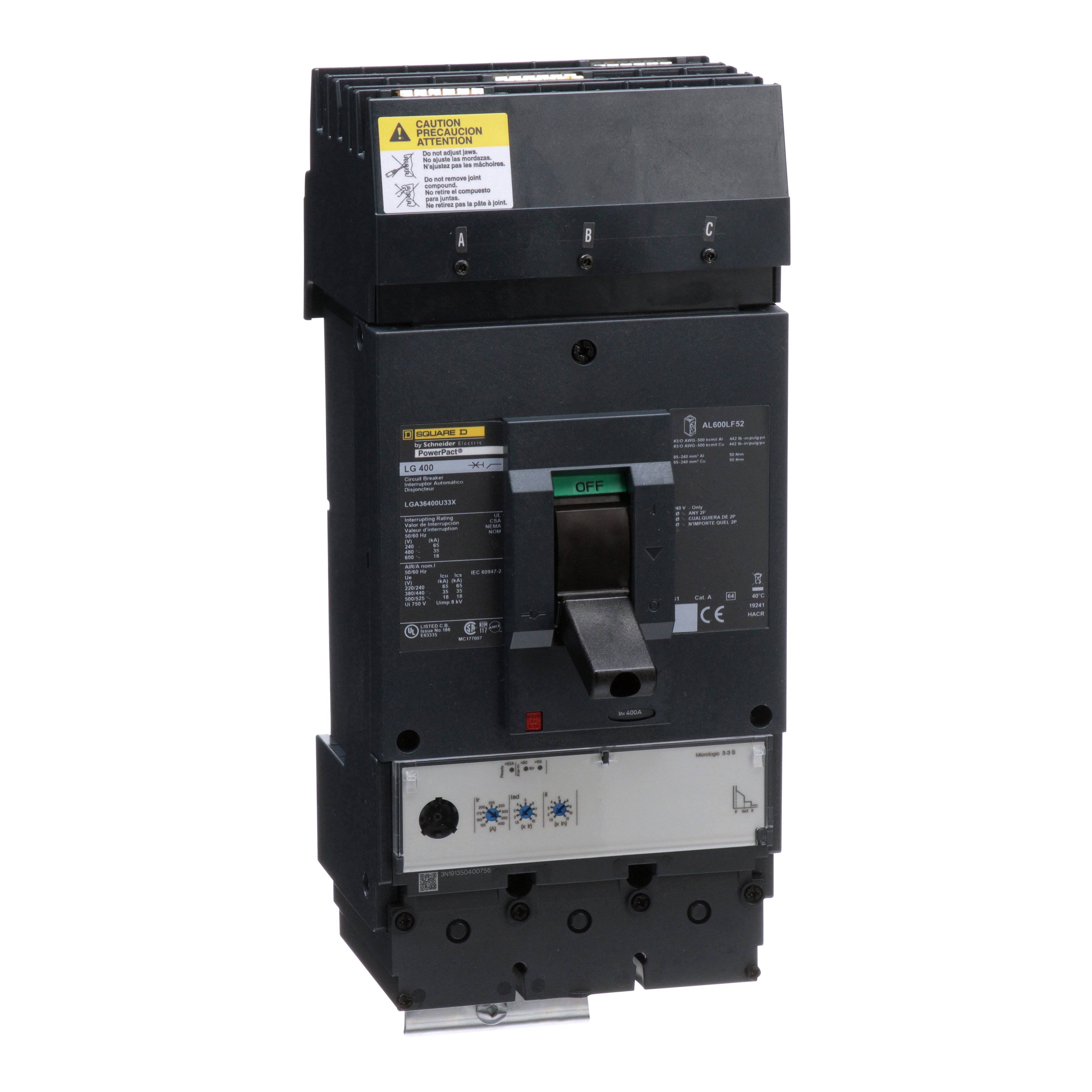

Schneider Electric I-Line™ PowerPact™ LGA36400U33X Standard Molded Case Circuit Breaker, 600 VAC, 400 A, 3 Poles
Custom_Product_Images_Illustration
Square D™
Schneider Electric I-Line™ PowerPact™ LGA36400U33X Standard Molded Case Circuit Breaker, 600 VAC, 400 A, 3 Poles
SKU955646
MFGR #LGA36400U33X
$/ea
Schneider Electric LGA36400U33X MOLDED CASE CIRCUIT BREAKER 600V 400A,35 kA 480 V AC-65 kA 240 V AC-18 kA 600 V AC,600 V AC,400 A,400 A,600 V AC,G,circuit breaker,electronic standard Micrologic 3.3 S LSI,plug-in
Schneider Electric LGA36400U33X MOLDED CASE CIRCUIT BREAKER 600V 400A,35 kA 480 V AC-65 kA 240 V AC-18 kA 600 V AC,600 V AC,400 A,400 A,600 V AC,G,circuit breaker,electronic standard Micrologic 3.3 S LSI,plug-in
Actuator Type Toggle Alternate Catalog Number LGA36400U33X ARRA Compliant N Buy American Compliant N Catalog Number LGA36400U33X Connection AWG 3/0...500 KCMIL ALUMINIUM/COPPER)2,I-LINE CONNECTION LINE-LUGS LOAD Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 14.7 in H x 5.94 in W x 6.61 in D EU RoHS Indicator Y Frame L Frame Frequency Rating 50/60 Hz Gross Volume Per Pack 3905.44 Gross Volume per Pack Metric 63998.44 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0869 lb Gross Weight per Pack Metric 8.69 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.3520 in Height [Metric] 22.3520 cm Item Group 01118 Length 80.5180 in Length [Metric] 80.5180 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980576&lang=en-us Number Of Poles 3 Returnable N Standard CSA-CE-UL LISTED-CCC-NMX Substitute Product Catalog Number S29450 Temperature Rating 122 °F Trip Range 400 Type Standard UNSPSC 39121601 UPC 11 78590180928 UPC 12 785901809289 Warranty Description Contractual Warranty:18 months Width 35.5600 in Width [Metric] 35.5600 cm Wire Size (2) 2/0 AWG to 500 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC Trip Type Electronic Micrologic LSI Voltage Rating 600 VAC I-LINE Rated current from 70 to 250 A Breaking capacity from 18 to 65 kA at 480 VAC Common accessories and auxiliaries with other PowerPact™ frames 600 VAC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating IEC style rotary operating handles Equipped with a unique terminal design that makes converting between busbar and lug options easy Easy to install, extremely versatile, a wide variety of terminal options
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | LGA36400U33X |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LGA36400U33X |
| Connection | AWG 3/0...500 KCMIL ALUMINIUM/COPPER)2,I-LINE CONNECTION LINE-LUGS LOAD |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 14.7 in H x 5.94 in W x 6.61 in D |
| EU RoHS Indicator | Y |
| Frame | L Frame |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3905.44 |
| Gross Volume per Pack Metric | 63998.44 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0869 lb |
| Gross Weight per Pack Metric | 8.69 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.3520 in |
| Height [Metric] | 22.3520 cm |
| Item Group | 01118 |
| Length | 80.5180 in |
| Length [Metric] | 80.5180 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980576&lang=en-us |
| Number Of Poles | 3 |
| Returnable | N |
| Standard | CSA-CE-UL LISTED-CCC-NMX |
| Substitute Product Catalog Number | S29450 |
| Temperature Rating | 122 °F |
| Trip Range | 400 |
| Type | Standard |
| UNSPSC | 39121601 |
| UPC 11 | 78590180928 |
| UPC 12 | 785901809289 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 35.5600 in |
| Width [Metric] | 35.5600 cm |
| Wire Size | (2) 2/0 AWG to 500 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC |
| Trip Type | Electronic Micrologic LSI |
| Voltage Rating | 600 VAC |
| I-LINE |
| Rated current from 70 to 250 A |
| Breaking capacity from 18 to 65 kA at 480 VAC |
| Common accessories and auxiliaries with other PowerPact™ frames |
| 600 VAC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating |
| IEC style rotary operating handles |
| Equipped with a unique terminal design that makes converting between busbar and lug options easy |
| Easy to install, extremely versatile, a wide variety of terminal options |
