Square D™

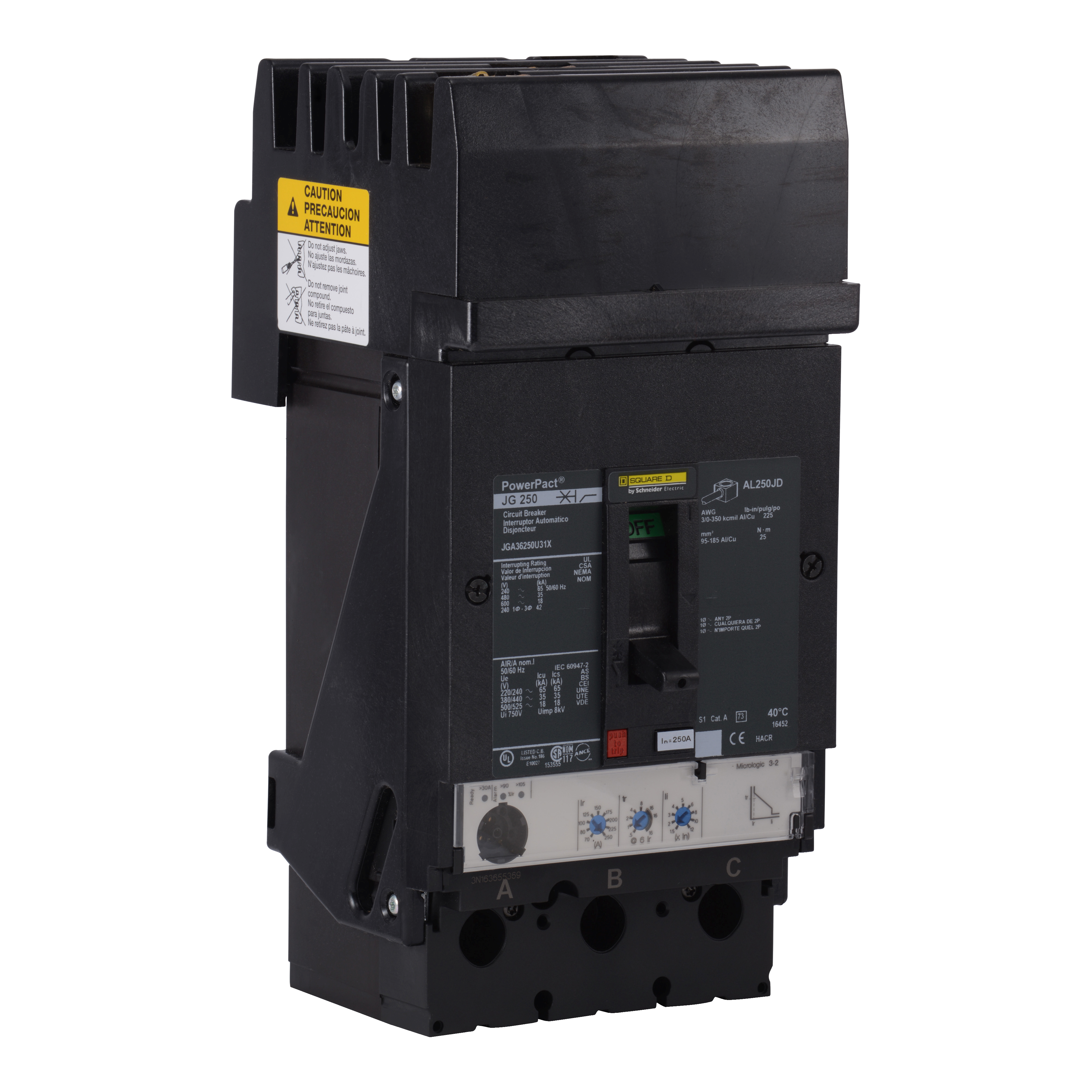

Schneider Electric I-Line™ PowerPact™ JGA36250U31X Molded Case Circuit Breaker, 600 VAC, 250 A, 3 Poles, Electronic Trip
Custom_Product_Images_Illustration
Square D™
Schneider Electric I-Line™ PowerPact™ JGA36250U31X Molded Case Circuit Breaker, 600 VAC, 250 A, 3 Poles, Electronic Trip
SKU955741
MFGR #JGA36250U31X
Your Cost: $2,693.44/ea
List: Schneider Electric JGA36250U31X MOLDED CASE CIRCUIT BREAKER 600V 250A,250 A,250 A,35 kA 480 V AC-65 kA 240 V AC-18 kA 600 V AC,600 V AC,600 V AC,G,circuit breaker,electronic standard Micrologic 3.2 LI,plug-in
Schneider Electric JGA36250U31X MOLDED CASE CIRCUIT BREAKER 600V 250A,250 A,250 A,35 kA 480 V AC-65 kA 240 V AC-18 kA 600 V AC,600 V AC,600 V AC,G,circuit breaker,electronic standard Micrologic 3.2 LI,plug-in
Actuator Type Toggle Alternate Catalog Number JGA36250U31X ARRA Compliant N Buy American Compliant N Catalog Number JGA36250U31X Connection AWG 3/0...350 KCMIL ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 6.4 in H x 4.12 in W x 4.36 in D EU RoHS Indicator Y Frame J Frame Frequency Rating 50/60 Hz Gross Weight Per Pack 7.1200 lb Gross Weight per Pack Metric 3.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 13.6530 in Height [Metric] 13.6530 cm Item Group 01104 Length 37.1480 in Length [Metric] 37.1480 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980428&lang=en-us Number Of Poles 3 Operating Temperature 50 °C Phase 3 pH Returnable Y Standard CCC-CE-UL LISTED-IEC-CSA Substitute Product Catalog Number S29370 Temperature Rating 104 °F Trip Range 250 A Type 80% Rated UNSPSC 39121601 UPC 11 78590196574 UPC 12 785901965749 Warranty Description Contractual Warranty:18 months Width 20.6380 in Width [Metric] 20.6380 cm Wire Size 3/0 AWG to 350 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC Trip Type Electronic Voltage Rating 600 VAC I-LINE Rated current from 70 to 250 A Breaking capacity from 18 to 65 kA at 480 VAC Common accessories and auxiliaries with other PowerPact™ frames 600 VAC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | JGA36250U31X |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | JGA36250U31X |
| Connection | AWG 3/0...350 KCMIL ALUMINIUM/COPPER,I-LINE CONNECTION LINE-LUGS LOAD |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.4 in H x 4.12 in W x 4.36 in D |
| EU RoHS Indicator | Y |
| Frame | J Frame |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 7.1200 lb |
| Gross Weight per Pack Metric | 3.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 13.6530 in |
| Height [Metric] | 13.6530 cm |
| Item Group | 01104 |
| Length | 37.1480 in |
| Length [Metric] | 37.1480 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980428&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | 50 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | CCC-CE-UL LISTED-IEC-CSA |
| Substitute Product Catalog Number | S29370 |
| Temperature Rating | 104 °F |
| Trip Range | 250 A |
| Type | 80% Rated |
| UNSPSC | 39121601 |
| UPC 11 | 78590196574 |
| UPC 12 | 785901965749 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 20.6380 in |
| Width [Metric] | 20.6380 cm |
| Wire Size | 3/0 AWG to 350 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250/500 VDC |
| Trip Type | Electronic |
| Voltage Rating | 600 VAC |
| I-LINE |
| Rated current from 70 to 250 A |
| Breaking capacity from 18 to 65 kA at 480 VAC |
| Common accessories and auxiliaries with other PowerPact™ frames |
| 600 VAC, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC interrupt rating |
