Square D™

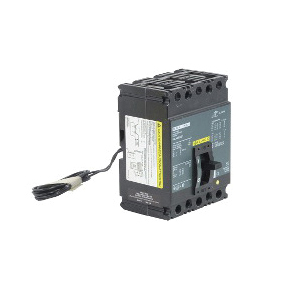

Schneider Electric I-Line™ FAL340301212 Type FA Molded Case Circuit Breaker, 480 VAC/250 VDC, 30 A, 3 Poles
Custom_Product_Images_Illustration
Square D™
Schneider Electric I-Line™ FAL340301212 Type FA Molded Case Circuit Breaker, 480 VAC/250 VDC, 30 A, 3 Poles
SKU363213
MFGR #FAL340301212
Your Cost: $1,165.88/ea
List: Schneider Electric FAL340301212 MOLDED CASE CIRCUIT BREAKER 480V 30A
Schneider Electric FAL340301212 MOLDED CASE CIRCUIT BREAKER 480V 30A
Auxiliary Contact Rating 1NO-1NC Catalog Number FAL340301212 Connection Type Line/Load Lug Country of Origin MX Dimensions 6 in H x 4.5 in W x 4.13 in D Enclosure Type NEMA 1/3R/4/4X/5/7/9/12 Frame F Frequency Rating 50/60 Hz Gross Weight Per Pack 4.8100 lb Item Group 00902 Number Of Poles 3 Phase 3 pH Returnable N Standards UL 489File No. E1DD27CSA File No. LR7551IEC 157-1NOM CertifiedFederal Specified W-C-375B/GENARRA CompliantBuy American Act CompliantHARC Rated Trip Range 275 to 600 A Type Type FA UNSPSC 39121616 UPC 11 78590112891 UPC 12 78590112891 Wire Size 12 to 4 AWG Al/14 to 4 AWG Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Interrupt Rating 25 kA at 240 VAC/18 kA at 480 VAC/10 kA at 250 VDC Trip Type Thermal Magnetic Voltage Rating 480 VAC/250 VDC LUGS LOAD-LUGS LINE
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
Auxiliary Contact Rating | 1NO-1NC |
Catalog Number | FAL340301212 |
Connection Type | Line/Load Lug |
Country of Origin | MX |
Dimensions | 6 in H x 4.5 in W x 4.13 in D |
Enclosure Type | NEMA 1/3R/4/4X/5/7/9/12 |
Frame | F |
Frequency Rating | 50/60 Hz |
Gross Weight Per Pack | 4.8100 lb |
Item Group | 00902 |
Number Of Poles | 3 |
Phase | 3 pH |
Returnable | N |
Standards | UL 489File No. E1DD27CSA File No. LR7551IEC 157-1NOM CertifiedFederal Specified W-C-375B/GENARRA CompliantBuy American Act CompliantHARC Rated |
Trip Range | 275 to 600 A |
Type | Type FA |
UNSPSC | 39121616 |
UPC 11 | 78590112891 |
UPC 12 | 78590112891 |
Wire Size | 12 to 4 AWG Al/14 to 4 AWG Cu |
Stock Status | NONSTOCK |
Brand | Square D™ |
Manufacturer | Schneider Electric |
Amperage Rating | 30 A |
Interrupt Rating | 25 kA at 240 VAC/18 kA at 480 VAC/10 kA at 250 VDC |
Trip Type | Thermal Magnetic |
Voltage Rating | 480 VAC/250 VDC |
LUGS LOAD-LUGS LINE |
