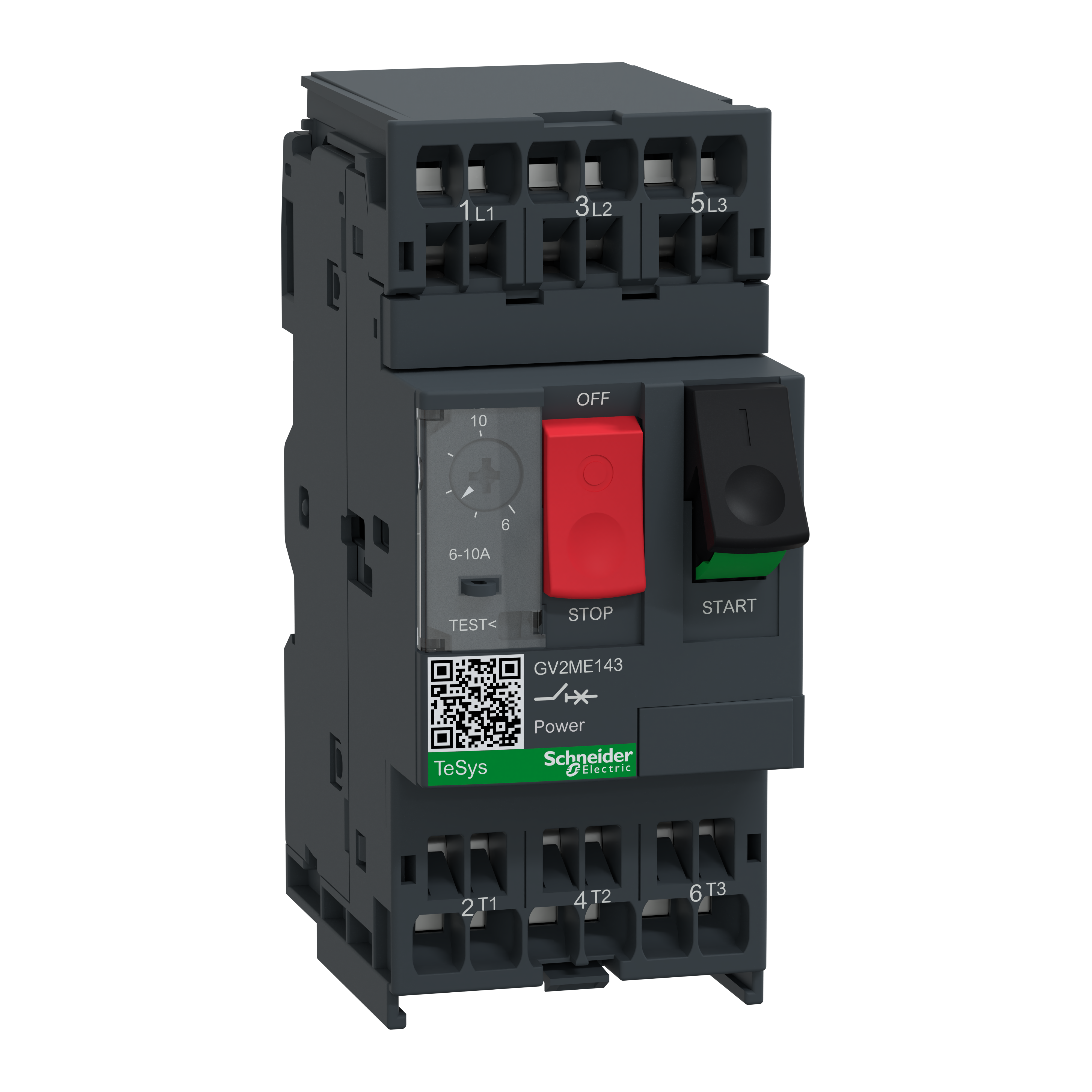

Schneider Electric GV2ME143 MANUAL STARTER 600VAC
Custom_Product_Images_Illustration
Schneider Electric GV2ME143 MANUAL STARTER 600VAC
SKU348759
MFGR #GV2ME143
$/ea
Schneider Electric GV2ME143 MANUAL STARTER 600VAC 10AMP IEC,-20...60 deg.C,0.5HP115VAC - 1.5HP230VAC 2HP200VAC - 3HP230VAC - 5HP460VAC - 7.5HP575VAC,100000 cycles,3-Pole,690 V AC 50/60 Hz conforming to IEC 60947-2,690 V AC 50/60 Hz conforming to IEC 60947-2,Ambient Compensated Bimetallic (Class 10) 6.0A to 10.0A,GV2ME,circuit breaker,IP20 conforming to IEC 60529,Spring Clip,TeSys,TeSys GV2,UL Listed File Number E164864 NLRV - CSA Certified File Number LR81630 Class 3211 05 - CE Marked,by clips-by screws
Schneider Electric GV2ME143 MANUAL STARTER 600VAC 10AMP IEC,-20...60 deg.C,0.5HP115VAC - 1.5HP230VAC 2HP200VAC - 3HP230VAC - 5HP460VAC - 7.5HP575VAC,100000 cycles,3-Pole,690 V AC 50/60 Hz conforming to IEC 60947-2,690 V AC 50/60 Hz conforming to IEC 60947-2,Ambient Compensated Bimetallic (Class 10) 6.0A to 10.0A,GV2ME,circuit breaker,IP20 conforming to IEC 60529,Spring Clip,TeSys,TeSys GV2,UL Listed File Number E164864 NLRV - CSA Certified File Number LR81630 Class 3211 05 - CE Marked,by clips-by screws
Alternate Catalog Number GV2ME143 Amperage Rating 10 A Application MOTOR ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number GV2ME143 Connection SPRING TERMINALS 2 1-6 MMA² SOLID- SPRING TERMINALS 2 1.5-4 MMA² FLEXIBLE WITHOUT CABLE END Connection Type Spring Clip Control Type Pushbutton Country of Origin FR Currency USD Dimensions 3.98 in H x 1.77 in W x 3.09 in D Enclosure Type IP20 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 31.22 Gross Volume per Pack Metric 511.60 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.0600 lb Gross Weight per Pack Metric 306.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 5.5000 CM Height [Metric] 5.5000 cm Item Group 22367 Length 8.5000 CM Length [Metric] 8.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=607548&lang=en-us Motor Power 1/2 hp, 1-1/2 hp, 2 hp, 3 hp, 5 hp, 7-1/2 hp Mounting BY SCREWS-BY CLIPS Number Of Poles 3 Operating Cycles 100000 Cycles Operating Temperature -20 to 60 °C Overload Relay Class 10 Ambient Compensated Bi-Metallic Phase 3 Reset Type Manual Returnable Y Series TeSys™ GV2ME Setting 6 to 10 A Size 101 MM,45 MM,78.5 MM Standard 960 A°C IEC 60695-2-1,EN/IEC 60947-2-EN/IEC 60947-4-1-CSA C22.2 NO 60947-4-1-UL 60947-4-1,IECEE CB SCHEME-UL-CSA-CCC-EAC-ATEX-BV-LROS (LLOYDS REGISTER OF SHIPPING)-DNV-GL-RINA,IK04,IP20 IEC 60529 Stock Status NONSTOCK Sub Brand TESYS Substitute Product Catalog Number GVAU385 Type Circuit Breaker Thermal Magnetic UNSPSC 39121521 Voltage Rating 690 VAC Warranty Description Contractual Warranty:18 months Width 11.0000 CM Width [Metric] 11.0000 cm MOTOR IK04,IP20 CONFORMING TO IEC 60529 The basic motor starter GV2ME controls motors with full load currents up to 32 A Magnetic instantaneous short circuit protection Test trip mechanism The addition of an undervoltage trip enables the motor circuit breaker to be tripped if voltage is lost The addition of a shunt trip enables remote control of tripping Provision for padlocking in the OFF position standard Fingersafe™ terminals (meets IP20 standards) The system manages motors and other electrical loads up to 40 hp Up to 20 modules and 1 bus coupler (up to 112 cm L) One click mounting on DIN rail and no need for control wiring on modules No auxiliary wiring required, thanks to full connectivity over fieldbus All adjustments and setting are digitized, no mechanical dials or dip switches Energy monitoring at load level Detect and solve issues before your machine stops Gain better insight to the operation and performance of the machine Decrease time to market, helping improve project profitability 1/2 hp at 115 VAC, 1-1/2 hp at 230 VAC, 2 hp at 200 VAC, 3 hp at 230 VAC, 5 hp at 460 VAC, 7-1/2 hp at 575 VAC motor rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | GV2ME143 |
| Amperage Rating | 10 A |
| Application | MOTOR |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | GV2ME143 |
| Connection | SPRING TERMINALS 2 1-6 MMA² SOLID- SPRING TERMINALS 2 1.5-4 MMA² FLEXIBLE WITHOUT CABLE END |
| Connection Type | Spring Clip |
| Control Type | Pushbutton |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 3.98 in H x 1.77 in W x 3.09 in D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 31.22 |
| Gross Volume per Pack Metric | 511.60 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.0600 lb |
| Gross Weight per Pack Metric | 306.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 5.5000 CM |
| Height [Metric] | 5.5000 cm |
| Item Group | 22367 |
| Length | 8.5000 CM |
| Length [Metric] | 8.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=607548&lang=en-us |
| Motor Power | 1/2 hp, 1-1/2 hp, 2 hp, 3 hp, 5 hp, 7-1/2 hp |
| Mounting | BY SCREWS-BY CLIPS |
| Number Of Poles | 3 |
| Operating Cycles | 100000 Cycles |
| Operating Temperature | -20 to 60 °C |
| Overload Relay | Class 10 Ambient Compensated Bi-Metallic |
| Phase | 3 |
| Reset Type | Manual |
| Returnable | Y |
| Series | TeSys™ GV2ME |
| Setting | 6 to 10 A |
| Size | 101 MM,45 MM,78.5 MM |
| Standard | 960 A°C IEC 60695-2-1,EN/IEC 60947-2-EN/IEC 60947-4-1-CSA C22.2 NO 60947-4-1-UL 60947-4-1,IECEE CB SCHEME-UL-CSA-CCC-EAC-ATEX-BV-LROS (LLOYDS REGISTER OF SHIPPING)-DNV-GL-RINA,IK04,IP20 IEC 60529 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS |
| Substitute Product Catalog Number | GVAU385 |
| Type | Circuit Breaker Thermal Magnetic |
| UNSPSC | 39121521 |
| Voltage Rating | 690 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 11.0000 CM |
| Width [Metric] | 11.0000 cm |
| MOTOR |
| IK04,IP20 CONFORMING TO IEC 60529 |
| The basic motor starter GV2ME controls motors with full load currents up to 32 A |
| Magnetic instantaneous short circuit protection |
| Test trip mechanism |
| The addition of an undervoltage trip enables the motor circuit breaker to be tripped if voltage is lost |
| The addition of a shunt trip enables remote control of tripping |
| Provision for padlocking in the OFF position standard |
| Fingersafe™ terminals (meets IP20 standards) |
| The system manages motors and other electrical loads up to 40 hp |
| Up to 20 modules and 1 bus coupler (up to 112 cm L) |
| One click mounting on DIN rail and no need for control wiring on modules |
| No auxiliary wiring required, thanks to full connectivity over fieldbus |
| All adjustments and setting are digitized, no mechanical dials or dip switches |
| Energy monitoring at load level |
| Detect and solve issues before your machine stops |
| Gain better insight to the operation and performance of the machine |
| Decrease time to market, helping improve project profitability |
| 1/2 hp at 115 VAC, 1-1/2 hp at 230 VAC, 2 hp at 200 VAC, 3 hp at 230 VAC, 5 hp at 460 VAC, 7-1/2 hp at 575 VAC motor rating |
