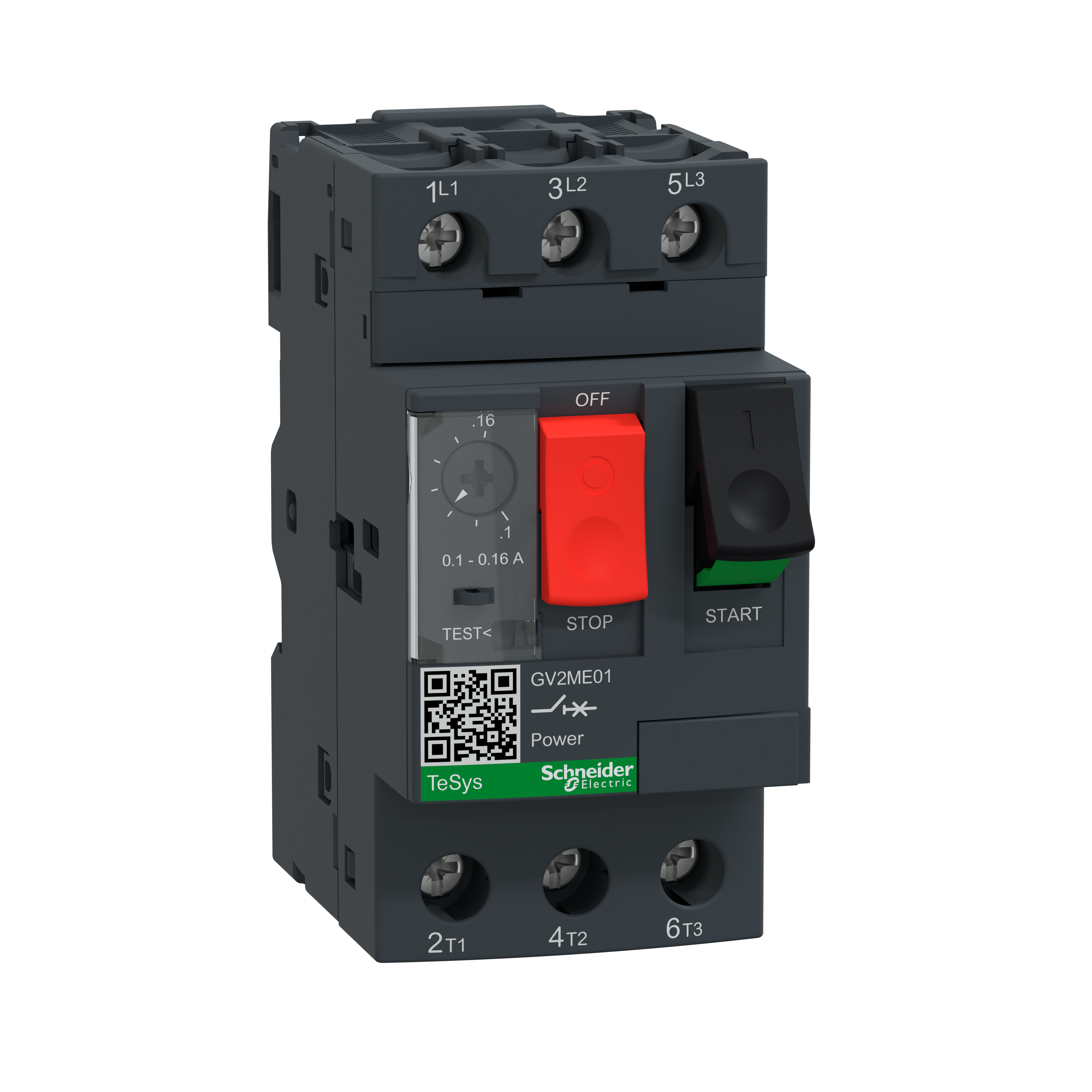

Schneider Electric GV2ME01 MANUAL STARTER 600VAC 0
Custom_Product_Images_Illustration
Schneider Electric GV2ME01 MANUAL STARTER 600VAC 0
SKU252284
MFGR #GV2ME01
$/ea
Schneider Electric GV2ME01 MANUAL STARTER 600VAC 0.16AMP IEC,-20...60 deg.C,100000 cycles,3-Pole,690 V AC 50/60 Hz conforming to IEC 60947-2,690 V AC 50/60 Hz conforming to IEC 60947-2,Ambient Compensated Bimetallic (Class 10) 0.11A to 0.16A,GV2ME,circuit breaker,IP20 conforming to IEC 60529,Not Rated Not Rated,Screw Clamp,TeSys,TeSys GV2,UL Listed File Number E164864 NLRV - CSA Certified File Number LR81630 Class 3211 05 - CE Marked,by screws-by clips
Schneider Electric GV2ME01 MANUAL STARTER 600VAC 0.16AMP IEC,-20...60 deg.C,100000 cycles,3-Pole,690 V AC 50/60 Hz conforming to IEC 60947-2,690 V AC 50/60 Hz conforming to IEC 60947-2,Ambient Compensated Bimetallic (Class 10) 0.11A to 0.16A,GV2ME,circuit breaker,IP20 conforming to IEC 60529,Not Rated Not Rated,Screw Clamp,TeSys,TeSys GV2,UL Listed File Number E164864 NLRV - CSA Certified File Number LR81630 Class 3211 05 - CE Marked,by screws-by clips
Alternate Catalog Number GV2ME01 Amperage Rating 0.16 A Application Motor Protection ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number GV2ME01 Connection SCREW CLAMP TERMINALS 2 1-6 MMA² SOLID- SCREW CLAMP TERMINALS 2 1.5-6 MMA² FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA² FLEXIBLE WITH CABLE END Connection Type Screw Clamp Control Type Pushbutton Country of Origin TH Currency USD Dimensions 3.5 in H x 1.77 in W x 3.09 in D Enclosure Type IP20 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 23.20 Gross Volume per Pack Metric 380.18 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.3000 lb Gross Weight per Pack Metric 228.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200020 Height 4.7000 in Height [Metric] 4.7000 cm Item Group 22367 Length 9.5000 in Length [Metric] 8.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=607270&lang=en-us Mounting BY SCREWS-BY CLIPS Number Of Poles 3 Operating Cycles 100000 Cycles Operating Temperature -20 to 60 °C Overload Relay Class 10 Ambient Compensated Bi-Metallic Phase 3 Reset Type Manual Returnable Y Series TeSys™ GV2ME Setting 0.11 to 0.16 A Size 45 MM,78.5 MM,89 MM in Standard EN/IEC 60947-2;EN/IEC 60947-4-1;UL 60947-4-1;CSA C22.2 No 60947-4-1;IEC/EN 60335-2-40:Annex JJ;IEC/EN 60335-1:Clause 30.2 Stock Status NONSTOCK Sub Brand TESYS Substitute Product Catalog Number GVAD1010 Type Circuit Breaker Thermal Magnetic UNSPSC 39121521 Voltage Rating 690 VAC Warranty Description Contractual Warranty:18 months Width 8.5000 in Width [Metric] 9.5000 cm Motor protection IK04,IP20 CONFORMING TO IEC 60529 The basic motor starter GV2ME controls motors with full load currents up to 32 A Magnetic instantaneous short circuit protection Test trip mechanism The addition of an undervoltage trip enables the motor circuit breaker to be tripped if voltage is lost The addition of a shunt trip enables remote control of tripping Provision for padlocking in the OFF position standard Fingersafe™ terminals (meets IP20 standards) The system manages motors and other electrical loads up to 40 hp Up to 20 modules and 1 bus coupler (up to 112 cm L) One click mounting on DIN rail and no need for control wiring on modules No auxiliary wiring required, thanks to full connectivity over fieldbus All adjustments and setting are digitized, no mechanical dials or dip switches Energy monitoring at load level Detect and solve issues before your machine stops Gain better insight to the operation and performance of the machine Decrease time to market, helping improve project profitability
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | GV2ME01 |
| Amperage Rating | 0.16 A |
| Application | Motor Protection |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | GV2ME01 |
| Connection | SCREW CLAMP TERMINALS 2 1-6 MMA² SOLID- SCREW CLAMP TERMINALS 2 1.5-6 MMA² FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA² FLEXIBLE WITH CABLE END |
| Connection Type | Screw Clamp |
| Control Type | Pushbutton |
| Country of Origin | TH |
| Currency | USD |
| Dimensions | 3.5 in H x 1.77 in W x 3.09 in D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 23.20 |
| Gross Volume per Pack Metric | 380.18 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.3000 lb |
| Gross Weight per Pack Metric | 228.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.7000 in |
| Height [Metric] | 4.7000 cm |
| Item Group | 22367 |
| Length | 9.5000 in |
| Length [Metric] | 8.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=607270&lang=en-us |
| Mounting | BY SCREWS-BY CLIPS |
| Number Of Poles | 3 |
| Operating Cycles | 100000 Cycles |
| Operating Temperature | -20 to 60 °C |
| Overload Relay | Class 10 Ambient Compensated Bi-Metallic |
| Phase | 3 |
| Reset Type | Manual |
| Returnable | Y |
| Series | TeSys™ GV2ME |
| Setting | 0.11 to 0.16 A |
| Size | 45 MM,78.5 MM,89 MM in |
| Standard | EN/IEC 60947-2;EN/IEC 60947-4-1;UL 60947-4-1;CSA C22.2 No 60947-4-1;IEC/EN 60335-2-40:Annex JJ;IEC/EN 60335-1:Clause 30.2 |
| Stock Status | NONSTOCK |
| Sub Brand | TESYS |
| Substitute Product Catalog Number | GVAD1010 |
| Type | Circuit Breaker Thermal Magnetic |
| UNSPSC | 39121521 |
| Voltage Rating | 690 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.5000 in |
| Width [Metric] | 9.5000 cm |
| Motor protection |
| IK04,IP20 CONFORMING TO IEC 60529 |
| The basic motor starter GV2ME controls motors with full load currents up to 32 A |
| Magnetic instantaneous short circuit protection |
| Test trip mechanism |
| The addition of an undervoltage trip enables the motor circuit breaker to be tripped if voltage is lost |
| The addition of a shunt trip enables remote control of tripping |
| Provision for padlocking in the OFF position standard |
| Fingersafe™ terminals (meets IP20 standards) |
| The system manages motors and other electrical loads up to 40 hp |
| Up to 20 modules and 1 bus coupler (up to 112 cm L) |
| One click mounting on DIN rail and no need for control wiring on modules |
| No auxiliary wiring required, thanks to full connectivity over fieldbus |
| All adjustments and setting are digitized, no mechanical dials or dip switches |
| Energy monitoring at load level |
| Detect and solve issues before your machine stops |
| Gain better insight to the operation and performance of the machine |
| Decrease time to market, helping improve project profitability |
