Square D™

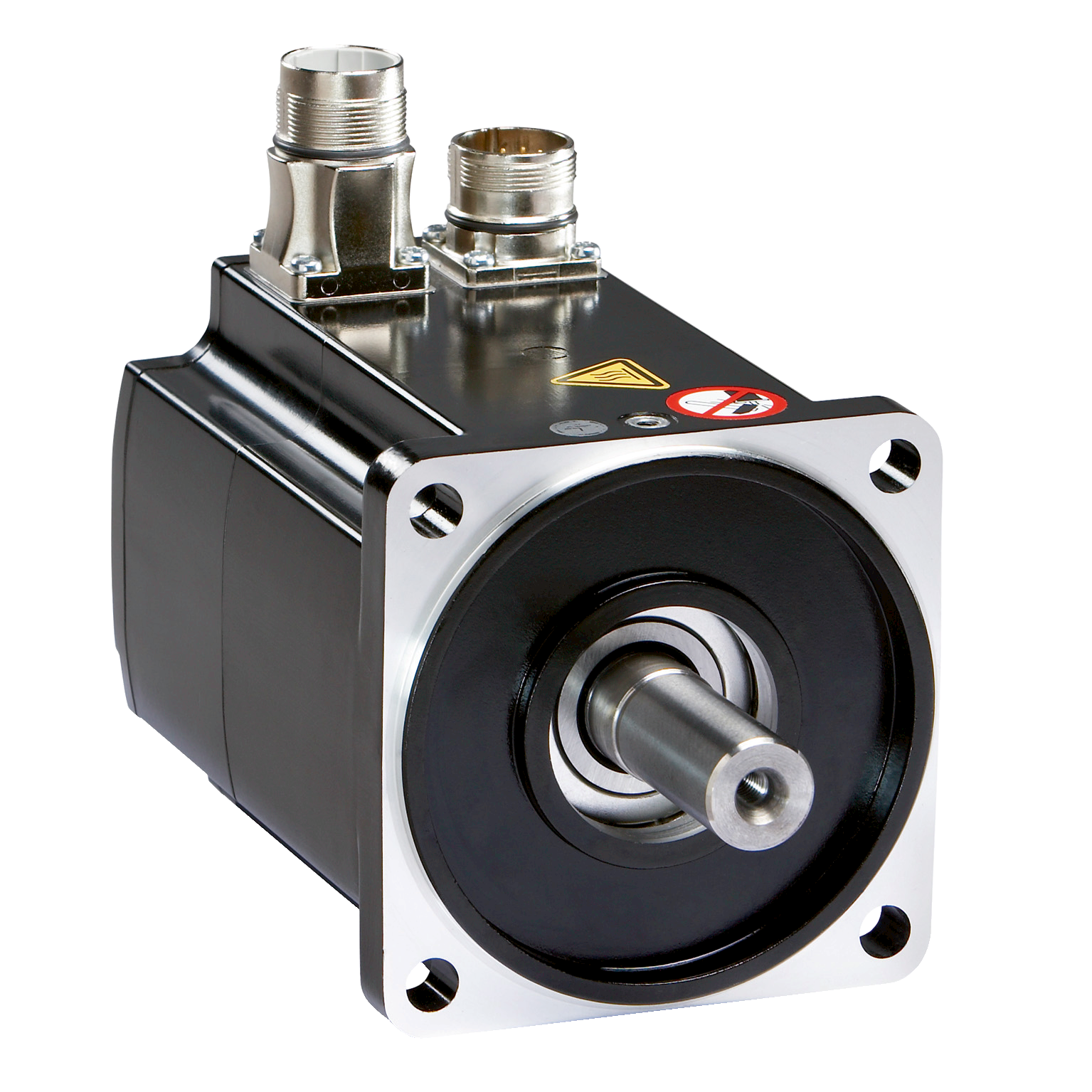

Schneider Electric BMH2053P01A2A BMH Series 3-Stack 10-Poles Smooth Shaft, 480 V, 72 A, 1200 rpm speed, Flange mount
Square D™
Schneider Electric BMH2053P01A2A BMH Series 3-Stack 10-Poles Smooth Shaft, 480 V, 72 A, 1200 rpm speed, Flange mount
SKUPDW~13593964
MFGR #BMH2053P01A2A
$/ea
Schneider Electric BMH2053P01A2A, 3-Stack 10-Poles Smooth Shaft, BMH Series, 131072 Points/Turn Special Features, 480 V, 72 A, 1200 rpm Speed, IP54 Enclosure, 1.50 in x 3.15 in L Shaft, 84 N-m Torque, Flange Mounting
Schneider Electric BMH2053P01A2A, 3-Stack 10-Poles Smooth Shaft, BMH Series, 131072 Points/Turn Special Features, 480 V, 72 A, 1200 rpm Speed, IP54 Enclosure, 1.50 in x 3.15 in L Shaft, 84 N-m Torque, Flange Mounting
Alternate Catalog Number BMH2053P01A2A ARRA Compliant N Buy American Compliant N Catalog Number BMH2053P01A2A Country of Origin DE Currency USD EU RoHS Indicator Y Gross Volume Per Pack 61.02 Gross Volume per Pack Metric 1000.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.7100 lb Gross Weight per Pack Metric 71.00 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8501524000 Height 36.0000 in Height [Metric] 36.0000 cm Length 73.0000 in Length [Metric] 73.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6537693&lang=en-us Returnable N Substitute Product Catalog Number VW3A7601R20 UNSPSC 26101205 Warranty Description Contractual Warranty:18 months Width 31.0000 in Width [Metric] 31.0000 cm Brand Square D™ Manufacturer Schneider Electric Three book-size servo drive models and two servo motor families plus a full range of intelligent options Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance A speed bandwidth of 1,600 Hz provides outstanding response With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume This saves on cabinet space and size, reduces the machine footprint and decreases costs Powerful integration software simplifies the entire process from planning to commissioning The new Autotuning function makes tuning easier than ever before Lexium 32 offers a host of features for rapid installation and maintenance Lexium 32 supports a wide selection of interfaces for fast integration into architectures Leverage the full power of existing assets such as applications or legacy motors Leverage the full power of existing assets such as applications or legacy motors "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2) Without holding brake 6500 W LXM32.D72N4 24 A, 400 V, three phase6500 W LXM32.D72N4 24 A, 480 V, three phase nominal output power Without second shaft end second shaft Single turn SinCos Hiperface feedback type 87 in (205 mm) motor flange size 218 V/krpm 248 deg F (120 deg C) back emf constant 190 kg.cm2 rotor inertia
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | BMH2053P01A2A |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | BMH2053P01A2A |
| Country of Origin | DE |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 61.02 |
| Gross Volume per Pack Metric | 1000.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.7100 lb |
| Gross Weight per Pack Metric | 71.00 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8501524000 |
| Height | 36.0000 in |
| Height [Metric] | 36.0000 cm |
| Length | 73.0000 in |
| Length [Metric] | 73.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6537693&lang=en-us |
| Returnable | N |
| Substitute Product Catalog Number | VW3A7601R20 |
| UNSPSC | 26101205 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 31.0000 in |
| Width [Metric] | 31.0000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Three book-size servo drive models and two servo motor families plus a full range of intelligent options |
| Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance |
| A speed bandwidth of 1,600 Hz provides outstanding response |
| With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume |
| This saves on cabinet space and size, reduces the machine footprint and decreases costs |
| Powerful integration software simplifies the entire process from planning to commissioning |
| The new Autotuning function makes tuning easier than ever before |
| Lexium 32 offers a host of features for rapid installation and maintenance |
| Lexium 32 supports a wide selection of interfaces for fast integration into architectures |
| Leverage the full power of existing assets such as applications or legacy motors |
| Leverage the full power of existing assets such as applications or legacy motors |
| "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring |
| The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2) |
| Without holding brake |
| 6500 W LXM32.D72N4 24 A, 400 V, three phase6500 W LXM32.D72N4 24 A, 480 V, three phase nominal output power |
| Without second shaft end second shaft |
| Single turn SinCos Hiperface feedback type |
| 87 in (205 mm) motor flange size |
| 218 V/krpm 248 deg F (120 deg C) back emf constant |
| 190 kg.cm2 rotor inertia |
