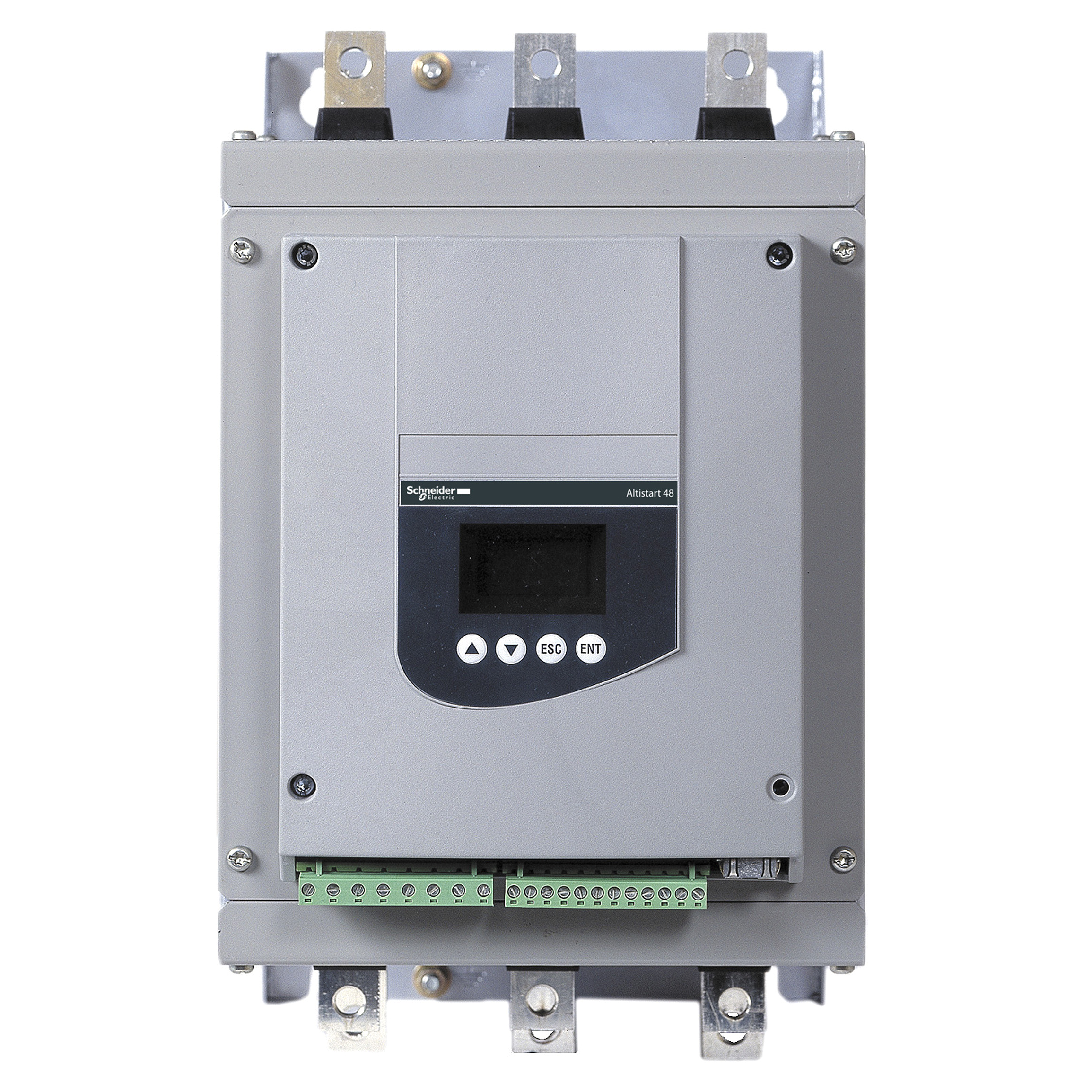

Schneider Electric Altistart® 48 ATS48C17Y Open Style Soft Starter, 110/230 VAC, IP00
Custom_Product_Images_Illustration
Schneider Electric Altistart® 48 ATS48C17Y Open Style Soft Starter, 110/230 VAC, IP00
SKU256702
MFGR #ATS48C17Y
Your Cost: $4,140.00/ea
Schneider Electric ATS48C17Y SOFT START 208-690VAC 170A ATS48,-10...40 deg.C without derating-> 40...60 deg.C with current derating of 2 per deg.C-> 40...60 deg.C with current derating of 2 per deg.C,1 to 60 seconds (adjustable),170A,24V,50HP208V - 60HP230V - 125HP460V - 150HP575V,Altistart 48,IEC/EN 60947-4-2, EMC classes A and B, CE,UL ,CSA,DNV,C-Tick,GOST, CCC,NOM,SERPRO AND TCF,IP00,external bypass (optional),soft starter,pumping and ventilation machine-severe and standard applications
Schneider Electric ATS48C17Y SOFT START 208-690VAC 170A ATS48,-10...40 deg.C without derating-> 40...60 deg.C with current derating of 2 per deg.C-> 40...60 deg.C with current derating of 2 per deg.C,1 to 60 seconds (adjustable),170A,24V,50HP208V - 60HP230V - 125HP460V - 150HP575V,Altistart 48,IEC/EN 60947-4-2, EMC classes A and B, CE,UL ,CSA,DNV,C-Tick,GOST, CCC,NOM,SERPRO AND TCF,IP00,external bypass (optional),soft starter,pumping and ventilation machine-severe and standard applications
Alternate Catalog Number ATS48C17Y Amperage Rating 170 A Application ASYNCHRONOUS MOTORS ARRA Compliant N Buy American Compliant N Catalog Number ATS48C17Y Connection In the motor supply line Connection Type Plug-In Country of Origin ID Currency USD Dimensions 13.39 in H x 7.87 in W x 10.43 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 3679.83 Gross Volume per Pack Metric 60301.37 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 32.2800 lb Gross Weight per Pack Metric 14.92 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 13.26 in Height [Metric] 34.0000 cm Item Group 22579 Length 17.94 in Length [Metric] 46.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=714950&lang=en-us Motor Power 50 hp Operating Temperature -10 to 40 °C Phase 3 pH Power Supply 208...690 V - 15...10 ,50...60 HZ - 5...5 Returnable N Size 200 MM,265 MM,340 MM in Standard 1 GN 13-200 HZ)EN/IEC 60068-2-6-1.5 MM 2-13 HZ)EN/IEC 60068-2-6,15 GN 11 MS EN/IEC 60068-2-27,EN/IEC 60947-4-2,GOST-CCC-C-TICK-TCF-SEPRO-NOM 117-UL-CSA-DNV,IP00 Sub Brand ATS48 Substitute Product Catalog Number VW3G48101 UNSPSC 39121521 UPC 11 78590198238 UPC 12 785901982388 Voltage Rating 208 to 690 VAC Warranty Description Contractual Warranty:18 months Wattage 37/160 kW Width 16.77 in Width [Metric] 43.0000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Coil Voltage 110/230 VAC Enclosure Type IP00 Type Standard Duty ASYNCHRONOUS MOTORS EXTERNAL BYPASS (OPTIONAL) The Altistart® 48 soft start/soft stop unit is a cost-effective solution Reduce machine operating costs by reducing mechanical stress and improving machine availability The Altistart® 48 soft start/soft stop unit 1 is supplied ready for use in a standard application with Class 10 motor protection Exclusive Altistart® torque control Constant control of the torque supplied to the motor during acceleration and deceleration periods Ease of adjusting the ramp and the starting torque Wide frequency tolerance for generator set power supplies Built-in motor thermal protection 50 hp at 208 VAC, 60 hp at 230 VAC, 125 hp at 460 VAC, 150 hp at 575 VAC motor power
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATS48C17Y |
| Amperage Rating | 170 A |
| Application | ASYNCHRONOUS MOTORS |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ATS48C17Y |
| Connection | In the motor supply line |
| Connection Type | Plug-In |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 13.39 in H x 7.87 in W x 10.43 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3679.83 |
| Gross Volume per Pack Metric | 60301.37 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 32.2800 lb |
| Gross Weight per Pack Metric | 14.92 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 13.26 in |
| Height [Metric] | 34.0000 cm |
| Item Group | 22579 |
| Length | 17.94 in |
| Length [Metric] | 46.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=714950&lang=en-us |
| Motor Power | 50 hp |
| Operating Temperature | -10 to 40 °C |
| Phase | 3 pH |
| Power Supply | 208...690 V - 15...10 ,50...60 HZ - 5...5 |
| Returnable | N |
| Size | 200 MM,265 MM,340 MM in |
| Standard | 1 GN 13-200 HZ)EN/IEC 60068-2-6-1.5 MM 2-13 HZ)EN/IEC 60068-2-6,15 GN 11 MS EN/IEC 60068-2-27,EN/IEC 60947-4-2,GOST-CCC-C-TICK-TCF-SEPRO-NOM 117-UL-CSA-DNV,IP00 |
| Sub Brand | ATS48 |
| Substitute Product Catalog Number | VW3G48101 |
| UNSPSC | 39121521 |
| UPC 11 | 78590198238 |
| UPC 12 | 785901982388 |
| Voltage Rating | 208 to 690 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 37/160 kW |
| Width | 16.77 in |
| Width [Metric] | 43.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Coil Voltage | 110/230 VAC |
| Enclosure Type | IP00 |
| Type | Standard Duty |
| ASYNCHRONOUS MOTORS |
| EXTERNAL BYPASS (OPTIONAL) |
| The Altistart® 48 soft start/soft stop unit is a cost-effective solution |
| Reduce machine operating costs by reducing mechanical stress and improving machine availability |
| The Altistart® 48 soft start/soft stop unit 1 is supplied ready for use in a standard application with Class 10 motor protection |
| Exclusive Altistart® torque control |
| Constant control of the torque supplied to the motor during acceleration and deceleration periods |
| Ease of adjusting the ramp and the starting torque |
| Wide frequency tolerance for generator set power supplies |
| Built-in motor thermal protection |
| 50 hp at 208 VAC, 60 hp at 230 VAC, 125 hp at 460 VAC, 150 hp at 575 VAC motor power |
