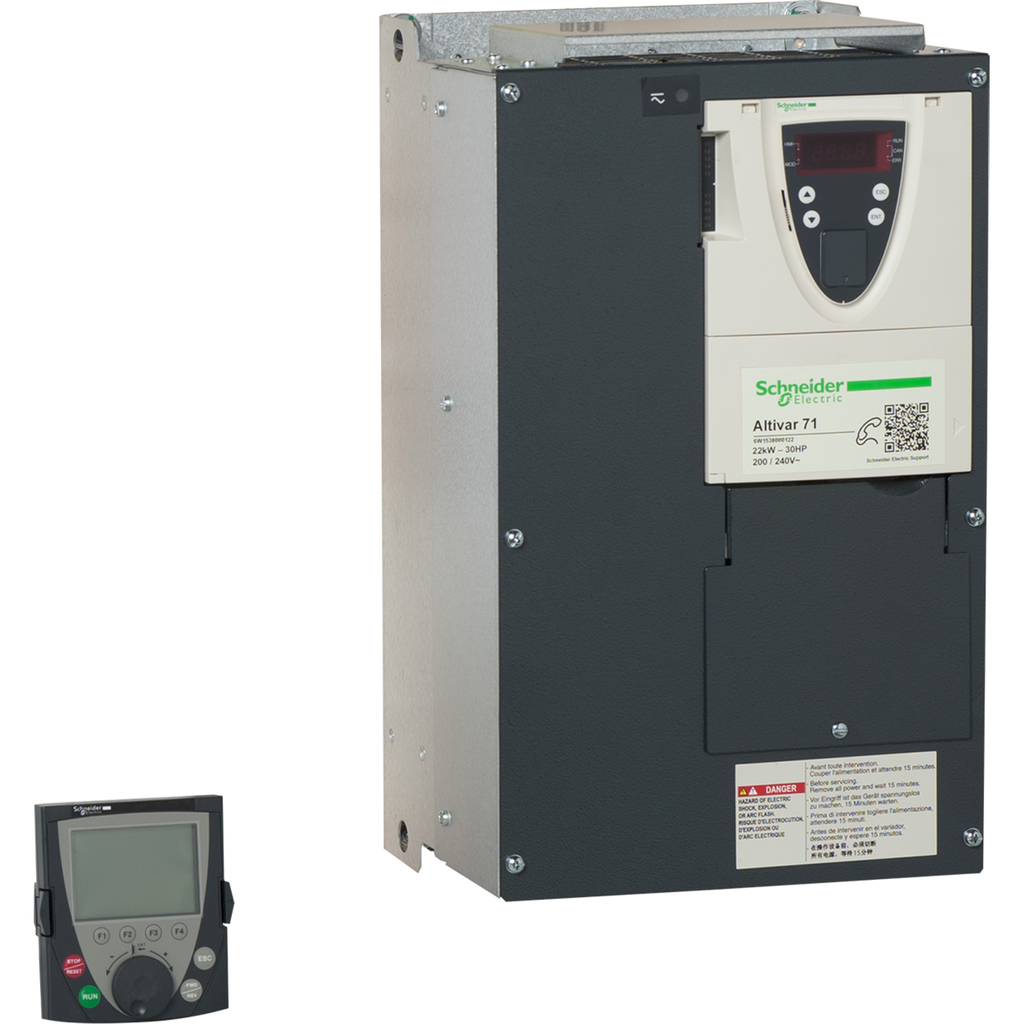

Schneider Electric ATV71HD22M3X SPEED DRIVE, 30HP,
Custom_Product_Images_Illustration
Schneider Electric ATV71HD22M3X SPEED DRIVE, 30HP,
SKU296211
MFGR #ATV71HD22M3X
Your Cost: $6,510.42/ea
Schneider Electric ATV71HD22M3X SPEED DRIVE, 30HP, 230V, ATV71,208/240VAC,220 of nominal motor torque for 2 seconds, 170 for 60 seconds,22kW,3 phases,3-Phase,3-Phase,88A 30HP,AC Drive,AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5 mmA? / AWG 14L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB terminal 50 mmA? / AWG 1/0,Altivar 71,Altivar 71,Constant Torque,Frame 6,Graphic display keypad,IP20,Input 50/60 Hz,UL, CSA, CE, ABS, DNV, GOST, RoHS, WEEE, C-Tick, NOM 117
Schneider Electric ATV71HD22M3X SPEED DRIVE, 30HP, 230V, ATV71,208/240VAC,220 of nominal motor torque for 2 seconds, 170 for 60 seconds,22kW,3 phases,3-Phase,3-Phase,88A 30HP,AC Drive,AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5 mmA? / AWG 14L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB terminal 50 mmA? / AWG 1/0,Altivar 71,Altivar 71,Constant Torque,Frame 6,Graphic display keypad,IP20,Input 50/60 Hz,UL, CSA, CE, ABS, DNV, GOST, RoHS, WEEE, C-Tick, NOM 117
Amperage Rating 80/88 A Application CONSTANT TORQUE ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number ATV71HD22M3X Control +/- 0.01 OF NOMINAL SPEED IN CLOSED-LOOP MODE WITH ENCODER FEEDBACK 0.2 TN TO TN-+/- 10 OF NOMINAL SLIP WITHOUT SPEED FEEDBACK 0.2 TN TO TN Country of Origin IN Depth 9.29 in Display GRAPHIC DISPLAY KEYPAD Display Type Graphic Display Keypad Enclosure IP20 Enclosure Type IP20/IP21/IP41/IP54 Environmental Conditions -10-50 A°C WITHOUT) EU RoHS Indicator Y Gross Weight Per Pack 52.8000 lb Harmonization Tariff Schedule Code 8504404000 Height 16.54 in Horsepower 30 hp Item Group 22131 Manufacturer Schneider Electric Mounting Type Panel Returnable Y Series Altivar™ 71 Size FRAME 6 Standard UL, CSA, CE, ABS, DNV, GOST, ROHS, WEEE, C-TICK, NOM 117 Stock Status NONSTOCK Sub Brand ALTIVAR 71 Type 3-Phase UNSPSC 39122001 UPC 11 78590169779 UPC 12 785901697794 Voltage Rating 208/240 VAC Width 9.45 in CONSTANT TORQUE 88A 30HP Protection of motor and of drive Power removal, ATEX safety functions Integrated EMC filter class A I/O extension cards, interface cards for encoder, controller inside programmable card Controller inside programmable card 30 hp at 200 to 240 VAC 3 ph horsepower rating 80 A at 240 VAC 3 ph 22 kW/30 hp, 88 A at 200 VAC 3 ph 22 kW/30 hp amperage rating 88 A at 30 hp amperage rating Without EMC filter
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 80/88 A |
| Application | CONSTANT TORQUE |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | ATV71HD22M3X |
| Control | +/- 0.01 OF NOMINAL SPEED IN CLOSED-LOOP MODE WITH ENCODER FEEDBACK 0.2 TN TO TN-+/- 10 OF NOMINAL SLIP WITHOUT SPEED FEEDBACK 0.2 TN TO TN |
| Country of Origin | IN |
| Depth | 9.29 in |
| Display | GRAPHIC DISPLAY KEYPAD |
| Display Type | Graphic Display Keypad |
| Enclosure | IP20 |
| Enclosure Type | IP20/IP21/IP41/IP54 |
| Environmental Conditions | -10-50 A°C WITHOUT) |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 52.8000 lb |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 16.54 in |
| Horsepower | 30 hp |
| Item Group | 22131 |
| Manufacturer | Schneider Electric |
| Mounting Type | Panel |
| Returnable | Y |
| Series | Altivar™ 71 |
| Size | FRAME 6 |
| Standard | UL, CSA, CE, ABS, DNV, GOST, ROHS, WEEE, C-TICK, NOM 117 |
| Stock Status | NONSTOCK |
| Sub Brand | ALTIVAR 71 |
| Type | 3-Phase |
| UNSPSC | 39122001 |
| UPC 11 | 78590169779 |
| UPC 12 | 785901697794 |
| Voltage Rating | 208/240 VAC |
| Width | 9.45 in |
| CONSTANT TORQUE |
| 88A 30HP |
| Protection of motor and of drive |
| Power removal, ATEX safety functions |
| Integrated EMC filter class A |
| I/O extension cards, interface cards for encoder, controller inside programmable card |
| Controller inside programmable card |
| 30 hp at 200 to 240 VAC 3 ph horsepower rating |
| 80 A at 240 VAC 3 ph 22 kW/30 hp, 88 A at 200 VAC 3 ph 22 kW/30 hp amperage rating |
| 88 A at 30 hp amperage rating |
| Without EMC filter |
