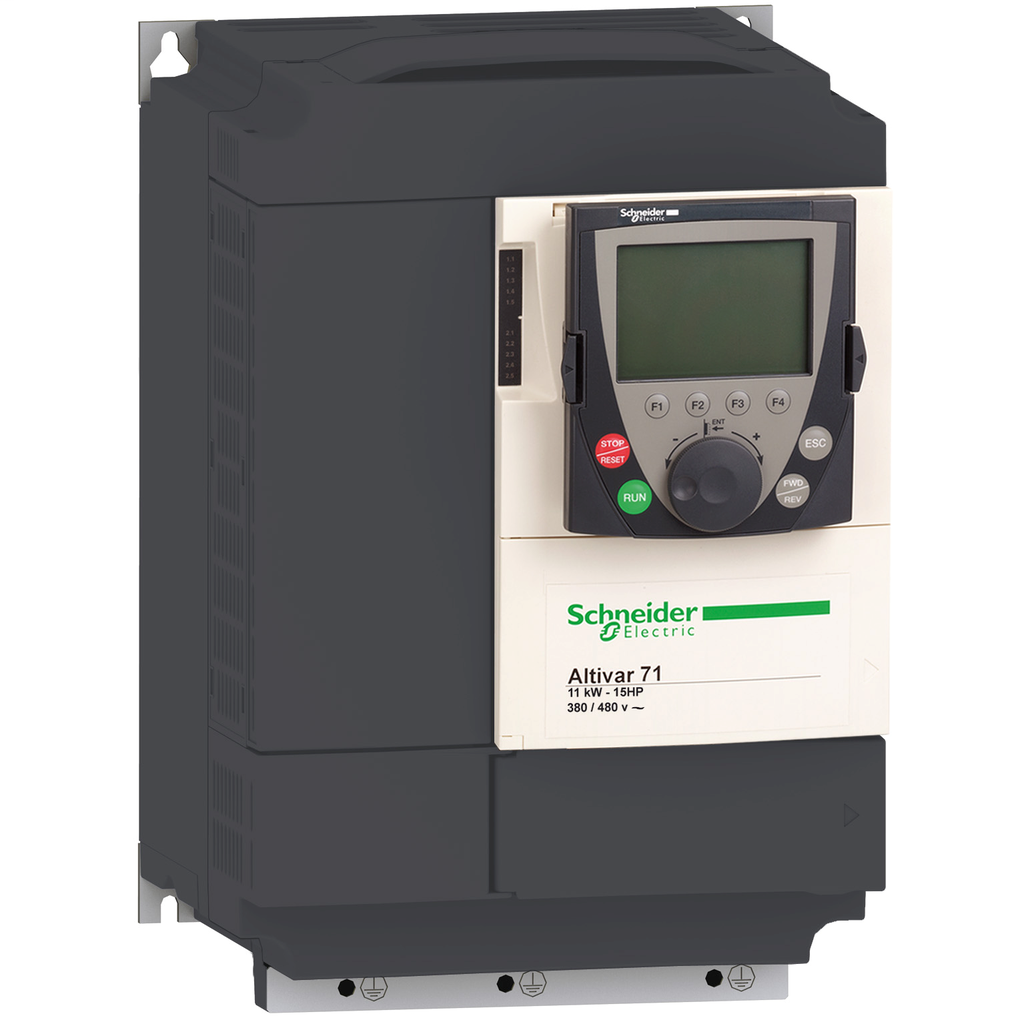

Schneider Electric ATV71HD15M3X SPEED DRIVE, 20HP,
AC Variable Frequency Drives
375012
MFG #: ATV71HD15M3XR
Schneider Electric
5071.61000
/ ea
Schneider Electric ATV71HD15M3X SPEED DRIVE, 20HP, 230V, ATV71,15kW,208/240VAC,220 of nominal motor torque for 2 seconds, 170 for 60 seconds,3 phases,3-Phase,3-Phase,66A 20HP,AC Drive,AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5 mmA? / AWG 14L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB terminal 35 mmA? / AWG 2,Altivar 71,Altivar 71,Constant Torque,Frame 5B,Graphic display keypad,IP20,Input 50/60 Hz,UL, CSA, CE, ABS, DNV, GOST, RoHS, WEEE, C-Tick, NOM 117
- Brochure URL - d4b5c808a99739821bf40e1b6871c97b5f49f0b8.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 8f7411384b740518f82d79dae86a8e445de83767.pdf(Computer~Aided [CAD|BIM] Model URL)
- ROHS Compliance URL - Schneider_Electric_ATV71HD15M3X_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - c491b6580179d5b494a59baf50ea3e60d39d7c8f.pdf(Spec Sheet URL)
- Tech Drawing URL - 3471f3a043144e90e8a8e52b1f97c56664a521bc(Tech Drawing URL)
- User Manual URL - 89d1333205d08274650a7939d5833cc950c2f599.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/Avmxgw6eeh8(Video)
- Applications
- Features
| CONSTANT TORQUE |
| 66A 20HP |
| Protection of motor and of drive |
| Power removal, ATEX safety functions |
| Integrated EMC filter class A |
| I/O extension cards, interface cards for encoder, controller inside programmable card |
| Controller inside programmable card |
| 20 hp at 200 to 240 VAC 3 ph horsepower rating |
| 61.6 A at 240 VAC 3 ph 15 kW/20 hp, 71.7 A at 200 VAC 3 ph 15 kW/20 hp amperage rating |
| 66 A at 20 hp amperage rating |
| Without EMC filter |
