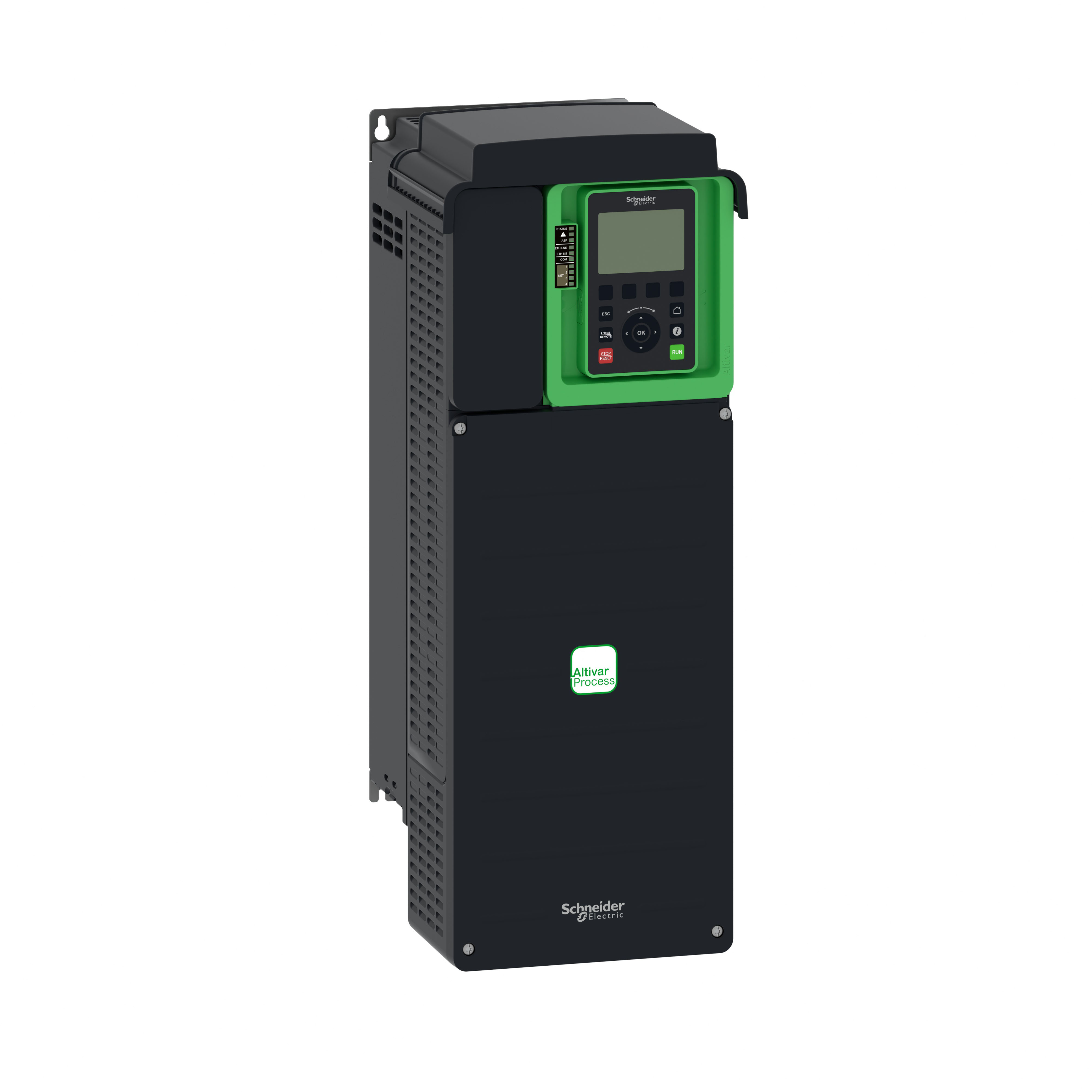

Schneider Electric ATV630D22N4 AC Variable Frequency Drives
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric ATV630D22N4 AC Variable Frequency Drives
SKU966010
MFGR #ATV630D22N4
Your Cost: $5,133.11/ea
List: Schneider Electric ATV630D22N4 ATV630 TYPE1 460V 30 HP,Altivar Process ATV600,Altivar Process ATV600,Ethernet-Modbus serial-Modbus TCP,Ethernet-Modbus serial-Modbus TCP,process and utilities,variable speed drive
Schneider Electric ATV630D22N4 ATV630 TYPE1 460V 30 HP,Altivar Process ATV600,Altivar Process ATV600,Ethernet-Modbus serial-Modbus TCP,Ethernet-Modbus serial-Modbus TCP,process and utilities,variable speed drive
Alternate Catalog Number ATV630D22N4 Amperage Rating 29.9/34.1/34.4/39.6 A Application Asynchronous motors;synchronous motors;Process and utilities; ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number ATV630D22N4 Communication Modbus TCP;Ethernet;Modbus serial Country of Origin IN Currency USD Depth 9.13 in Display for local diagnostic 3 LEDs; for embedded communication status 3 LEDs (dual colour); for communication module status 4 LEDs (dual colour); for presence of voltage 1 LED (red) Display Type Remote Graphic Enclosure Type NEMA 1/IP20/IP21 Environmental Conditions -15-50 A°C WITHOUT)-50-60 A°C WITH DERATING FACTOR),CHEMICAL POLLUTION RESISTANCE CLASS 3C3 EN/IEC 60721-3-3-DUST POLLUTION RESISTANCE CLASS 3S3 EN/IEC 60721-3-3 EU RoHS Indicator Y Gross Volume Per Pack 4153.28 Gross Volume per Pack Metric 68059.80 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 38.7600 lb Gross Weight per Pack Metric 17.58 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 33.5000 in Height [Metric] 90.0000 cm Horsepower 25 hp, 30 hp Input Voltage 380...480 V - 15...10 % Item Group 22206 Length 73.5000 in Length [Metric] 80.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=415884287&lang=en-us Mounting Wall mount Mounting Type Wall Number Of Phases 3 Returnable Y Series Altivar™ Process 630 Size 211 MM,232 MM,546 MM in Standard IP21IEC 61800-5-1;IP21IEC 60529 Stock Status NORMALLY STOCKED Sub Brand ATV630 Substitute Product Catalog Number VW3A1112 Type 3-Phase Type 1 Standard UNSPSC 39122001 UPC 11 78590137601 UPC 12 785901376019 Voltage Rating 460 VAC Width 26.0000 in Width [Metric] 60.0000 cm Asynchronous motors;synchronous motors;Process and utilities; Optimized torque mode;constant torque standard;variable torque standard;STO (safe torque off) SIL 3;16 preset speeds;Forced convection;Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16;motor screw terminal 16 mm² AWG 6;line side screw terminal 10...16 mm² AWG 8...AWG 6;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection Accurate measurement for monitoring system energy consumption (deviation <5%) Installation energy drift detection Embedded Ethernet with direct access to system configuration and monitoring Integration of actual pump curves to optimize the system operating point Optimized pump monitoring based on actual operating point Sensorless estimated flow rate Measurements expressed in working units Limitation of overvoltage at the motor terminals Contextual access to technical documentation through dynamic QR code Continuous and historical real-time measurements with customizable dashboards Predictive and preventive maintenance tracking functions (e.g.: temperatures with PT100/1000 probe, fan monitoring) 30 hp at normal duty, 25 hp at heavy duty horsepower rating 39.6 A at 380 VAC normal duty, 34.4 A at 480 VAC normal duty, 34.1 A at 380 VAC heavy duty, 29.9 A at 480 VAC heavy duty amperage rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV630D22N4 |
| Amperage Rating | 29.9/34.1/34.4/39.6 A |
| Application | Asynchronous motors;synchronous motors;Process and utilities; |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | ATV630D22N4 |
| Communication | Modbus TCP;Ethernet;Modbus serial |
| Country of Origin | IN |
| Currency | USD |
| Depth | 9.13 in |
| Display | for local diagnostic 3 LEDs; for embedded communication status 3 LEDs (dual colour); for communication module status 4 LEDs (dual colour); for presence of voltage 1 LED (red) |
| Display Type | Remote Graphic |
| Enclosure Type | NEMA 1/IP20/IP21 |
| Environmental Conditions | -15-50 A°C WITHOUT)-50-60 A°C WITH DERATING FACTOR),CHEMICAL POLLUTION RESISTANCE CLASS 3C3 EN/IEC 60721-3-3-DUST POLLUTION RESISTANCE CLASS 3S3 EN/IEC 60721-3-3 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 4153.28 |
| Gross Volume per Pack Metric | 68059.80 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 38.7600 lb |
| Gross Weight per Pack Metric | 17.58 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 33.5000 in |
| Height [Metric] | 90.0000 cm |
| Horsepower | 25 hp, 30 hp |
| Input Voltage | 380...480 V - 15...10 % |
| Item Group | 22206 |
| Length | 73.5000 in |
| Length [Metric] | 80.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=415884287&lang=en-us |
| Mounting | Wall mount |
| Mounting Type | Wall |
| Number Of Phases | 3 |
| Returnable | Y |
| Series | Altivar™ Process 630 |
| Size | 211 MM,232 MM,546 MM in |
| Standard | IP21IEC 61800-5-1;IP21IEC 60529 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | ATV630 |
| Substitute Product Catalog Number | VW3A1112 |
| Type | 3-Phase Type 1 Standard |
| UNSPSC | 39122001 |
| UPC 11 | 78590137601 |
| UPC 12 | 785901376019 |
| Voltage Rating | 460 VAC |
| Width | 26.0000 in |
| Width [Metric] | 60.0000 cm |
| Asynchronous motors;synchronous motors;Process and utilities; |
| Optimized torque mode;constant torque standard;variable torque standard;STO (safe torque off) SIL 3;16 preset speeds;Forced convection;Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16;motor screw terminal 16 mm² AWG 6;line side screw terminal 10...16 mm² AWG 8...AWG 6;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection |
| Accurate measurement for monitoring system energy consumption (deviation <5%) |
| Installation energy drift detection |
| Embedded Ethernet with direct access to system configuration and monitoring |
| Integration of actual pump curves to optimize the system operating point |
| Optimized pump monitoring based on actual operating point |
| Sensorless estimated flow rate |
| Measurements expressed in working units |
| Limitation of overvoltage at the motor terminals |
| Contextual access to technical documentation through dynamic QR code |
| Continuous and historical real-time measurements with customizable dashboards |
| Predictive and preventive maintenance tracking functions (e.g.: temperatures with PT100/1000 probe, fan monitoring) |
| 30 hp at normal duty, 25 hp at heavy duty horsepower rating |
| 39.6 A at 380 VAC normal duty, 34.4 A at 480 VAC normal duty, 34.1 A at 380 VAC heavy duty, 29.9 A at 480 VAC heavy duty amperage rating |
