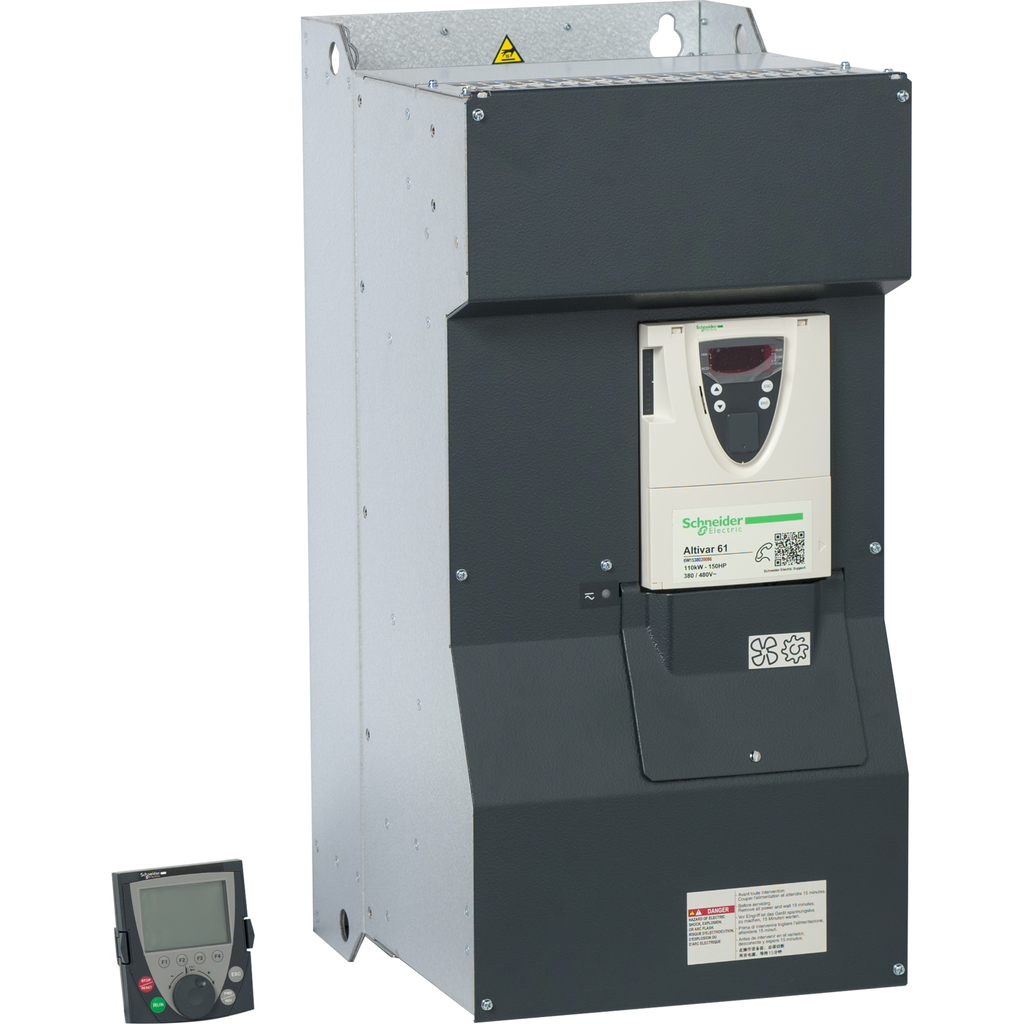

Schneider Electric ATV61HC11N4D SPEED DRIVE 150 HP
AC Drives
521928
MFG #: ATV61HC11N4D
Schneider Electric
15010.29000
/ ea
Schneider Electric ATV61HC11N4D SPEED DRIVE 150 HP 460VATV61 NO DC CHOKE,110kW,150 of nominal motor torque for 2 seconds, 110 for 60 seconds,215A 150HP,3 phases,3-Phase,3-Phase,400/480VAC,AC Drive,AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5 mmA? / AWG 14L1/R, L2/S, L3/T, U/T1, V/T2, W/T3 terminal 2 x 100 mmA? / 2 x 250 kcmilPA, PB terminal 60 mmA? / 250 kcmilPC/-, PO, PA/+ terminal 2 x 100 mmA? / 2 x 250 kcmil,Altivar 61,Altivar 61,Frame 9,Graphic display keypad,IP20,Input 50/60 Hz,UL, CSA, CE, ABS, DNV, GOST, RoHS, WEEE, C-Tick, NOM 117,Variable Torque
- Catalog URL - IDW_DOCUMENT_cc5d7bfefd7aed295864c73681b441e14f3ba44ab641072619ff69c1c2239f20.pdf(Catalog URL)
- ROHS Compliance URL - Schneider_Electric_ATV61HC11N4D_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - ATV61HC11N4D(Spec Sheet URL)
- Tech Drawing URL - 1bd65991fd15f51adece364285f3e82472dd762b.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/lgKQzguIUQc(Video)
- Features
| 215A 150HP |
| Energy saving law, quadratic motor control law |
| Modbus and CANopen integrated |
| Input/output extension cards |
| SoMove mobile software for modifying or sending a configuration remotely via mobile phone |
| SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable |
| 150 hp 3 ph at 380 to 480 VAC horsepower rating |
| 163 A at 480 VAC 3 ph 110 kW/150 hp, 202 A at 380 VAC 3 ph 110 kW/150 hp amperage rating |
| Without DC choke |
| 215 A at 150 hp amperage rating |
