Schneider Electric

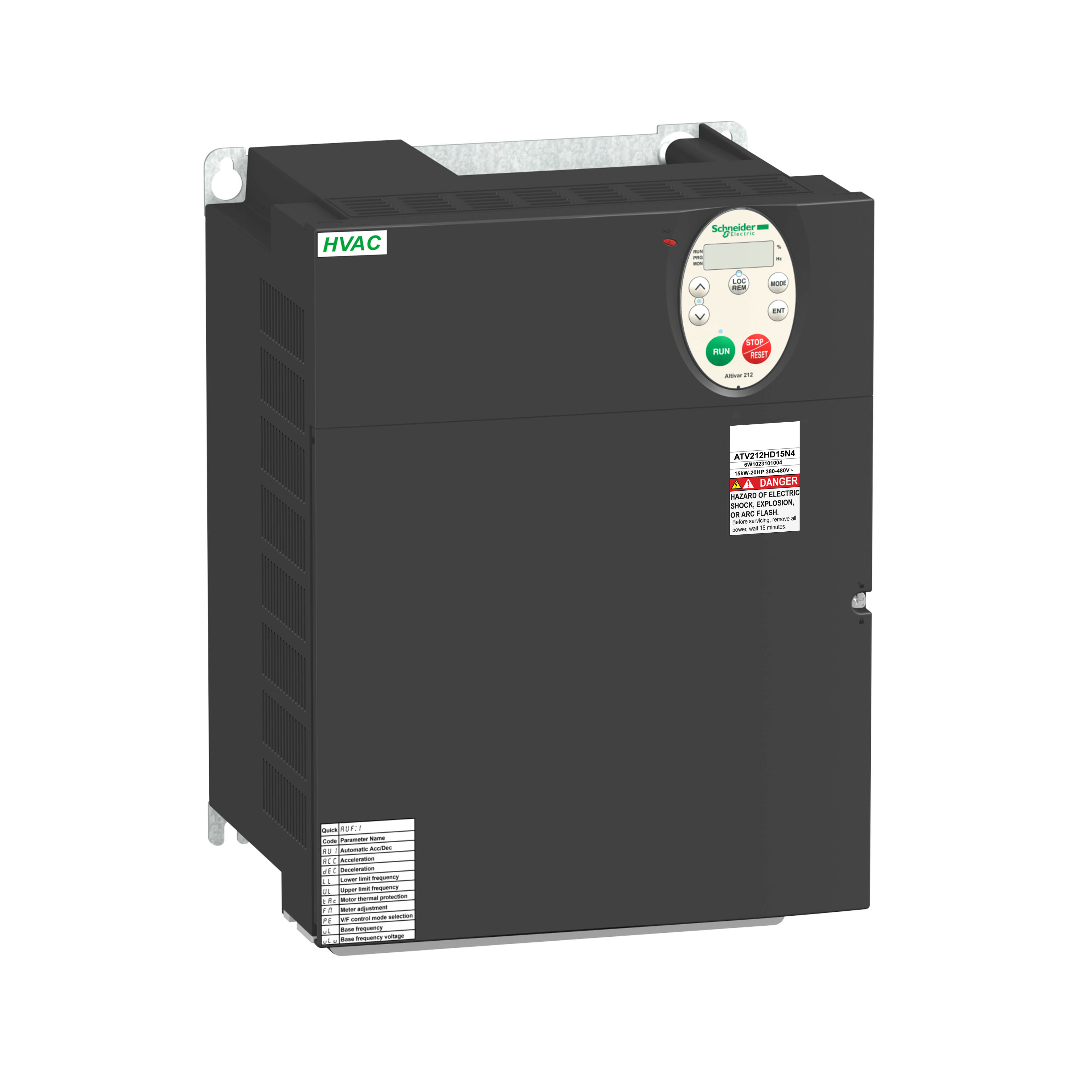

Schneider Electric ATV212HD18N4 SPEEDDRIVE 380-480
Custom_Product_Images_Illustration
Schneider Electric
Schneider Electric ATV212HD18N4 SPEEDDRIVE 380-480
SKU666810
MFGR #ATV212HD18N4
Your Cost: $2,283.24/ea
List: Schneider Electric ATV212HD18N4 SPEEDDRIVE 380-480VAC 25HP,ATV212,18.5kW,3 phases,400/480 Vac 3-Phase,Altivar 212,Altivar 212,Maximum output voltage equal to input voltage 3-Phase,Modbus-METASYS N2-LonWorks-APOGEE FLN-BACnet,Modbus-METASYS N2-LonWorks-APOGEE FLN-BACnet,pumps and fans in HVAC,Open IP20,Size 4A,variable speed drive
Schneider Electric ATV212HD18N4 SPEEDDRIVE 380-480VAC 25HP,ATV212,18.5kW,3 phases,400/480 Vac 3-Phase,Altivar 212,Altivar 212,Maximum output voltage equal to input voltage 3-Phase,Modbus-METASYS N2-LonWorks-APOGEE FLN-BACnet,Modbus-METASYS N2-LonWorks-APOGEE FLN-BACnet,pumps and fans in HVAC,Open IP20,Size 4A,variable speed drive
Alternate Catalog Number ATV212HD18N4 Application Asynchronous motors;Pumps and fans in HVAC; ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number ATV212HD18N4 Control +/- 10 OF NOMINAL SLIP 0.2 TN TO TN W Country of Origin US Currency USD Display for DC bus energized 1 LED (red) Enclosure OPEN IP20 Environmental Conditions -10-40 A°C WITHOUT)-40-50 A°C WITH DERATING FACTOR),CLASSES 3C1 IEC 60721-3-3-CLASSES 3S2 IEC 60721-3-3 EU RoHS Indicator Y Gross Volume Per Pack 2111.96 Gross Volume per Pack Metric 34608.69 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 25.5500 lb Gross Weight per Pack Metric 11.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 28.0000 in Height [Metric] 75.0000 cm Input Voltage 380...480 V - 15...10 % Item Group 22157 Length 30.0000 in Length [Metric] 80.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61737722&lang=en-us Number Of Phases 3 Power Rating 603 W Returnable Y Size 190 MM,245 MM,330 MM in Standard IP21 Stock Status NONSTOCK Sub Brand ATV212 Substitute Product Catalog Number VW3A1101 Type 1 OPEN STYLE-1 RJ45,VARIABLE SPEED DRIVE,VARIABLE SPEED DRIVE UNSPSC 39122001 UPC 11 78590192132 UPC 12 785901921325 Warranty Description Contractual Warranty:18 months Width 40.0000 in Width [Metric] 60.0000 cm Asynchronous motors;Pumps and fans in HVAC; VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14;L1/R, L2/S, L3/T terminal 25-25 mm² / AWG 3;Voltage/frequency ratio, 5 points;voltage/frequency ratio - Energy Saving, quadratic U/f;voltage/frequency ratio, 2 points;voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo);flux vector control without sensor, standard;Overheating protection drive;line supply undervoltage drive;against input phase loss drive;thermal protection motor;motor phase break motor;with PTC probes motor;thermal power stage drive;short-circuit between motor phases drive;input phase breaks drive;overcurrent between output phases and earth drive;overvoltages on the DC bus drive;break on the control circuit drive;against exceeding limit speed drive;line supply overvoltage and undervoltage drive;Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection;internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV212HD18N4 |
| Application | Asynchronous motors;Pumps and fans in HVAC; |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | ATV212HD18N4 |
| Control | +/- 10 OF NOMINAL SLIP 0.2 TN TO TN W |
| Country of Origin | US |
| Currency | USD |
| Display | for DC bus energized 1 LED (red) |
| Enclosure | OPEN IP20 |
| Environmental Conditions | -10-40 A°C WITHOUT)-40-50 A°C WITH DERATING FACTOR),CLASSES 3C1 IEC 60721-3-3-CLASSES 3S2 IEC 60721-3-3 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 2111.96 |
| Gross Volume per Pack Metric | 34608.69 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 25.5500 lb |
| Gross Weight per Pack Metric | 11.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 28.0000 in |
| Height [Metric] | 75.0000 cm |
| Input Voltage | 380...480 V - 15...10 % |
| Item Group | 22157 |
| Length | 30.0000 in |
| Length [Metric] | 80.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61737722&lang=en-us |
| Number Of Phases | 3 |
| Power Rating | 603 W |
| Returnable | Y |
| Size | 190 MM,245 MM,330 MM in |
| Standard | IP21 |
| Stock Status | NONSTOCK |
| Sub Brand | ATV212 |
| Substitute Product Catalog Number | VW3A1101 |
| Type | 1 OPEN STYLE-1 RJ45,VARIABLE SPEED DRIVE,VARIABLE SPEED DRIVE |
| UNSPSC | 39122001 |
| UPC 11 | 78590192132 |
| UPC 12 | 785901921325 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 40.0000 in |
| Width [Metric] | 60.0000 cm |
| Asynchronous motors;Pumps and fans in HVAC; |
| VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14;L1/R, L2/S, L3/T terminal 25-25 mm² / AWG 3;Voltage/frequency ratio, 5 points;voltage/frequency ratio - Energy Saving, quadratic U/f;voltage/frequency ratio, 2 points;voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo);flux vector control without sensor, standard;Overheating protection drive;line supply undervoltage drive;against input phase loss drive;thermal protection motor;motor phase break motor;with PTC probes motor;thermal power stage drive;short-circuit between motor phases drive;input phase breaks drive;overcurrent between output phases and earth drive;overvoltages on the DC bus drive;break on the control circuit drive;against exceeding limit speed drive;line supply overvoltage and undervoltage drive;Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection;internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection |
