Square D™

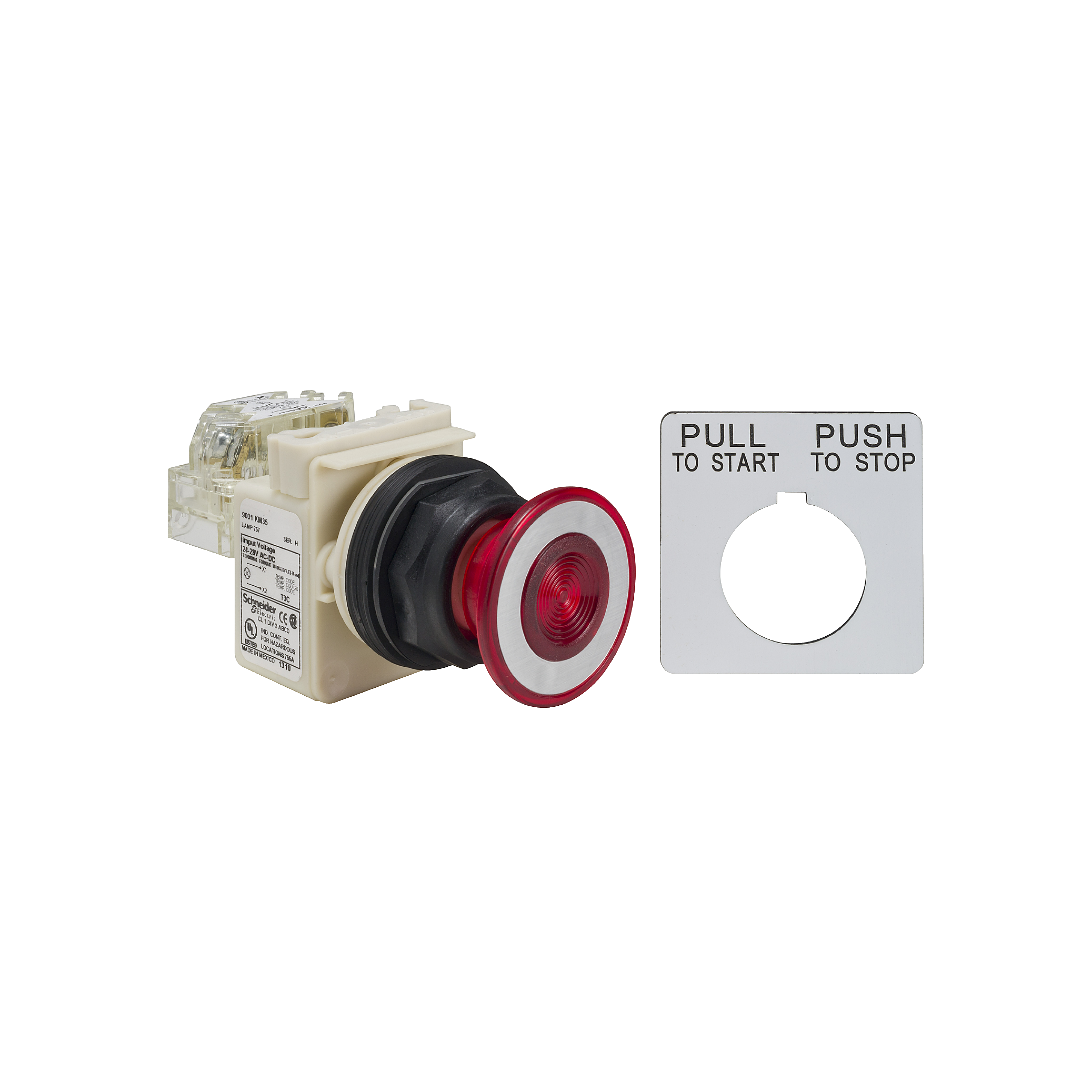

Schneider Electric 9001SKR9P35RH13 Illuminated Pushbutton, 30 mm, 1CO, Push/Pull Operator, Red
Custom_Product_Images_Illustration
Square D™
Schneider Electric 9001SKR9P35RH13 Illuminated Pushbutton, 30 mm, 1CO, Push/Pull Operator, Red
SKU287908
MFGR #9001SKR9P35RH13
Your Cost: $257.93/ea
List: Schneider Electric 9001SKR9P35RH13 PUSHBUTTON 28V 30MM SK +OPTIONS,1 NO - 1 NC,10A,30mm Round,600V,AC15 - DC13,Illuminated,K,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,illuminated push-button,maintained
Schneider Electric 9001SKR9P35RH13 PUSHBUTTON 28V 30MM SK +OPTIONS,1 NO - 1 NC,10A,30mm Round,600V,AC15 - DC13,Illuminated,K,NEMA 1/2/3/3R/4/4X/6/12/13,Panel,Pushbutton,Screw Clamp,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),black plastic,unmarked,illuminated push-button,maintained
Action PUSH-PULL Actuator Red mushroom Ø 41 mm; push-pull Alternate Catalog Number 9001SKR9P35RH13 Amperage Rating 10 A Application ILLUMINATED PUSH-BUTTON ARRA Compliant N Bezel|Housing Plastic Buy American Compliant N Catalog Number 9001SKR9P35RH13 Connection SCREW CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 Connection Type Screw Clamp Contact Mode Maintained Contact Rating 10 A at 600 VAC Country of Origin MX Currency USD Enclosure NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X Enclosure Type NEMA 1/2/3/3R/4/4X/12/13/IP66 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Volume Per Pack 21.60 Gross Volume per Pack Metric 353.96 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2900 lb Gross Weight per Pack Metric 131.50 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 5.0800 in Height [Metric] 5.1000 cm Illumination Type Incandescent Indicator BA 9S Insulation 250 V 3)IEC 60947-1 Item Group 21429 Lamp Type Incandescent Length 11.4300 in Length [Metric] 11.4000 cm Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=497249&lang=en-us Mounting Panel Mounting Type Panel Operating Temperature -25-70 A°C Returnable Y Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IEC 60947-1-CSA C22.2 NO 14-JIS C 852-UL 508-IEC 60947-5-4-JIS C 4520-EN/IEC 60947-5-1,IP66 IEC 60529-IP66 NF C 20-010 Standards UL 508CSA C22.2 No. 14JIS C 852JIS C 4520EN/IEC 60947-5-1IEC 60947-5-4IEC 60947-1RoHS Compliant Sub Brand 9001SK Substitute Product Catalog Number 9001KA2 Type ILLUMINATED MUSHROOM HEAD PUSH-BUTTON UNSPSC 39122216 UPC 11 78590104315 UPC 12 785901043157 Voltage Rating 24...28 V AC/DC Warranty Description Contractual Warranty:18 months Width 6.0960 in Width [Metric] 6.4000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Red Contact Configuration 1CO Operator Type Push/Pull Size 30 mm ILLUMINATED PUSH-BUTTON SCREW-ON PLASTIC MUSHROOM 7.08 in-lbf (0.8 N-m) conforming to IEC 60947-1 tightening torque 250 VAC (deg of pollution 3) conforming to IEC 60947-1 rated insulation voltage BA 9s bulb AC15 to DC13 contact rating Watertight, dusttight, oiltight and corrosion-resistant (indoor/outdoor) environmental conditions
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | PUSH-PULL |
| Actuator | Red mushroom Ø 41 mm; push-pull |
| Alternate Catalog Number | 9001SKR9P35RH13 |
| Amperage Rating | 10 A |
| Application | ILLUMINATED PUSH-BUTTON |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Buy American Compliant | N |
| Catalog Number | 9001SKR9P35RH13 |
| Connection | SCREW CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Connection Type | Screw Clamp |
| Contact Mode | Maintained |
| Contact Rating | 10 A at 600 VAC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP66 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 21.60 |
| Gross Volume per Pack Metric | 353.96 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2900 lb |
| Gross Weight per Pack Metric | 131.50 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 5.0800 in |
| Height [Metric] | 5.1000 cm |
| Illumination Type | Incandescent |
| Indicator | BA 9S |
| Insulation | 250 V 3)IEC 60947-1 |
| Item Group | 21429 |
| Lamp Type | Incandescent |
| Length | 11.4300 in |
| Length [Metric] | 11.4000 cm |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=497249&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IEC 60947-1-CSA C22.2 NO 14-JIS C 852-UL 508-IEC 60947-5-4-JIS C 4520-EN/IEC 60947-5-1,IP66 IEC 60529-IP66 NF C 20-010 |
| Standards | UL 508CSA C22.2 No. 14JIS C 852JIS C 4520EN/IEC 60947-5-1IEC 60947-5-4IEC 60947-1RoHS Compliant |
| Sub Brand | 9001SK |
| Substitute Product Catalog Number | 9001KA2 |
| Type | ILLUMINATED MUSHROOM HEAD PUSH-BUTTON |
| UNSPSC | 39122216 |
| UPC 11 | 78590104315 |
| UPC 12 | 785901043157 |
| Voltage Rating | 24...28 V AC/DC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 6.0960 in |
| Width [Metric] | 6.4000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Red |
| Contact Configuration | 1CO |
| Operator Type | Push/Pull |
| Size | 30 mm |
| ILLUMINATED PUSH-BUTTON |
| SCREW-ON PLASTIC MUSHROOM |
| 7.08 in-lbf (0.8 N-m) conforming to IEC 60947-1 tightening torque |
| 250 VAC (deg of pollution 3) conforming to IEC 60947-1 rated insulation voltage |
| BA 9s bulb |
| AC15 to DC13 contact rating |
| Watertight, dusttight, oiltight and corrosion-resistant (indoor/outdoor) environmental conditions |
