Square D™

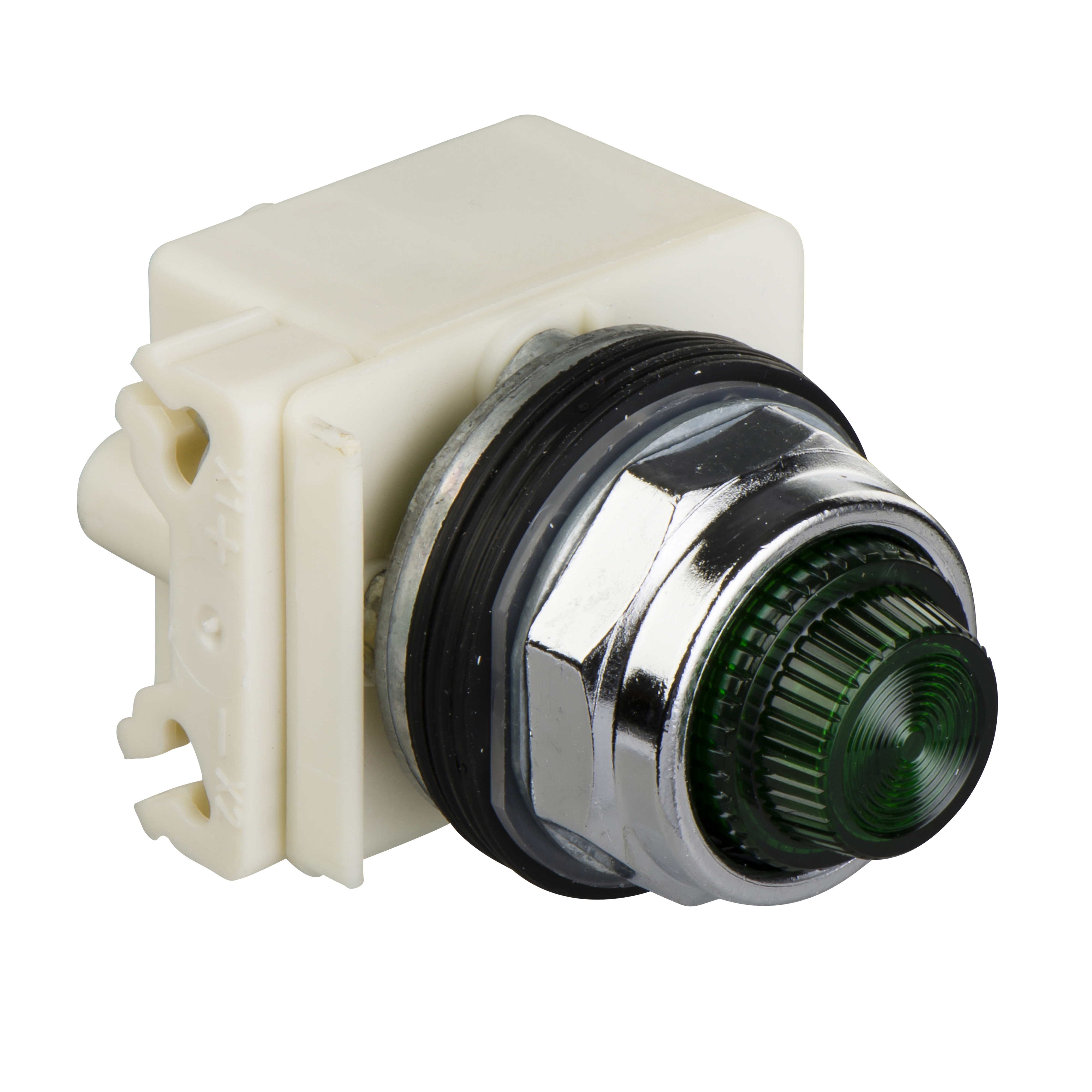

Schneider Electric 9001KP32LGG31 Pilot Lights
Custom_Product_Images_Illustration
Square D™
Schneider Electric 9001KP32LGG31 Pilot Lights
SKU542001
MFGR #9001KP32LGG31
$/ea
Schneider Electric 9001KP32LGG31 PILOT LIGHT 14V 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 1-NEMA 12-NEMA 2-NEMA 3-NEMA 13-NEMA 6-NEMA 4-NEMA 3R,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,green LED,round
Schneider Electric 9001KP32LGG31 PILOT LIGHT 14V 30MM TYPE K +OPTIONS,30mm,9001K,BA 9s,Harmony 9001K,NEMA 1-NEMA 12-NEMA 2-NEMA 3-NEMA 13-NEMA 6-NEMA 4-NEMA 3R,Panel,UL, CSA, CE,chromium plated metal,complete pilot light,green LED,round
Alternate Catalog Number 9001KP32LGG31 Application 9001K ARRA Compliant N Base BA 9s Base Type BA9s Brand Square D™ Buy American Compliant N Catalog Number 9001KP32LGG31 Color Green Connection Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 Country of Origin MX Currency USD Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP66 Environmental Conditions -25 to 70 Operating/-40 to 70 Storage/7 gn Vibration Resistance/50 gn Shock Resistance EU RoHS Indicator Y Finish Chromium Plated Metal Fixture Type GREEN LED Gross Weight Per Pack 2.2680 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8531809026 Height 12.9030 in Height [Metric] 12.9030 cm Illumination Type Green LED Item Group 21426 Lamp Type Green LED Length 32.7740 in Length [Metric] 32.7740 cm Lens Color Green Lens Material Plastic Lens Type Fresnel Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=470839&lang=en-us Mounting Panel Mounting Type Panel Operating Temperature -25-70 A°C Returnable Y Series 9001K Shape Round Size 30 Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,UL 508-JIS C 852-EN/IEC 60947-1-EN/IEC 60947-5-4-EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C 4520,UL 508-NEMA Stock Status NONSTOCK Style BA 9S Sub Brand 9001K Terminal Type Screw Clamp Type Type K Standard Heavy Duty UNSPSC 39121534 UPC 11 78590130729 UPC 12 785901307297 Voltage Rating 12/14 Warranty Description Contractual Warranty:18 months Width 5.0800 in Width [Metric] 5.0800 cm 9001K IP66 CONFORMING TO IEC 60529
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9001KP32LGG31 |
| Application | 9001K |
| ARRA Compliant | N |
| Base | BA 9s |
| Base Type | BA9s |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9001KP32LGG31 |
| Color | Green |
| Connection | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP66 |
| Environmental Conditions | -25 to 70 Operating/-40 to 70 Storage/7 gn Vibration Resistance/50 gn Shock Resistance |
| EU RoHS Indicator | Y |
| Finish | Chromium Plated Metal |
| Fixture Type | GREEN LED |
| Gross Weight Per Pack | 2.2680 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8531809026 |
| Height | 12.9030 in |
| Height [Metric] | 12.9030 cm |
| Illumination Type | Green LED |
| Item Group | 21426 |
| Lamp Type | Green LED |
| Length | 32.7740 in |
| Length [Metric] | 32.7740 cm |
| Lens Color | Green |
| Lens Material | Plastic |
| Lens Type | Fresnel |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=470839&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | 9001K |
| Shape | Round |
| Size | 30 |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,UL 508-JIS C 852-EN/IEC 60947-1-EN/IEC 60947-5-4-EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C 4520,UL 508-NEMA |
| Stock Status | NONSTOCK |
| Style | BA 9S |
| Sub Brand | 9001K |
| Terminal Type | Screw Clamp |
| Type | Type K Standard Heavy Duty |
| UNSPSC | 39121534 |
| UPC 11 | 78590130729 |
| UPC 12 | 785901307297 |
| Voltage Rating | 12/14 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.0800 in |
| Width [Metric] | 5.0800 cm |
| 9001K |
| IP66 CONFORMING TO IEC 60529 |
