Square D™

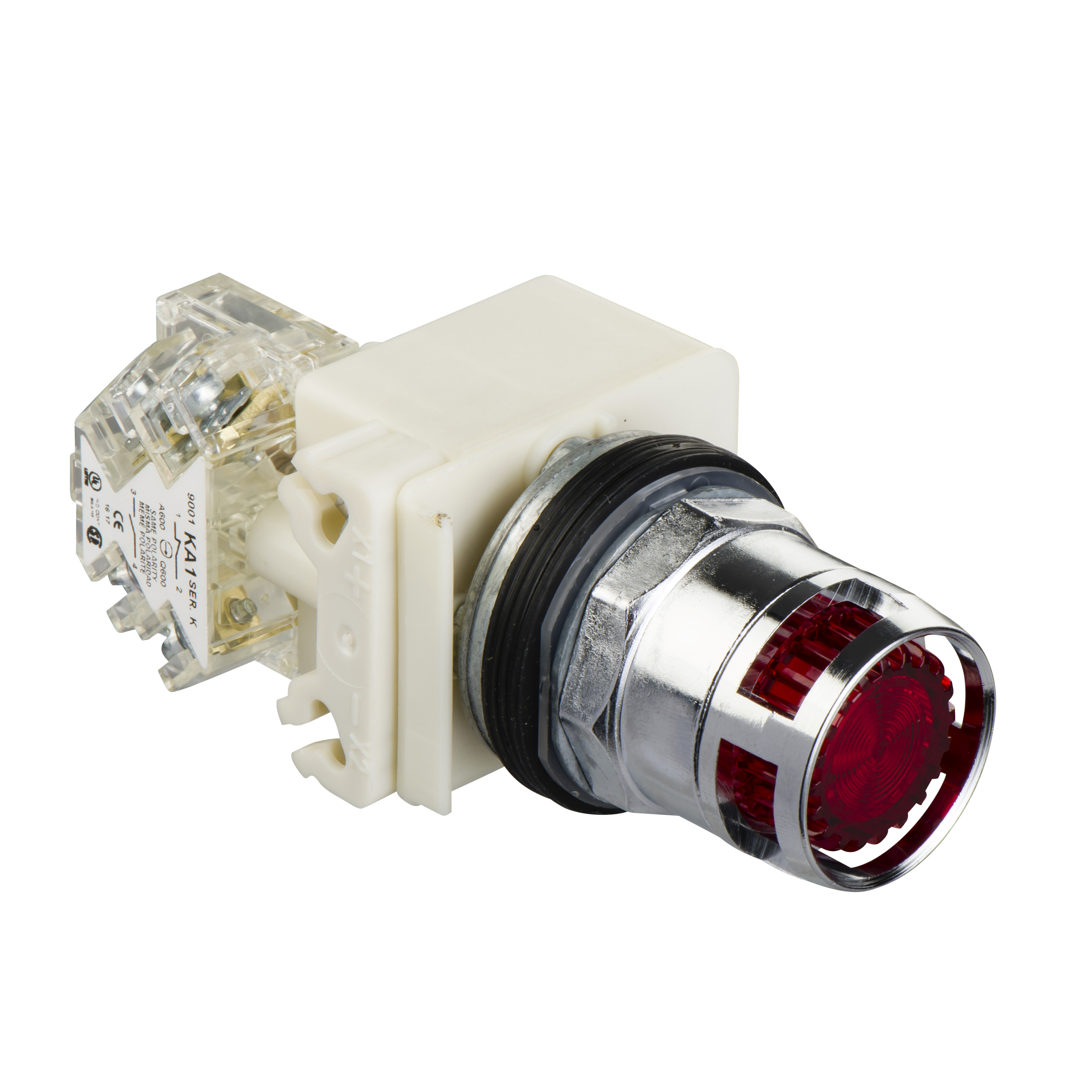

Schneider Electric 9001K3L35RH13 PUSHBUTTON 600VAC
Custom_Product_Images_Illustration
Square D™
Schneider Electric 9001K3L35RH13 PUSHBUTTON 600VAC
SKU95734
MFGR #9001K3L35RH13
$/ea
Schneider Electric 9001K3L35RH13 PUSHBUTTON 600VAC 10A 30MM TYPE K,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,BA 9s,incandescent,Harmony 9001K,NEMA 1/2/3/3R/4/6/12/13,Panel,Screw Clamp,Standard Pushbutton,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Schneider Electric 9001K3L35RH13 PUSHBUTTON 600VAC 10A 30MM TYPE K,1 NO - 1 NC,10A,30 mm,600V,AC15 - DC13,BA 9s,incandescent,Harmony 9001K,NEMA 1/2/3/3R/4/6/12/13,Panel,Screw Clamp,Standard Pushbutton,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight and Oil tight (Indoor/Outdoor),chromium plated metal,complete illuminated push-button,complete illuminated push-button,spring return,standard
Actuator Flush Alternate Catalog Number 9001K3L35RH13 ARRA Compliant N Bezel|Housing Polished Chrome Metal Buy American Compliant N Catalog Number 9001K3L35RH13 Contact Mode Momentary Contact Rating 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Country of Origin MX Currency USD Enclosure Type NEMA 1/2/3/3R/4/6/12/13/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Volume Per Pack 20.70 Gross Volume per Pack Metric 339.21 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.9504 lb Gross Weight per Pack Metric 195.04 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509065 Height 5.9990 in Height [Metric] 5.9990 cm Insulation 250 V 3)IEC 60947-1 Item Group 21426 Lamp Type BA9S Incandescent Length 11.3000 in Length [Metric] 11.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680818&lang=en-us Mounting Panel Mounting Type Panel Returnable Y Series 9001K Standard 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,NEMA-UL 508,UL 508-EN/IEC 60947-1-CSA C22.2 NO 14-JIS C 4520-JIS C 852-EN/IEC 60947-5-4-EN/IEC 60947-5-1 Sub Brand 9001K Substitute Product Catalog Number 9001KA1 Terminal Type Screw/Clamp Type Type K Dusttight/Oiltight/Watertight Heavy Duty Octagonal Unmarked UNSPSC 39121326 UPC 11 78590102859 UPC 12 785901028598 Warranty Description Contractual Warranty:18 months Width 5.0010 in Width [Metric] 5.0010 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Color Red Contact Configuration 1CO Contact Type Slow Break Operator Type Extended Guard Button/Spring Return Size 30 mm EXTENDED METALLIC GUARD This Schneider electric Harmony™ 9001K modular illuminated flush red pushbutton is supplied with a full guard It has a chromium plated metal bezel and is supplied with a 24 VAC/VDC integral LED and has 1NO-1NC contacts It fits in a 30 mm hole Full size and shallow depth light modules Reduced panel space with side by side mounting Easy to actuate, tactile feel operators Maintenance-free operation Simplified installation and identification Wide range of accessories, colored lenses and knobs for customer adaptations
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator | Flush |
| Alternate Catalog Number | 9001K3L35RH13 |
| ARRA Compliant | N |
| Bezel|Housing | Polished Chrome Metal |
| Buy American Compliant | N |
| Catalog Number | 9001K3L35RH13 |
| Contact Mode | Momentary |
| Contact Rating | 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 1/2/3/3R/4/6/12/13/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 20.70 |
| Gross Volume per Pack Metric | 339.21 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.9504 lb |
| Gross Weight per Pack Metric | 195.04 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509065 |
| Height | 5.9990 in |
| Height [Metric] | 5.9990 cm |
| Insulation | 250 V 3)IEC 60947-1 |
| Item Group | 21426 |
| Lamp Type | BA9S Incandescent |
| Length | 11.3000 in |
| Length [Metric] | 11.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=680818&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Returnable | Y |
| Series | 9001K |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,NEMA-UL 508,UL 508-EN/IEC 60947-1-CSA C22.2 NO 14-JIS C 4520-JIS C 852-EN/IEC 60947-5-4-EN/IEC 60947-5-1 |
| Sub Brand | 9001K |
| Substitute Product Catalog Number | 9001KA1 |
| Terminal Type | Screw/Clamp |
| Type | Type K Dusttight/Oiltight/Watertight Heavy Duty Octagonal Unmarked |
| UNSPSC | 39121326 |
| UPC 11 | 78590102859 |
| UPC 12 | 785901028598 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.0010 in |
| Width [Metric] | 5.0010 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Color | Red |
| Contact Configuration | 1CO |
| Contact Type | Slow Break |
| Operator Type | Extended Guard Button/Spring Return |
| Size | 30 mm |
| EXTENDED METALLIC GUARD |
| This Schneider electric Harmony™ 9001K modular illuminated flush red pushbutton is supplied with a full guard |
| It has a chromium plated metal bezel and is supplied with a 24 VAC/VDC integral LED and has 1NO-1NC contacts |
| It fits in a 30 mm hole |
| Full size and shallow depth light modules |
| Reduced panel space with side by side mounting |
| Easy to actuate, tactile feel operators |
| Maintenance-free operation |
| Simplified installation and identification |
| Wide range of accessories, colored lenses and knobs for customer adaptations |
