Square D™

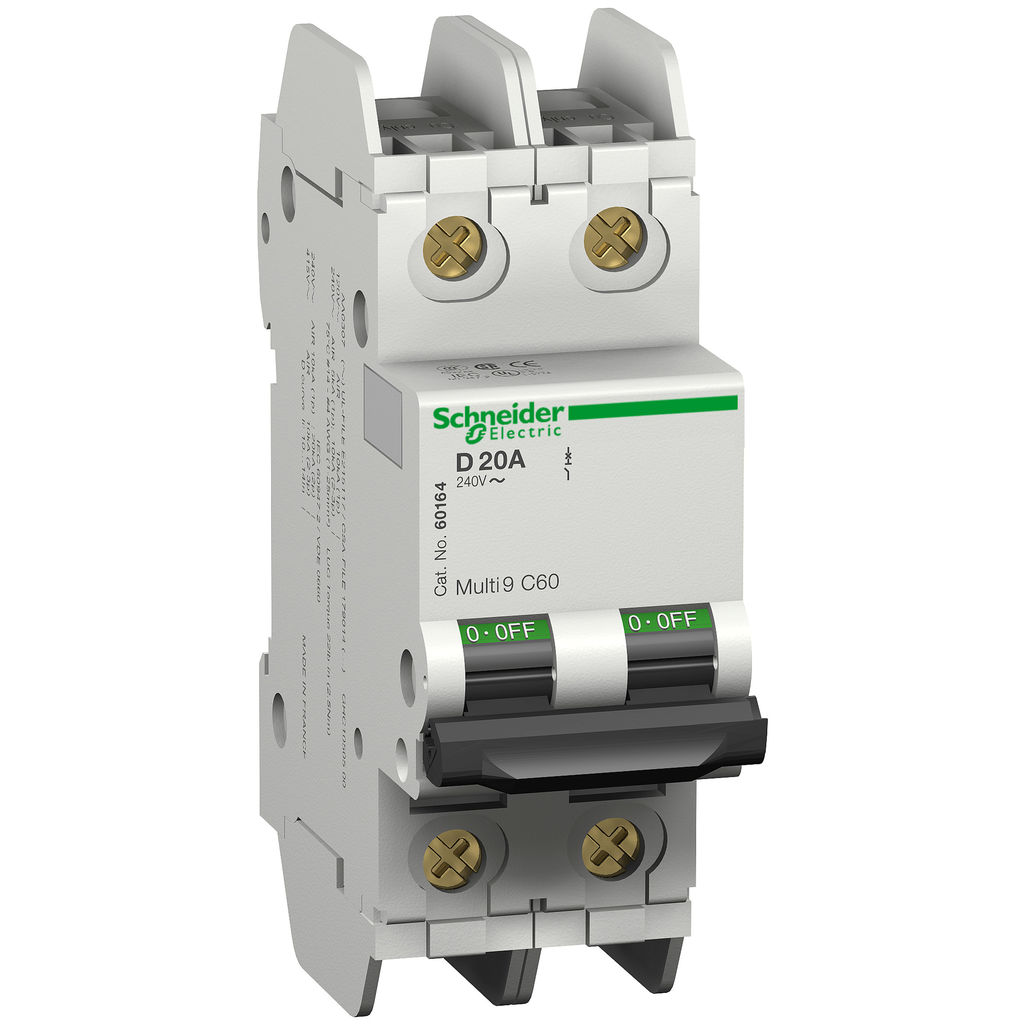

Schneider Electric 60164 Miniature Circuit Breaker, 240/415/440 VAC/125 VDC, 20 A, 6 to 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™
Schneider Electric 60164 Miniature Circuit Breaker, 240/415/440 VAC/125 VDC, 20 A, 6 to 10 kA Interrupt, 2 Poles
SKU270230
MFGR #60164
Your Cost: $271.20/ea
Schneider Electric 60164 MINIATURE CIRCUIT BREAKER 240V 20A,10 to 14 times ampere rating,20A,35mm DIN rail,60 V DC-125 V DC-12...240 V AC,60 V DC-125 V DC-12...240 V AC,73 mm,Box Lug Box Lug,C60,C60 UL489,miniature circuit-breaker,C60,Multi 9,D,IP40 (Case) - IP20 (Terminals),UL 489 - CSA C22.2 No.5
Schneider Electric 60164 MINIATURE CIRCUIT BREAKER 240V 20A,10 to 14 times ampere rating,20A,35mm DIN rail,60 V DC-125 V DC-12...240 V AC,60 V DC-125 V DC-12...240 V AC,73 mm,Box Lug Box Lug,C60,C60 UL489,miniature circuit-breaker,C60,Multi 9,D,IP40 (Case) - IP20 (Terminals),UL 489 - CSA C22.2 No.5
Actuator Type Toggle Amperage Rating 20 A ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 60164 Color Gray Connection Type Tunnel Country of Origin FR Dimensions 4.21 in H x 1.42 in W x 2.87 in D Enclosure IP40 (CASE) - IP20 (TERMINALS) Enclosure Type IP20/IP40 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 0.5600 lb Harmonization Tariff Schedule Code 8536200020 Height 107 MM Interrupt Rating 6/10 kA Item Group 00915 Length 73 MM Manufacturer Schneider Electric Mounting Type DIN Rail Number Of Poles 2 Returnable Y Series C60 Standards CSA C22.2 NO 5 Certified, CCC Certified, GB 14048.2, EN/IEC 60947-2, UL 489 Listed Stock Status NONSTOCK Sub Brand C60 UL489,MULTI 9 C60 Temperature Rating -22 to 158 °F Trip Range 10 to 14 Trip Type Thermal Magnetic UNSPSC 39121603 UPC 11 78590121057 UPC 12 785901210573 Voltage Rating 240/415/440 VAC/125 VDC Width 36 mm Wire Size 14 to 4 AWG ON/OFF INDICATION ON/OFF indication (4) 9 mm pitches 6 kA at 440 VAC, 10 kA at 415 VAC, 20 kA at 240 VAC, 6 kA at 440 VAC, 10 kA at 415 VAC, 20 kA at 240 VAC, 10 kA at 240 VAC, 10 kA at 125 VDC, 10 kA at 125 VDC, 10 kA at 125 VDC, 10 kA at 240 VAC, 10 kA at 125 VDC interrupt rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Amperage Rating | 20 A |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 60164 |
| Color | Gray |
| Connection Type | Tunnel |
| Country of Origin | FR |
| Dimensions | 4.21 in H x 1.42 in W x 2.87 in D |
| Enclosure | IP40 (CASE) - IP20 (TERMINALS) |
| Enclosure Type | IP20/IP40 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.5600 lb |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 107 MM |
| Interrupt Rating | 6/10 kA |
| Item Group | 00915 |
| Length | 73 MM |
| Manufacturer | Schneider Electric |
| Mounting Type | DIN Rail |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | C60 |
| Standards | CSA C22.2 NO 5 Certified, CCC Certified, GB 14048.2, EN/IEC 60947-2, UL 489 Listed |
| Stock Status | NONSTOCK |
| Sub Brand | C60 UL489,MULTI 9 C60 |
| Temperature Rating | -22 to 158 °F |
| Trip Range | 10 to 14 |
| Trip Type | Thermal Magnetic |
| UNSPSC | 39121603 |
| UPC 11 | 78590121057 |
| UPC 12 | 785901210573 |
| Voltage Rating | 240/415/440 VAC/125 VDC |
| Width | 36 mm |
| Wire Size | 14 to 4 AWG |
| ON/OFF INDICATION |
| ON/OFF indication |
| (4) 9 mm pitches |
| 6 kA at 440 VAC, 10 kA at 415 VAC, 20 kA at 240 VAC, 6 kA at 440 VAC, 10 kA at 415 VAC, 20 kA at 240 VAC, 10 kA at 240 VAC, 10 kA at 125 VDC, 10 kA at 125 VDC, 10 kA at 125 VDC, 10 kA at 240 VAC, 10 kA at 125 VDC interrupt rating |
