Sandvik Coromant

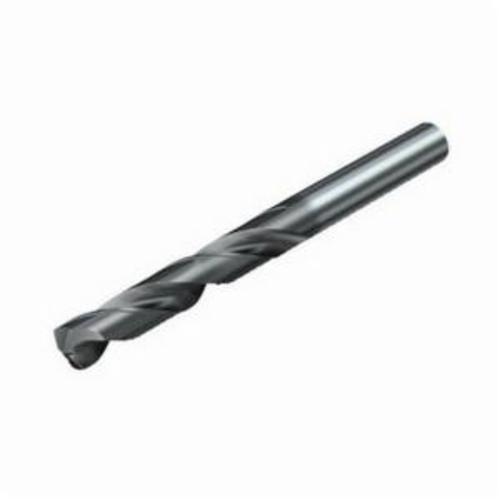

Sandvik Coromant CoroDrill® 460 High Performance Jobber Drill, 0.172 in Dia x 2.9133 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant CoroDrill® 460 High Performance Jobber Drill, 0.172 in Dia x 2.9133 in L, Carbide, PVD
SKU1110220
MFGR #6241078
Your Cost: $87.17/ea
List: CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
Alternate Catalog Number 460.1-0437-022A0-XM GC34 Applicable Materials Unalloyed Steel, High Carbon Steel, Low/High Alloy Steel, Steel Castings, Stainless Steel, Malleable Cast Iron, Gray Cast Iron, Nodular Cast Iron, Aluminum Based Alloys, Copper Based Alloys, Titanium, Extra Hard Steel and Chilled Cast Iron Catalog Number 6241078 Country of Origin CN Cutting Depth 0.8858 in Cutting Direction Right Hand Cutting Edge Material Carbide Diameter 0.172 in Drill Diameter Measurement System Imperial Flute Length 1.4173 in Flute Type SSK Gross Weight Per Pack 0.0500 lb Item Group 722 Number of Flutes 2 Overall Length 2.9133 in Point Type Split Series CoroDrill® 460 Shank Size 0.2362 in Shank Type Cylindrical Standards DIN1835-A/DIN6535-HA, DIN6537L Type High Performance UPC 11 69826270363 UPC 12 69826270363 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Finish PVD Material Carbide Point Angle 140 deg 0 deg body half taper Without coolant entry No coolant exit EFW cutting feed 31.366 deg helix flute 21.426 deg orthogonal rake GC34 manufacturer grade 73.4 mm L functional 36 mm L clamping 3 regrinds 0.6 mm L point 3 mm L regrind 18227 r/min H6 connection diameter tolerance H9 achievable hole tolerance 460.1..A0-XM (5xD) tool style 5.14874 usable length diameter ratio H, K, M, N, P and S material grade 20 life cycle state Micro-grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool life
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 460.1-0437-022A0-XM GC34 |
| Applicable Materials | Unalloyed Steel, High Carbon Steel, Low/High Alloy Steel, Steel Castings, Stainless Steel, Malleable Cast Iron, Gray Cast Iron, Nodular Cast Iron, Aluminum Based Alloys, Copper Based Alloys, Titanium, Extra Hard Steel and Chilled Cast Iron |
| Catalog Number | 6241078 |
| Country of Origin | CN |
| Cutting Depth | 0.8858 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Diameter | 0.172 in |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 1.4173 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.0500 lb |
| Item Group | 722 |
| Number of Flutes | 2 |
| Overall Length | 2.9133 in |
| Point Type | Split |
| Series | CoroDrill® 460 |
| Shank Size | 0.2362 in |
| Shank Type | Cylindrical |
| Standards | DIN1835-A/DIN6535-HA, DIN6537L |
| Type | High Performance |
| UPC 11 | 69826270363 |
| UPC 12 | 69826270363 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Finish | PVD |
| Material | Carbide |
| Point Angle | 140 deg |
| 0 deg body half taper |
| Without coolant entry |
| No coolant exit |
| EFW cutting feed |
| 31.366 deg helix flute |
| 21.426 deg orthogonal rake |
| GC34 manufacturer grade |
| 73.4 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 0.6 mm L point |
| 3 mm L regrind |
| 18227 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 460.1..A0-XM (5xD) tool style |
| 5.14874 usable length diameter ratio |
| H, K, M, N, P and S material grade |
| 20 life cycle state |
| Micro-grained carbide for excellent combination of hardness and toughness, resulting in high wear resistance and longer tool life |
