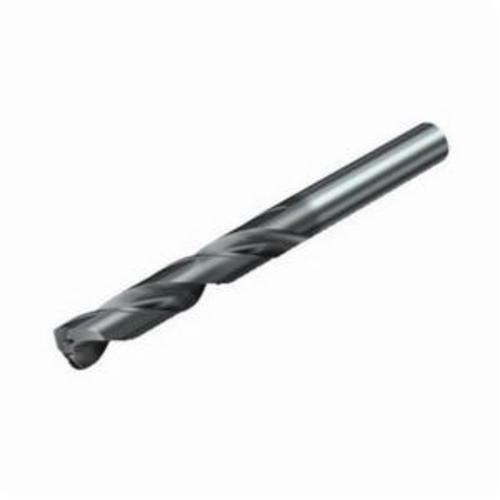

Sandvik Coromant CoroDrill® 460 High Performance Jobber Drill, 0.1594 in Dia x 2.9133 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant CoroDrill® 460 High Performance Jobber Drill, 0.1594 in Dia x 2.9133 in L, Carbide, PVD
SKU1110219
MFGR #6240924
Your Cost: $146.36/ea
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
CoroDrill® 460 -XM is a multi-application, high performance drill that can be used across a wide range of materials. this drill provides high capacity utilization, flexibility and versatility. With one drill for all materials, stock holding can be reduced and greater machine flexibility is offered leading to reduced set-up time.
Alternate Catalog Number 460.1-0405-020A1-XM GC34 Catalog Number 6240924 Country of Origin CN Cutting Depth 0.8188 in Cutting Direction Right Hand Cutting Edge Material Carbide Diameter 0.1594 in Flute Length 1.4173 in Flute Type SSK Gross Weight Per Pack 0.0500 lb Item Group 722 Number of Flutes 2 Overall Length 2.9133 in Point Type Split Series CoroDrill® 460 Shank Size 0.2362 in Shank Type Cylindrical Standards DIN1835-A/DIN6535-HA, DIN6537L Type High Performance UPC 11 69826270348 UPC 12 69826270348 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Finish PVD Material Carbide Point Angle 140 deg 0 deg body half taper Axial concentric coolant entry on circle Axial concentric coolant exit on circle 20 bar coolant EFW cutting feed 29.487 deg helix flute 20.081 deg orthogonal rake GC34 manufacturer grade 73.4 mm L functional 36 mm L clamping 3 regrinds 0.6 mm L point 3 mm L regrind 23579 r/min H6 connection diameter tolerance H9 achievable hole tolerance 460.1..A1-XM (5xD) tool style 5.135 usable length diameter ratio H, K, M, N, P, S material grade 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 460.1-0405-020A1-XM GC34 |
| Catalog Number | 6240924 |
| Country of Origin | CN |
| Cutting Depth | 0.8188 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Carbide |
| Diameter | 0.1594 in |
| Flute Length | 1.4173 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.0500 lb |
| Item Group | 722 |
| Number of Flutes | 2 |
| Overall Length | 2.9133 in |
| Point Type | Split |
| Series | CoroDrill® 460 |
| Shank Size | 0.2362 in |
| Shank Type | Cylindrical |
| Standards | DIN1835-A/DIN6535-HA, DIN6537L |
| Type | High Performance |
| UPC 11 | 69826270348 |
| UPC 12 | 69826270348 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Finish | PVD |
| Material | Carbide |
| Point Angle | 140 deg |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 29.487 deg helix flute |
| 20.081 deg orthogonal rake |
| GC34 manufacturer grade |
| 73.4 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 0.6 mm L point |
| 3 mm L regrind |
| 23579 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 460.1..A1-XM (5xD) tool style |
| 5.135 usable length diameter ratio |
| H, K, M, N, P, S material grade |
| 20 life cycle state |
