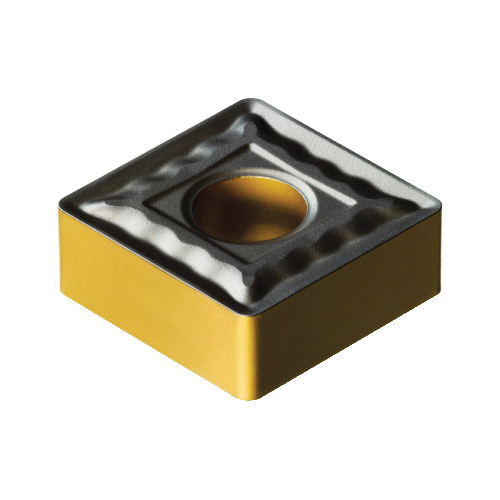

Sandvik Coromant 7231537 T-Max® P 2-Sided Basic Shape Negative Turning Insert, SNMG 543-QM 2220, S-Square, SNMG Insert, 2220
Custom_Product_Images_Illustration
Sandvik Coromant 7231537 T-Max® P 2-Sided Basic Shape Negative Turning Insert, SNMG 543-QM 2220, S-Square, SNMG Insert, 2220
SKU1237131
MFGR #7231537
$/ea
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, SNMG Insert, S-Square, 2 mm Maximum Depth of Cut, 15.875 mm Inscribed Circle, 6.35 mm Thickness, 14.675 mm Width, 14.675 mm Length, QM Chipbreaker, 1.1906 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: SNMG 543-QM 2220, ISO Code: SNMG 15 06 12-QM 2220, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, SNMG Insert, S-Square, 2 mm Maximum Depth of Cut, 15.875 mm Inscribed Circle, 6.35 mm Thickness, 14.675 mm Width, 14.675 mm Length, QM Chipbreaker, 1.1906 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: SNMG 543-QM 2220, ISO Code: SNMG 15 06 12-QM 2220, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number SNMG 543-QM 2220 ANSI Code SNMG 543-QM 2220 Catalog Number 7231537 Corner Radius 0.047 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.4600 lb Hole Diameter 1/4 in Included Angle 90 ° ISO Code SNMG 15 06 12-QM 2220 Item Group 112 Length 5/8 in Relief Angle 0 ° Series T-Max® P Standards ISO Certified Thickness 1/4 in Width 5/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker QM Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 5/8 in Insert Size 543 Insert Style SNMG Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 8 mm Rake Negative Seat Size 15 Shape Square For external turning operations and internal machining Productive solution with wiper and Xcel technologies GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 QM chipbreaker for semi-finishing, medium to light roughing in mixed production
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 543-QM 2220 |
| ANSI Code | SNMG 543-QM 2220 |
| Catalog Number | 7231537 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.4600 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 15 06 12-QM 2220 |
| Item Group | 112 |
| Length | 5/8 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Standards | ISO Certified |
| Thickness | 1/4 in |
| Width | 5/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | QM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | 543 |
| Insert Style | SNMG |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 8 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Square |
| For external turning operations and internal machining |
| Productive solution with wiper and Xcel technologies |
| GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 |
| QM chipbreaker for semi-finishing, medium to light roughing in mixed production |
