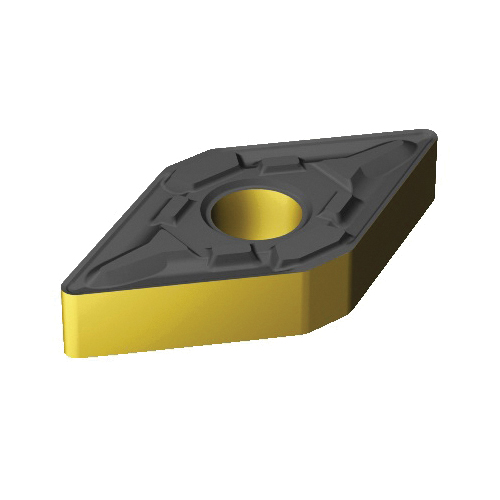

Sandvik Coromant 7231536 T-Max® P 2-Sided Basic Shape Negative Turning Insert, DNMG 434-MR 2220, D-55 deg Rhombic, 2220
Custom_Product_Images_Illustration
Sandvik Coromant 7231536 T-Max® P 2-Sided Basic Shape Negative Turning Insert, DNMG 434-MR 2220, D-55 deg Rhombic, 2220
SKU1237461
MFGR #7231536
$/ea
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, DNMG Insert, D-55 deg Rhombic, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.7625 mm Thickness, 13.9038 mm Length, MR Chipbreaker, 1.5875 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: DNMG 434-MR 2220, ISO Code: DNMG 15 04 16-MR 2220, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, DNMG Insert, D-55 deg Rhombic, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.7625 mm Thickness, 13.9038 mm Length, MR Chipbreaker, 1.5875 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: DNMG 434-MR 2220, ISO Code: DNMG 15 04 16-MR 2220, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number DNMG 434-MR 2220 ANSI Code DNMG 434-MR 2220 Catalog Number 7231536 Corner Radius 0.0624 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2900 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMG 15 04 16-MR 2220 Item Group 112 Relief Angle 0 ° Series T-Max® P Standards ISO Certified Thickness 0.1874 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1/2 in Insert Size 434 Insert Style DNMG Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 0.236 in Rake Negative Seat Size 15 Shape Rhombic For external turning operations and internal machining Productive solution with wiper and Xcel technologies GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 MR chipbreaker for roughing of stainless stee
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 434-MR 2220 |
| ANSI Code | DNMG 434-MR 2220 |
| Catalog Number | 7231536 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2900 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 15 04 16-MR 2220 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Standards | ISO Certified |
| Thickness | 0.1874 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 434 |
| Insert Style | DNMG |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 0.236 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| For external turning operations and internal machining |
| Productive solution with wiper and Xcel technologies |
| GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 |
| MR chipbreaker for roughing of stainless stee |
