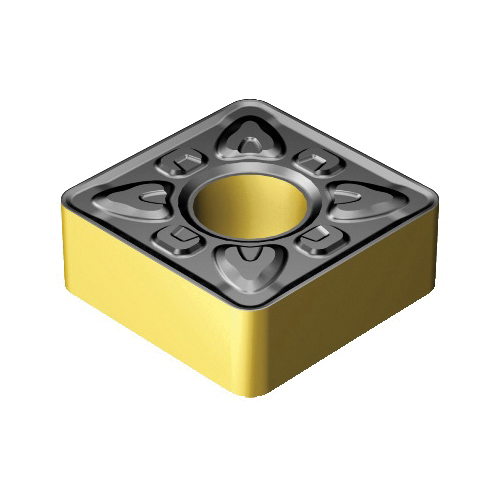

Sandvik Coromant 7231523 T-Max® P 2-Sided Basic Shape Negative Turning Insert, SNMG 433-XMR 2220, S-Square, SNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 7231523 T-Max® P 2-Sided Basic Shape Negative Turning Insert, SNMG 433-XMR 2220, S-Square, SNMG Insert
SKU1237149
MFGR #7231523
$/ea
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, SNMG Insert, S-Square, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.7625 mm Thickness, 11.5 mm Width, 11.5 mm Length, XMR Chipbreaker, 1.1906 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: SNMG 433-XMR 2220, ISO Code: SNMG 12 04 12-XMR 2220, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, SNMG Insert, S-Square, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.7625 mm Thickness, 11.5 mm Width, 11.5 mm Length, XMR Chipbreaker, 1.1906 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: SNMG 433-XMR 2220, ISO Code: SNMG 12 04 12-XMR 2220, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number SNMG 433-XMR 2220 ANSI Code SNMG 433-XMR 2220 Catalog Number 7231523 Corner Radius 0.047 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2200 lb Hole Diameter 0.2029 in Included Angle 90 ° ISO Code SNMG 12 04 12-XMR 2220 Item Group 112 Length 1/2 in Relief Angle 0 ° Series T-Max® P Standards ISO Certified Thickness 0.187 in Width 1/2 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XMR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1/2 in Insert Size 433 Insert Style SNMG Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 6 mm Rake Negative Seat Size 12 Shape Square For external turning operations and internal machining Productive solution with wiper and Xcel technologies GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 XMR medium roughing geometry - Reinforced cutting edge for toughness demanding operations Strong 100 deg corner for security in high feed operations Large contact surfaces for secure and stable machining
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 433-XMR 2220 |
| ANSI Code | SNMG 433-XMR 2220 |
| Catalog Number | 7231523 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2200 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 12 04 12-XMR 2220 |
| Item Group | 112 |
| Length | 1/2 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Standards | ISO Certified |
| Thickness | 0.187 in |
| Width | 1/2 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Insert Style | SNMG |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 6 mm |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Square |
| For external turning operations and internal machining |
| Productive solution with wiper and Xcel technologies |
| GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 |
| XMR medium roughing geometry - Reinforced cutting edge for toughness demanding operations |
| Strong 100 deg corner for security in high feed operations |
| Large contact surfaces for secure and stable machining |
