Sandvik Coromant

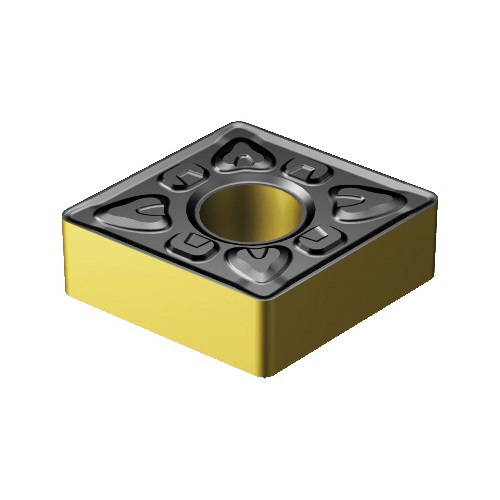

Sandvik Coromant 7231519 T-Max® P 2-Sided Basic Shape Negative Turning Insert, CNMG 644-XMR 2220, C-80 deg Rhombic, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 7231519 T-Max® P 2-Sided Basic Shape Negative Turning Insert, CNMG 644-XMR 2220, C-80 deg Rhombic, CNMG Insert
SKU1236394
MFGR #7231519
$/ea
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, CNMG Insert, C-80 deg Rhombic, 4 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 17.7439 mm Length, XMR Chipbreaker, 1.5875 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: CNMG 644-XMR 2220, ISO Code: CNMG 19 06 16-XMR 2220, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, CNMG Insert, C-80 deg Rhombic, 4 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 17.7439 mm Length, XMR Chipbreaker, 1.5875 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: CNMG 644-XMR 2220, ISO Code: CNMG 19 06 16-XMR 2220, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number CNMG 644-XMR 2220 ANSI Code CNMG 644-XMR 2220 Catalog Number 7231519 Corner Radius 0.062 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.6300 lb Hole Diameter 0.312 in Included Angle 80 ° ISO Code CNMG 19 06 16-XMR 2220 Item Group 112 Relief Angle 0 ° Series T-Max® P Standards ISO Certified Thickness 1/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XMR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 3/4 in Insert Size 644 Insert Style CNMG Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 0.335 in Rake Negative Seat Size 19 Shape Rhombic For external turning operations and internal machining Productive solution with wiper and Xcel technologies GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 XMR medium roughing geometry - Reinforced cutting edge for toughness demanding operations Strong 100 deg corner for security in high feed operations Large contact surfaces for secure and stable machining
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 644-XMR 2220 |
| ANSI Code | CNMG 644-XMR 2220 |
| Catalog Number | 7231519 |
| Corner Radius | 0.062 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.6300 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 19 06 16-XMR 2220 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Standards | ISO Certified |
| Thickness | 1/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | 644 |
| Insert Style | CNMG |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 0.335 in |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Rhombic |
| For external turning operations and internal machining |
| Productive solution with wiper and Xcel technologies |
| GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 |
| XMR medium roughing geometry - Reinforced cutting edge for toughness demanding operations |
| Strong 100 deg corner for security in high feed operations |
| Large contact surfaces for secure and stable machining |
