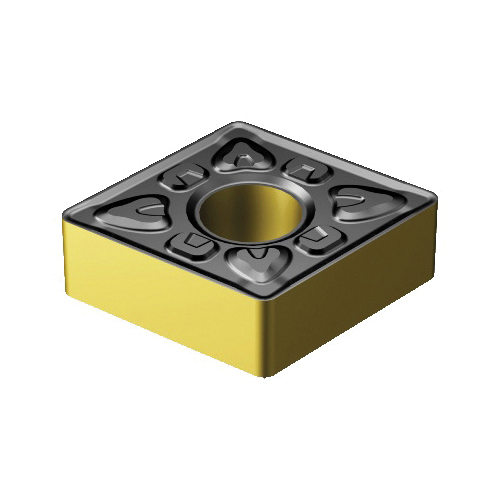

Sandvik Coromant 7231517 T-Max® P 2-Sided Basic Shape Negative Turning Insert, CNMG 544-XMR 2220, C-80 deg Rhombic, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 7231517 T-Max® P 2-Sided Basic Shape Negative Turning Insert, CNMG 544-XMR 2220, C-80 deg Rhombic, CNMG Insert
SKU1236360
MFGR #7231517
Your Cost: $20.33/ea
List: Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, CNMG Insert, C-80 deg Rhombic, 4 mm Maximum Depth of Cut, 15.875 mm Inscribed Circle, 6.35 mm Thickness, 14.5199 mm Length, XMR Chipbreaker, 1.5875 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: CNMG 544-XMR 2220, ISO Code: CNMG 16 06 16-XMR 2220, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, CNMG Insert, C-80 deg Rhombic, 4 mm Maximum Depth of Cut, 15.875 mm Inscribed Circle, 6.35 mm Thickness, 14.5199 mm Length, XMR Chipbreaker, 1.5875 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: CNMG 544-XMR 2220, ISO Code: CNMG 16 06 16-XMR 2220, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
ANSI Code CNMG 544-XMR 2220 Catalog Number 7231517 Corner Radius 0.062 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.4600 lb Hole Diameter 1/4 in Included Angle 80 ° ISO Code CNMG 16 06 16-XMR 2220 Relief Angle 0 ° Series T-Max® P Standards ISO Certified Thickness 1/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker XMR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 5/8 in Insert Size 544 Insert Style CNMG Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 0.276 in Rake Negative Seat Size 16 Shape Rhombic For external turning operations and internal machining Productive solution with wiper and Xcel technologies GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 XMR medium roughing geometry - Reinforced cutting edge for toughness demanding operations Strong 100 deg corner for security in high feed operations Large contact surfaces for secure and stable machining
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | CNMG 544-XMR 2220 |
| Catalog Number | 7231517 |
| Corner Radius | 0.062 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.4600 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 16 06 16-XMR 2220 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Standards | ISO Certified |
| Thickness | 1/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | XMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | 544 |
| Insert Style | CNMG |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 0.276 in |
| Rake | Negative |
| Seat Size | 16 |
| Shape | Rhombic |
| For external turning operations and internal machining |
| Productive solution with wiper and Xcel technologies |
| GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 |
| XMR medium roughing geometry - Reinforced cutting edge for toughness demanding operations |
| Strong 100 deg corner for security in high feed operations |
| Large contact surfaces for secure and stable machining |
