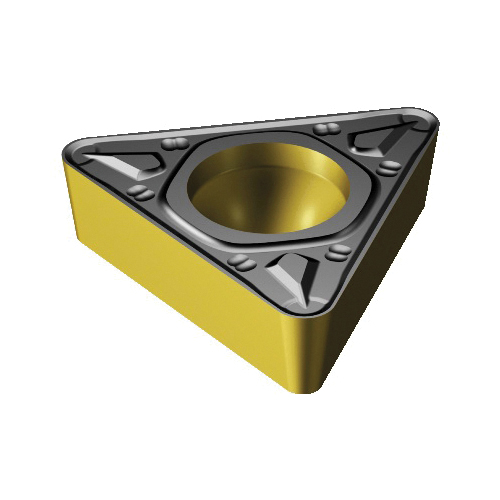

Sandvik Coromant 7231455 CoroTurn® 107 1-Sided Basic Shape Positive Turning Insert, TCMT 3(2.5)3-MR 2220, T-60 deg Triangle
Custom_Product_Images_Illustration
Sandvik Coromant 7231455 CoroTurn® 107 1-Sided Basic Shape Positive Turning Insert, TCMT 3(2.5)3-MR 2220, T-60 deg Triangle
SKU1229416
MFGR #7231455
$/ea
Sandvik Coromant Turning Insert, 1-Sided Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-60 deg Triangle, 2 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3.96875 mm Thickness, 15.2978 mm Length, MR Chipbreaker, 1.1906 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: TCMT 3(2.5)3-MR 2220, ISO Code: TCMT 16 T3 12-MR 2220, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 1-Sided Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-60 deg Triangle, 2 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3.96875 mm Thickness, 15.2978 mm Length, MR Chipbreaker, 1.1906 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: TCMT 3(2.5)3-MR 2220, ISO Code: TCMT 16 T3 12-MR 2220, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
ANSI Code TCMT 3(2.5)3-MR 2220 Catalog Number 7231455 Corner Radius 1.1906 mm Country of Origin SE Finish CVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Included Angle 60 deg ISO Code TCMT 16 T3 12-MR 2220 Length 15.2978 mm Relief Angle 7 deg Series CoroTurn® 107 Standards ISO Certified Thickness 3.96875 mm Type 1-Sided Basic Shape Positive Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker MR Inscribed Circle 9.525 mm Insert Style TCMT Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 2 mm Shape T-60 deg Triangle Improved chip control Low cutting forces Excellent edge strength GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 MR chipbreaker for roughing of stainless steel
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | TCMT 3(2.5)3-MR 2220 |
| Catalog Number | 7231455 |
| Corner Radius | 1.1906 mm |
| Country of Origin | SE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Included Angle | 60 deg |
| ISO Code | TCMT 16 T3 12-MR 2220 |
| Length | 15.2978 mm |
| Relief Angle | 7 deg |
| Series | CoroTurn® 107 |
| Standards | ISO Certified |
| Thickness | 3.96875 mm |
| Type | 1-Sided Basic Shape Positive |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | MR |
| Inscribed Circle | 9.525 mm |
| Insert Style | TCMT |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 2 mm |
| Shape | T-60 deg Triangle |
| Improved chip control |
| Low cutting forces |
| Excellent edge strength |
| GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 |
| MR chipbreaker for roughing of stainless steel |
