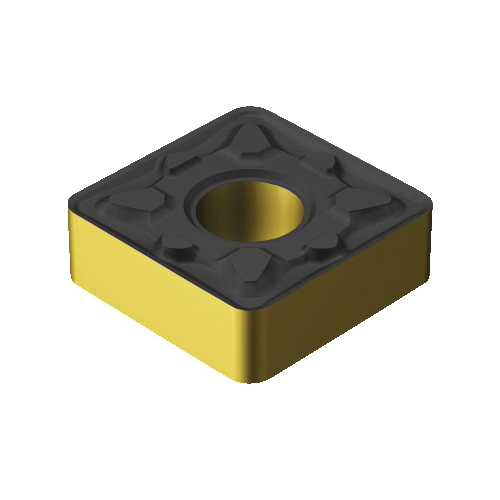

Sandvik Coromant 7231429 T-Max® P 2-Sided Basic Shape Negative Turning Insert, SNMG 644-MM 2220, S-Square, SNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 7231429 T-Max® P 2-Sided Basic Shape Negative Turning Insert, SNMG 644-MM 2220, S-Square, SNMG Insert
SKU1237204
MFGR #7231429
$/ea
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, SNMG Insert, S-Square, 4 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 17.45 mm Width, 17.45 mm Length, MM Chipbreaker, 1.5875 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: SNMG 644-MM 2220, ISO Code: SNMG 19 06 16-MM 2220, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, SNMG Insert, S-Square, 4 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 17.45 mm Width, 17.45 mm Length, MM Chipbreaker, 1.5875 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: SNMG 644-MM 2220, ISO Code: SNMG 19 06 16-MM 2220, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number SNMG 644-MM 2220 ANSI Code SNMG 644-MM 2220 Catalog Number 7231429 Corner Radius 0.0625 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.7100 lb Hole Diameter 0.312 in Included Angle 90 ° ISO Code SNMG 19 06 16-MM 2220 Item Group 112 Length 3/4 in Relief Angle 0 ° Series T-Max® P Standards ISO Certified Thickness 1/4 in Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 3/4 in Insert Size 644 Insert Style SNMG Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 9.5 mm Rake Negative Seat Size 19 Shape Square For external turning operations and internal machining Productive solution with wiper and Xcel technologies GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 644-MM 2220 |
| ANSI Code | SNMG 644-MM 2220 |
| Catalog Number | 7231429 |
| Corner Radius | 0.0625 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.7100 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 19 06 16-MM 2220 |
| Item Group | 112 |
| Length | 3/4 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Standards | ISO Certified |
| Thickness | 1/4 in |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | 644 |
| Insert Style | SNMG |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 9.5 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Square |
| For external turning operations and internal machining |
| Productive solution with wiper and Xcel technologies |
| GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 |
