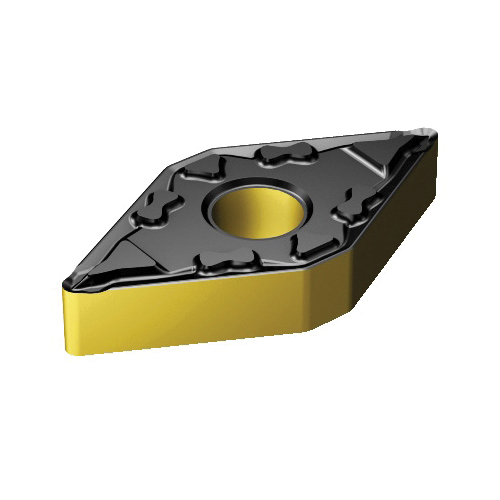

Sandvik Coromant 7231388 T-Max® P 2-Sided Basic Shape Negative Turning Insert, DNMG 442-MF 2220, D-55 deg Rhombic, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 7231388 T-Max® P 2-Sided Basic Shape Negative Turning Insert, DNMG 442-MF 2220, D-55 deg Rhombic, DNMG Insert
SKU1237463
MFGR #7231388
$/ea
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, DNMG Insert, D-55 deg Rhombic, 0.4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.35 mm Thickness, 14.7038 mm Length, MF Chipbreaker, 0.7938 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: DNMG 442-MF 2220, ISO Code: DNMG 15 06 08-MF 2220, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, DNMG Insert, D-55 deg Rhombic, 0.4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 6.35 mm Thickness, 14.7038 mm Length, MF Chipbreaker, 0.7938 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: DNMG 442-MF 2220, ISO Code: DNMG 15 06 08-MF 2220, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number DNMG 442-MF 2220 ANSI Code DNMG 442-MF 2220 Catalog Number 7231388 Corner Radius 0.0312 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.3700 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMG 15 06 08-MF 2220 Item Group 112 Relief Angle 0 ° Series T-Max® P Standards ISO Certified Thickness 1/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MF Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1/2 in Insert Size 442 Insert Style DNMG Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 0.059 in Rake Negative Seat Size 15 Shape Rhombic For external turning operations and internal machining Productive solution with wiper and Xcel technologies GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 442-MF 2220 |
| ANSI Code | DNMG 442-MF 2220 |
| Catalog Number | 7231388 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.3700 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 15 06 08-MF 2220 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Standards | ISO Certified |
| Thickness | 1/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MF |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 442 |
| Insert Style | DNMG |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 0.059 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| For external turning operations and internal machining |
| Productive solution with wiper and Xcel technologies |
| GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 |
