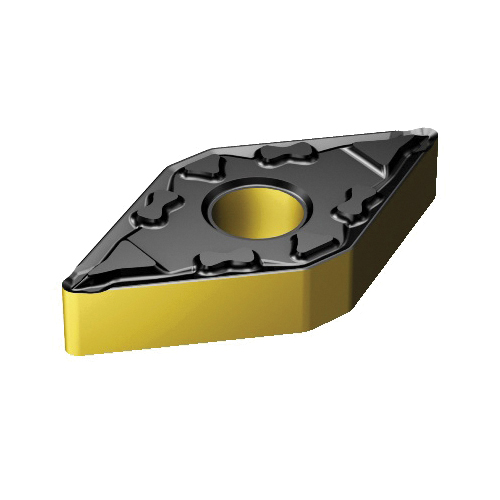

Sandvik Coromant 7231374 T-Max® P 2-Sided Basic Shape Negative Turning Insert, DNMG 331-MF 2220, D-55 deg Rhombic, 2220
Custom_Product_Images_Illustration
Sandvik Coromant 7231374 T-Max® P 2-Sided Basic Shape Negative Turning Insert, DNMG 331-MF 2220, D-55 deg Rhombic, 2220
SKU1237441
MFGR #7231374
$/ea
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, DNMG Insert, D-55 deg Rhombic, 0.4 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 4.7625 mm Thickness, 11.2279 mm Length, MF Chipbreaker, 0.3969 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: DNMG 331-MF 2220, ISO Code: DNMG 11 04 04-MF 2220, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, DNMG Insert, D-55 deg Rhombic, 0.4 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 4.7625 mm Thickness, 11.2279 mm Length, MF Chipbreaker, 0.3969 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: DNMG 331-MF 2220, ISO Code: DNMG 11 04 04-MF 2220, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number DNMG 331-MF 2220 ANSI Code DNMG 331-MF 2220 Catalog Number 7231374 Corner Radius 0.0156 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1600 lb Hole Diameter 0.15 in Included Angle 55 ° ISO Code DNMG 11 04 04-MF 2220 Item Group 112 Relief Angle 0 ° Series T-Max® P Standards ISO Certified Thickness 0.1874 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MF Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 3/8 in Insert Size 331 Insert Style DNMG Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 0.059 in Rake Negative Seat Size 11 Shape Rhombic For external turning operations and internal machining Productive solution with wiper and Xcel technologies GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 331-MF 2220 |
| ANSI Code | DNMG 331-MF 2220 |
| Catalog Number | 7231374 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1600 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 11 04 04-MF 2220 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Standards | ISO Certified |
| Thickness | 0.1874 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MF |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 331 |
| Insert Style | DNMG |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 0.059 in |
| Rake | Negative |
| Seat Size | 11 |
| Shape | Rhombic |
| For external turning operations and internal machining |
| Productive solution with wiper and Xcel technologies |
| GC2220 CVD coated gradient sintered carbide with Inveio™ coating technology optimized for semi-finishing to roughing where higher wear resistance is needed compared to GC2025 |
