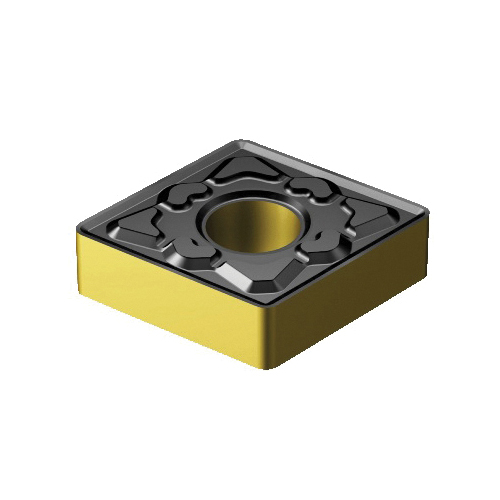

Sandvik Coromant 7231349 T-Max® P 2-Sided Basic Shape Negative Turning Insert, CNMG 643-MM 2220, C-80 deg Rhombic, 2220
Custom_Product_Images_Illustration
Sandvik Coromant 7231349 T-Max® P 2-Sided Basic Shape Negative Turning Insert, CNMG 643-MM 2220, C-80 deg Rhombic, 2220
SKU1236361
MFGR #7231349
$/ea
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, CNMG Insert, C-80 deg Rhombic, 4 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 18.1439 mm Length, MM Chipbreaker, 1.1906 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: CNMG 643-MM 2220, ISO Code: CNMG 19 06 12-MM 2220, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, CNMG Insert, C-80 deg Rhombic, 4 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 18.1439 mm Length, MM Chipbreaker, 1.1906 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: CNMG 643-MM 2220, ISO Code: CNMG 19 06 12-MM 2220, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number CNMG 643-MM 2220 ANSI Code CNMG 643-MM 2220 Catalog Number 7231349 Corner Radius 0.047 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.6400 lb Hole Diameter 0.312 in Included Angle 80 ° ISO Code CNMG 19 06 12-MM 2220 Item Group 112 Relief Angle 0 ° Series T-Max® P Standards ISO Certified Thickness 1/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 3/4 in Insert Size 643 Insert Style CNMG Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 0.335 in Rake Negative Seat Size 19 Shape Rhombic Minimizes notching Prevents burrs Reduces edge build-up Prevents fracture by thin film coating Prevents chattering and cutting edge damage at steel machining CA6525 grade specialized carbide substrate for stainless steel cutting, excellent notching resistance and toughness First choice for general cutting of stainless steel, from finishing to roughing and continuous to interruption HQ chipbreaker - general purpose chipbreaker for medium machining
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 643-MM 2220 |
| ANSI Code | CNMG 643-MM 2220 |
| Catalog Number | 7231349 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.6400 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 19 06 12-MM 2220 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Standards | ISO Certified |
| Thickness | 1/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | 643 |
| Insert Style | CNMG |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 0.335 in |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Rhombic |
| Minimizes notching |
| Prevents burrs |
| Reduces edge build-up |
| Prevents fracture by thin film coating |
| Prevents chattering and cutting edge damage at steel machining |
| CA6525 grade specialized carbide substrate for stainless steel cutting, excellent notching resistance and toughness |
| First choice for general cutting of stainless steel, from finishing to roughing and continuous to interruption |
| HQ chipbreaker - general purpose chipbreaker for medium machining |
