Sandvik Coromant

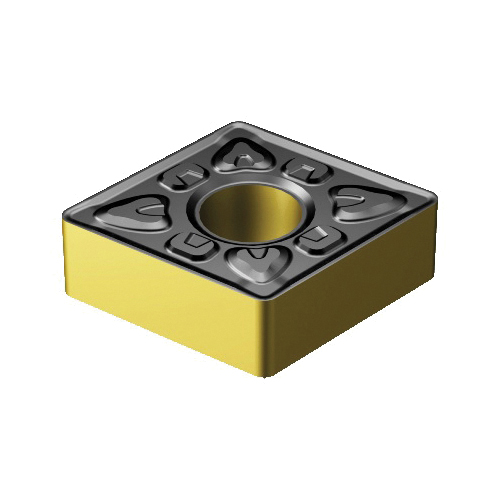

Sandvik Coromant 7231331 T-Max® P 2-Sided Basic Shape Negative Turning Insert, CNMG 432-XMR 2220, C-80 deg Rhombic
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 7231331 T-Max® P 2-Sided Basic Shape Negative Turning Insert, CNMG 432-XMR 2220, C-80 deg Rhombic
SKU1236321
MFGR #7231331
Your Cost: $17.27/ea
List: Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, CNMG Insert, C-80 deg Rhombic, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.7625 mm Thickness, 12.0959 mm Length, XMR Chipbreaker, 0.7938 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: CNMG 432-XMR 2220, ISO Code: CNMG 12 04 08-XMR 2220, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, 2-Sided Basic Shape Negative, Series: T-Max® P, CNMG Insert, C-80 deg Rhombic, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.7625 mm Thickness, 12.0959 mm Length, XMR Chipbreaker, 0.7938 mm Corner Radius, Manufacturer's Grade: 2220, ANSI Code: CNMG 432-XMR 2220, ISO Code: CNMG 12 04 08-XMR 2220, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M
Alternate Catalog Number CNMG 432-XMR 2220 ANSI Code CNMG 432-XMR 2220 Catalog Number 7231331 Corner Radius 0.0312 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2200 lb Hole Diameter 0.2029 in Included Angle 80 ° ISO Code CNMG 12 04 08-XMR 2220 Item Group 112 Relief Angle 0 ° Series T-Max® P Standards ISO Certified Thickness 0.187 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XMR Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1/2 in Insert Size 432 Insert Style CNMG Manufacturer's Grade 2220 Material Carbide Material Grade M Maximum Depth of Cut 0.236 in Rake Negative Seat Size 12 Shape Rhombic Longer tool life - excellent wear and fracture resistance Prevents layer peeling - strong intra coating adhesion Higher adhesion between each layer with improved crystal structure Control chipping - higher layer strength and fracture resistance CA530 grade special tough substrate and tough coating film provides high stability and wear resistance General to heavy interrupted machining (stability oriented) HQ chipbreaker - general purpose chipbreaker for medium machining
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 432-XMR 2220 |
| ANSI Code | CNMG 432-XMR 2220 |
| Catalog Number | 7231331 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2200 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 08-XMR 2220 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Standards | ISO Certified |
| Thickness | 0.187 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 432 |
| Insert Style | CNMG |
| Manufacturer's Grade | 2220 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 0.236 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| Longer tool life - excellent wear and fracture resistance |
| Prevents layer peeling - strong intra coating adhesion |
| Higher adhesion between each layer with improved crystal structure |
| Control chipping - higher layer strength and fracture resistance |
| CA530 grade special tough substrate and tough coating film provides high stability and wear resistance |
| General to heavy interrupted machining (stability oriented) |
| HQ chipbreaker - general purpose chipbreaker for medium machining |
