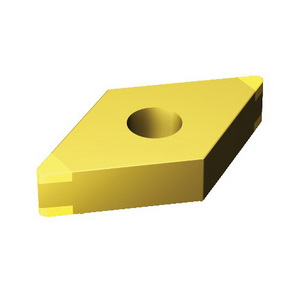

Sandvik Coromant 7190825 T-Max® P Turning Insert, DNGA433S0320H 7105, D-55 deg Diamond, DNGA Insert, 7105, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 7190825 T-Max® P Turning Insert, DNGA433S0320H 7105, D-55 deg Diamond, DNGA Insert, 7105, Carbide
SKU1243997
MFGR #7190825
$/ea
Sandvik Coromant Turning Insert, Series: T-Max® P, DNGA Insert, D-55 deg Diamond, 0.031 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 15 mm Length, 0.047 in Corner Radius, Manufacturer's Grade: 7105, ANSI Code: DNGA433S0320H 7105, ISO Code: DNGA150412S01020H 7105, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: H
Sandvik Coromant Turning Insert, Series: T-Max® P, DNGA Insert, D-55 deg Diamond, 0.031 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 15 mm Length, 0.047 in Corner Radius, Manufacturer's Grade: 7105, ANSI Code: DNGA433S0320H 7105, ISO Code: DNGA150412S01020H 7105, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: H
Alternate Catalog Number DNGA433S0320H 7105 ANSI Code DNGA433S0320H 7105 Catalog Number 7190825 Corner Radius 0.047 in Country of Origin PL Finish PVD-TiN Coated Gross Weight Per Pack 0.1800 lb Included Angle 55 ° ISO Code DNGA150412S01020H 7105 Item Group 620 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Neutral For Use On Hardened Steel Inscribed Circle 1/2 in Insert Size 433 Insert Style DNGA Manufacturer's Grade 7105 Material Carbide Material Grade H Maximum Depth of Cut 0.7 mm Rake Neutral Seat Size 15 Shape Diamond Longer tool life - excellent wear and fracture resistance Prevents layer peeling - strong intra coating adhesion Higher adhesion between each layer with improved crystal structure Control chipping - higher layer strength and fracture resistance CA510 grade special substrate with thermal deformation resistance along with a thick and tough film coating for wear resistance High speed and high efficiency steel machining WF chipbreaker - provides excellent chip control with primary and secondary dots and improves cutting performance during finishing operations
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | DNGA433S0320H 7105 |
| ANSI Code | DNGA433S0320H 7105 |
| Catalog Number | 7190825 |
| Corner Radius | 0.047 in |
| Country of Origin | PL |
| Finish | PVD-TiN Coated |
| Gross Weight Per Pack | 0.1800 lb |
| Included Angle | 55 ° |
| ISO Code | DNGA150412S01020H 7105 |
| Item Group | 620 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Neutral |
| For Use On | Hardened Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Insert Style | DNGA |
| Manufacturer's Grade | 7105 |
| Material | Carbide |
| Material Grade | H |
| Maximum Depth of Cut | 0.7 mm |
| Rake | Neutral |
| Seat Size | 15 |
| Shape | Diamond |
| Longer tool life - excellent wear and fracture resistance |
| Prevents layer peeling - strong intra coating adhesion |
| Higher adhesion between each layer with improved crystal structure |
| Control chipping - higher layer strength and fracture resistance |
| CA510 grade special substrate with thermal deformation resistance along with a thick and tough film coating for wear resistance |
| High speed and high efficiency steel machining |
| WF chipbreaker - provides excellent chip control with primary and secondary dots and improves cutting performance during finishing operations |
