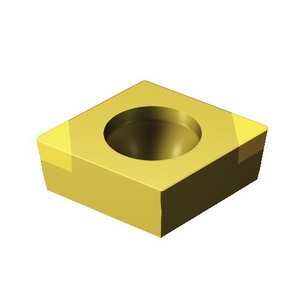

Sandvik Coromant 7106072 CoroTurn® 107 Turning Insert, CCGW2(1.5)2S0320F 7115, C-80 deg Diamond, CCGW Insert, 7115, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 7106072 CoroTurn® 107 Turning Insert, CCGW2(1.5)2S0320F 7115, C-80 deg Diamond, CCGW Insert, 7115, Carbide
SKU1244253
MFGR #7106072
$/ea
Sandvik Coromant Turning Insert, Series: CoroTurn® 107, CCGW Insert, C-80 deg Diamond, 0.016 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.094 in Thickness, 0.031 in Corner Radius, Manufacturer's Grade: 7115, ANSI Code: CCGW2(1.5)2S0320F 7115, ISO Code: CCGW060208S01020F 7115, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: H
Sandvik Coromant Turning Insert, Series: CoroTurn® 107, CCGW Insert, C-80 deg Diamond, 0.016 in Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.094 in Thickness, 0.031 in Corner Radius, Manufacturer's Grade: 7115, ANSI Code: CCGW2(1.5)2S0320F 7115, ISO Code: CCGW060208S01020F 7115, 80 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: H
Alternate Catalog Number CCGW2(1.5)2S0320F 7115 ANSI Code CCGW2(1.5)2S0320F 7115 Catalog Number 7106072 Corner Radius 0.0314 in Country of Origin PL Finish PVD-TiN Coated Gross Weight Per Pack 5.2900 lb Included Angle 80 ° ISO Code CCGW060208S01020F 7115 Item Group 620 Relief Angle 7 ° Series CoroTurn® 107 Thickness 0.0937 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker F Cutting Direction Neutral For Use On Hardened Steel Inscribed Circle 1/4 in Insert Size 2(1.5)2 Insert Style CCGW Manufacturer's Grade 7115 Material Carbide Material Grade H Maximum Depth of Cut 0.4 mm Rake Positive Seat Size 06 Shape Diamond PP chipbreaker - 3-step smart dot structure is applicable to a wide range of feed rates in steel finishing Smooth taper cutting edge reduces cutting forces PV720 grade MEGACOAT nano efficient machining with high quality surface finishes and superior wear and adhesion resistance Recommended cermet for stable steel machining and high quality surface finish 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | CCGW2(1.5)2S0320F 7115 |
| ANSI Code | CCGW2(1.5)2S0320F 7115 |
| Catalog Number | 7106072 |
| Corner Radius | 0.0314 in |
| Country of Origin | PL |
| Finish | PVD-TiN Coated |
| Gross Weight Per Pack | 5.2900 lb |
| Included Angle | 80 ° |
| ISO Code | CCGW060208S01020F 7115 |
| Item Group | 620 |
| Relief Angle | 7 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.0937 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | F |
| Cutting Direction | Neutral |
| For Use On | Hardened Steel |
| Inscribed Circle | 1/4 in |
| Insert Size | 2(1.5)2 |
| Insert Style | CCGW |
| Manufacturer's Grade | 7115 |
| Material | Carbide |
| Material Grade | H |
| Maximum Depth of Cut | 0.4 mm |
| Rake | Positive |
| Seat Size | 06 |
| Shape | Diamond |
| PP chipbreaker - 3-step smart dot structure is applicable to a wide range of feed rates in steel finishing |
| Smooth taper cutting edge reduces cutting forces |
| PV720 grade MEGACOAT nano efficient machining with high quality surface finishes and superior wear and adhesion resistance |
| Recommended cermet for stable steel machining and high quality surface finish |
| 20 life cycle state |
