Sandvik Coromant

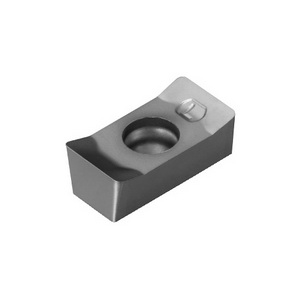

Sandvik Coromant 7101031 CoroMill® 331 Milling Insert, N331.1A-05 45 08H-WL1130 ANSI, L-Rectangle, N331.1A-05 45 08H-WL1130 ISO
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 7101031 CoroMill® 331 Milling Insert, N331.1A-05 45 08H-WL1130 ANSI, L-Rectangle, N331.1A-05 45 08H-WL1130 ISO
SKU1244375
MFGR #7101031
$/ea
Sandvik Coromant Milling Insert, Series: CoroMill® 331, L-Rectangle, 0.175 in Thickness, 0.374 in Width, WL Chipbreaker, 0.031 in Corner Radius, 0 deg Lead Angle, Manufacturer's Grade: 1130, ANSI Code: N331.1A-05 45 08H-WL1130, ISO Code: N331.1A-05 45 08H-WL1130, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P/S
Sandvik Coromant Milling Insert, Series: CoroMill® 331, L-Rectangle, 0.175 in Thickness, 0.374 in Width, WL Chipbreaker, 0.031 in Corner Radius, 0 deg Lead Angle, Manufacturer's Grade: 1130, ANSI Code: N331.1A-05 45 08H-WL1130, ISO Code: N331.1A-05 45 08H-WL1130, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P/S
Alternate Catalog Number N331.1A-05 45 08H-WL1130 ANSI Code N331.1A-05 45 08H-WL1130 Catalog Number 7101031 Corner Radius 0.031 in Country of Origin JP Finish PVD-AlTiCrN Coated Gross Weight Per Pack 8.4000 lb Hand of Insert Neutral ISO Code N331.1A-05 45 08H-WL1130 Item Group 350 Lead Angle 90 ° Length 0.256 in Material Application Steel, Stainless Steel and Heat Resistant Super Alloys Series CoroMill® 331 Thickness 0.175 in Width 0.374 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WL Inscribed Circle 0.256 in Insert Size 54508 Insert Style N331.1A..H-WL Manufacturer's Grade 1130 Material Carbide Material Grade M, P, S Rake Neutral Shape Rectangle H - Highest edge sharpness and higher precision 90 deg major cutting edge 0.224 in L effective cutting edge 0.047 in L wiper edge 0.003 to 0.009 in cutting feed 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | N331.1A-05 45 08H-WL1130 |
| ANSI Code | N331.1A-05 45 08H-WL1130 |
| Catalog Number | 7101031 |
| Corner Radius | 0.031 in |
| Country of Origin | JP |
| Finish | PVD-AlTiCrN Coated |
| Gross Weight Per Pack | 8.4000 lb |
| Hand of Insert | Neutral |
| ISO Code | N331.1A-05 45 08H-WL1130 |
| Item Group | 350 |
| Lead Angle | 90 ° |
| Length | 0.256 in |
| Material Application | Steel, Stainless Steel and Heat Resistant Super Alloys |
| Series | CoroMill® 331 |
| Thickness | 0.175 in |
| Width | 0.374 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WL |
| Inscribed Circle | 0.256 in |
| Insert Size | 54508 |
| Insert Style | N331.1A..H-WL |
| Manufacturer's Grade | 1130 |
| Material | Carbide |
| Material Grade | M, P, S |
| Rake | Neutral |
| Shape | Rectangle |
| H - Highest edge sharpness and higher precision |
| 90 deg major cutting edge |
| 0.224 in L effective cutting edge |
| 0.047 in L wiper edge |
| 0.003 to 0.009 in cutting feed |
| 20 life cycle state |
