Sandvik Coromant 7082545 CoroMill® 415 Face Milling Cutter, 0.417 to 0.75 in Cutting, 0.728 in Shank, 1.26 in OAL, 0.118 in Max Depth of Cut

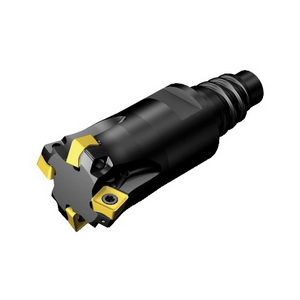

Custom_Product_Images_Illustration
Sandvik Coromant 7082545 CoroMill® 415 Face Milling Cutter, 0.417 to 0.75 in Cutting, 0.728 in Shank, 1.26 in OAL, 0.118 in Max Depth of Cut
SKU1244602
MFGR #7082545
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 415, 0.417 to 0.75 in Cutting Dia, 1.26 in Overall Length, 0.118 in Maximum Depth of Cut, 1.26 in Head Length, 0.728 in Shank Dia, Coromant EH Shank, Right Hand Cutting, 15 deg Cutting Angle, ANSI Code: A415-19EH20-05H, ISO Code: A415-19EH20-05H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 415, 0.417 to 0.75 in Cutting Dia, 1.26 in Overall Length, 0.118 in Maximum Depth of Cut, 1.26 in Head Length, 0.728 in Shank Dia, Coromant EH Shank, Right Hand Cutting, 15 deg Cutting Angle, ANSI Code: A415-19EH20-05H, ISO Code: A415-19EH20-05H, Steel
Alternate Catalog Number A415-19EH20-05H ANSI Code A415-19EH20-05H Catalog Number 7082545 Country of Origin US Gross Weight Per Pack 0.4000 lb Head Length 1.26 in ISO Code A415-19EH20-05H Item Group 450 Material Steel Series CoroMill® 415 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 0.7283 in Cutting Angle 15 ° Cutting Diameter 0.417 to 0.75 in Cutting Direction Right Hand Maximum Depth of Cut 0.118 in Overall Length 1.26 in Shank Diameter 0.7283 in Shank Type Coromant EH Through Coolant Yes Axial concentric coolant entry CoroMill 415 size 0502 cutting item interface identifiers E20 machine side adaptive interface 0.62 deg ramping Axial concentric coolant entry 0.443 ft-lb torque CoroMill 415 size 0502 cutting item interface identifiers 4 Peripheral effective cutting edge 0.512 in L body 0.593 in Dia body E20 machine side adaptive interface 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A415-19EH20-05H |
| ANSI Code | A415-19EH20-05H |
| Catalog Number | 7082545 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.4000 lb |
| Head Length | 1.26 in |
| ISO Code | A415-19EH20-05H |
| Item Group | 450 |
| Material | Steel |
| Series | CoroMill® 415 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 0.7283 in |
| Cutting Angle | 15 ° |
| Cutting Diameter | 0.417 to 0.75 in |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut | 0.118 in |
| Overall Length | 1.26 in |
| Shank Diameter | 0.7283 in |
| Shank Type | Coromant EH |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| CoroMill 415 size 0502 cutting item interface identifiers |
| E20 machine side adaptive interface |
| 0.62 deg ramping |
| Axial concentric coolant entry |
| 0.443 ft-lb torque |
| CoroMill 415 size 0502 cutting item interface identifiers |
| 4 Peripheral effective cutting edge |
| 0.512 in L body |
| 0.593 in Dia body |
| E20 machine side adaptive interface |
| 20 life cycle state |
