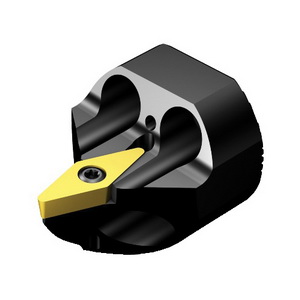

Sandvik Coromant 7079653 CoroTurn® 107 SL Screw Mount, 25A, 1.1811 in Bore, Left Hand, VCMT Insert
Custom_Product_Images_Illustration
Sandvik Coromant 7079653 CoroTurn® 107 SL Screw Mount, 25A, 1.1811 in Bore, Left Hand, VCMT Insert
SKU1244709
MFGR #7079653
$/ea
CoroTurn® 107 is the First Choice for external and internal machining of small, long, and slender components. Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component. Geometries designed for high-pressure coolant is also available.
CoroTurn® 107 is the First Choice for external and internal machining of small, long, and slender components. Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component. Geometries designed for high-pressure coolant is also available.
Alternate Catalog Number SL-SVXCR-25A-11-030 Bore Diameter 1.1811 in Catalog Number 7079653 Country of Origin DE Gross Weight Per Pack 0.1200 lb Item Group 560 Series CoroTurn® 107 Type Screw Mount Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Head Length|Projection 1.1811 in Insert Compatibility VCMT 110304 Insert Style VCMT Material Steel Maximum Bore Depth 1.1811 in System Size 25A Screw clamping ensures stability and unobstructed chip flow Wiper geometries available for high feeds and excellent surface finish Small and slender or thin walled components Longitudinal turning, facing and profiling Applicable on H, K, M, N, P and S material grades 75 deg ramping Compatible with 820-75VC11-C5 and 820-75VC11X-C5 CoroBore® XL adjustable tool for SpiroGrooving™ 23 deg tool lead 30 mm overhang Axial concentric coolant entry Axial concentric on circle coolant exit 3 Nm torque 2.5 mm H functional 70 bar coolant 67 deg cutting edge ISO Code: SL-SVXCR-25A-11-030 ANSI Code: SL-SVXCR-25A-11-030 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SL-SVXCR-25A-11-030 |
| Bore Diameter | 1.1811 in |
| Catalog Number | 7079653 |
| Country of Origin | DE |
| Gross Weight Per Pack | 0.1200 lb |
| Item Group | 560 |
| Series | CoroTurn® 107 |
| Type | Screw Mount |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Head Length|Projection | 1.1811 in |
| Insert Compatibility | VCMT 110304 |
| Insert Style | VCMT |
| Material | Steel |
| Maximum Bore Depth | 1.1811 in |
| System Size | 25A |
| Screw clamping ensures stability and unobstructed chip flow |
| Wiper geometries available for high feeds and excellent surface finish |
| Small and slender or thin walled components |
| Longitudinal turning, facing and profiling |
| Applicable on H, K, M, N, P and S material grades |
| 75 deg ramping |
| Compatible with 820-75VC11-C5 and 820-75VC11X-C5 CoroBore® XL adjustable tool for SpiroGrooving™ |
| 23 deg tool lead |
| 30 mm overhang |
| Axial concentric coolant entry |
| Axial concentric on circle coolant exit |
| 3 Nm torque |
| 2.5 mm H functional |
| 70 bar coolant |
| 67 deg cutting edge |
| ISO Code: SL-SVXCR-25A-11-030 |
| ANSI Code: SL-SVXCR-25A-11-030 |
| 20 life cycle state |
