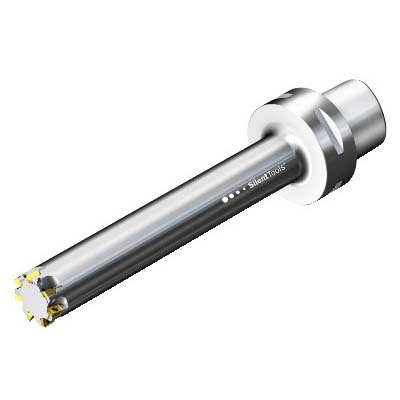

Sandvik Coromant 7002101 CoroMill® 390 Damped Square Shoulder Milling Cutter, R390..CxD Insert, 0.7874 in Cutting, Right Hand, 0.394 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 7002101 CoroMill® 390 Damped Square Shoulder Milling Cutter, R390..CxD Insert, 0.7874 in Cutting, Right Hand, 0.394 in Max Depth of Cut
SKU1243937
MFGR #7002101
$/ea
Sandvik Coromant Shoulder Milling Cutter, Damped Square, Series: CoroMill® 390, 0.7874 in Cutting Dia, 7.2834 in Overall Length, 0.394 in Maximum Depth of Cut, R390..CxD Insert, 2 Inserts, Insert Compatibility: R390-11, 2.4803 in Shank Dia, Right Hand Cutting, ANSI Code: R390-020C6D-11L147, ISO Code: R390-020C6D-11L147, Steel
Sandvik Coromant Shoulder Milling Cutter, Damped Square, Series: CoroMill® 390, 0.7874 in Cutting Dia, 7.2834 in Overall Length, 0.394 in Maximum Depth of Cut, R390..CxD Insert, 2 Inserts, Insert Compatibility: R390-11, 2.4803 in Shank Dia, Right Hand Cutting, ANSI Code: R390-020C6D-11L147, ISO Code: R390-020C6D-11L147, Steel
Alternate Catalog Number R390-020C6D-11L147 ANSI Code R390-020C6D-11L147 Catalog Number 7002101 Country of Origin NO Gross Weight Per Pack 2.7300 lb ISO Code R390-020C6D-11L147 Item Group 440 Lead Angle 90 ° Material Steel Series CoroMill® 390 Type Damped Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 0.7874 in Cutting Direction Right Hand Insert Compatibility R390-11 Insert Style R390..CxD Maximum Depth of Cut 0.394 in Number of Inserts 2 Overall Length 7.2834 in Shank Diameter 2.4803 in Through Coolant Yes 1 mm D plunge Axial concentric and radial coolant entry 70 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 20 mm Dia maximum cutting 90 deg cutting edge 120 mm L usable 147 mm overhang 5.5 deg maximum ramping 20000 r/min 1.2 Nm torque 10 life cycle state 1 maximum working engagement ratio Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-020C6D-11L147 |
| ANSI Code | R390-020C6D-11L147 |
| Catalog Number | 7002101 |
| Country of Origin | NO |
| Gross Weight Per Pack | 2.7300 lb |
| ISO Code | R390-020C6D-11L147 |
| Item Group | 440 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 390 |
| Type | Damped |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 0.7874 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R390-11 |
| Insert Style | R390..CxD |
| Maximum Depth of Cut | 0.394 in |
| Number of Inserts | 2 |
| Overall Length | 7.2834 in |
| Shank Diameter | 2.4803 in |
| Through Coolant | Yes |
| 1 mm D plunge |
| Axial concentric and radial coolant entry |
| 70 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 20 mm Dia maximum cutting |
| 90 deg cutting edge |
| 120 mm L usable |
| 147 mm overhang |
| 5.5 deg maximum ramping |
| 20000 r/min |
| 1.2 Nm torque |
| 10 life cycle state |
| 1 maximum working engagement ratio |
| Bolt and segment clamping adaptive interface |
