Sandvik Coromant

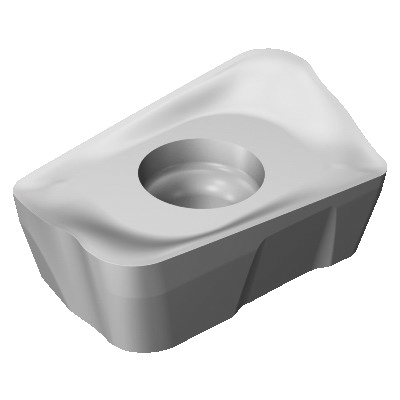

Sandvik Coromant 6971879 CoroMill® 390 Milling Insert, R390-18 06 64H-PL 1130, R390-18..H-PL Insert, Carbide, 1130, R390-18 06 64H-PL 1130
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6971879 CoroMill® 390 Milling Insert, R390-18 06 64H-PL 1130, R390-18..H-PL Insert, Carbide, 1130, R390-18 06 64H-PL 1130
SKU1243908
MFGR #6971879
$/ea
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-18..H-PL Insert, 0.2492 in Thickness, 0.433 in Width, 0.7263 in Length, PL Chipbreaker, 0.252 in Corner Radius, 0.1633 in Hole Dia, Manufacturer's Grade: 1130, ANSI Code: R390-18 06 64H-PL 1130, ISO Code: R390-18 06 64H-PL 1130, Right Hand, Carbide, PVD Coated, Material Grade: M/P
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-18..H-PL Insert, 0.2492 in Thickness, 0.433 in Width, 0.7263 in Length, PL Chipbreaker, 0.252 in Corner Radius, 0.1633 in Hole Dia, Manufacturer's Grade: 1130, ANSI Code: R390-18 06 64H-PL 1130, ISO Code: R390-18 06 64H-PL 1130, Right Hand, Carbide, PVD Coated, Material Grade: M/P
Alternate Catalog Number R390-18 06 64H-PL 1130 ANSI Code R390-18 06 64H-PL 1130 Catalog Number 6971879 Corner Radius 0.252 in Country of Origin SE Finish PVD-AlTiCrN Coated Gross Weight Per Pack 0.2500 lb Hand of Insert Right Hole Diameter 0.163 in ISO Code R390-18 06 64H-PL 1130 Item Group 350 Lead Angle 90 ° Length 0.726 in Material Application Steel and Stainless Steel Series CoroMill® 390 Thickness 0.249 in Width 0.433 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PL Inscribed Circle 0.433 in Insert Size 180664 Insert Style R390-18..H-PL Manufacturer's Grade 1130 Material Carbide Material Grade M, P Rake Positive Shape Rectangle 40 - 60 deg countersunk hole and non-flat surface clamping interface 11 deg clearance 16 mm D cutting 1 mm L wiper edge 90 deg major cutting edge 15.4 mm L effective cutting edge 1-side cutting 10 life cycle state 2 corner E cutting edge condition 2 cutting edge 0.05 - 0.22 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-18 06 64H-PL 1130 |
| ANSI Code | R390-18 06 64H-PL 1130 |
| Catalog Number | 6971879 |
| Corner Radius | 0.252 in |
| Country of Origin | SE |
| Finish | PVD-AlTiCrN Coated |
| Gross Weight Per Pack | 0.2500 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.163 in |
| ISO Code | R390-18 06 64H-PL 1130 |
| Item Group | 350 |
| Lead Angle | 90 ° |
| Length | 0.726 in |
| Material Application | Steel and Stainless Steel |
| Series | CoroMill® 390 |
| Thickness | 0.249 in |
| Width | 0.433 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PL |
| Inscribed Circle | 0.433 in |
| Insert Size | 180664 |
| Insert Style | R390-18..H-PL |
| Manufacturer's Grade | 1130 |
| Material | Carbide |
| Material Grade | M, P |
| Rake | Positive |
| Shape | Rectangle |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 16 mm D cutting |
| 1 mm L wiper edge |
| 90 deg major cutting edge |
| 15.4 mm L effective cutting edge |
| 1-side cutting |
| 10 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| 0.05 - 0.22 mm/r cutting feed |
