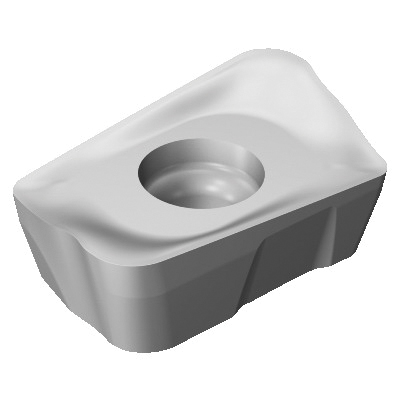

Sandvik Coromant 6971867 CoroMill® 390 Milling Insert, R390-18 06 16M-PM 1130, R390-18..M-PM Insert, Carbide, 1130, R390-18 06 16M-PM 1130
R390 Milling Inserts
1037854
MFG #: 6971867
Sandvik Coromant
27.65000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-18..M-PM Insert, 0.2492 in Thickness, 0.433 in Width, 0.7263 in Length, PM Chipbreaker, 0.063 in Corner Radius, 0.1633 in Hole Dia, Manufacturer's Grade: 1130, ANSI Code: R390-18 06 16M-PM 1130, ISO Code: R390-18 06 16M-PM 1130, Right Hand, Carbide, PVD Coated, Material Grade: M/P
- Features
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 16 mm D cutting |
| 1.1 mm L wiper edge |
| 90 deg major cutting edge |
| 15.4 mm L effective cutting edge |
| 1-side cutting |
| 10 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| 0.08 - 0.3 mm/r cutting feed |
