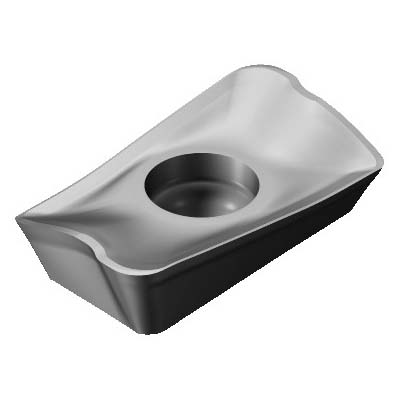

Sandvik Coromant 6971850 CoroMill® 390 Milling Insert, R390-17 04 08M-PM 1130, R390..M-PM Insert, Carbide, 1130, R390-17 04 08M-PM 1130

R390
963211 MFG #: 6971850
Sandvik Coromant
19.72000 / ea
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..M-PM Insert, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, PM Chipbreaker, 0.031 in Corner Radius, 0.1614 in Hole Dia, Manufacturer's Grade: 1130, ANSI Code: R390-17 04 08M-PM 1130, ISO Code: R390-17 04 08M-PM 1130, Right Hand, Carbide, PVD Coated, Material Grade: M/P
QTY
  • Applications
  • Features
Shoulder Milling, Repeated Shoulder Milling, Turn Milling, Deep Shoulder Milling, Edging, Pocketing, Linear and Helical Ramping
40 - 60 deg countersunk hole and non-flat surface clamping interface
19 deg clearance
16 mm D cutting
1.5 mm L wiper edge
90 deg major cutting edge
15.7 mm L effective cutting edge
1-side cutting
10 life cycle state
2 corner
E cutting edge condition
2 cutting edge
0.1 - 0.25 mm/r cutting feed
